Summary of Contents for Ocean Way Audio S12A MKIII
- Page 1 Manual of Operations Ocean Way Audio S12A MKIII...
- Page 2 Contents 1) S12A MKIII Description 2) Safety Instructions and Warnings! (please read carefully) 3) Inputs and Controls 4) Specifications 5) Warranty...

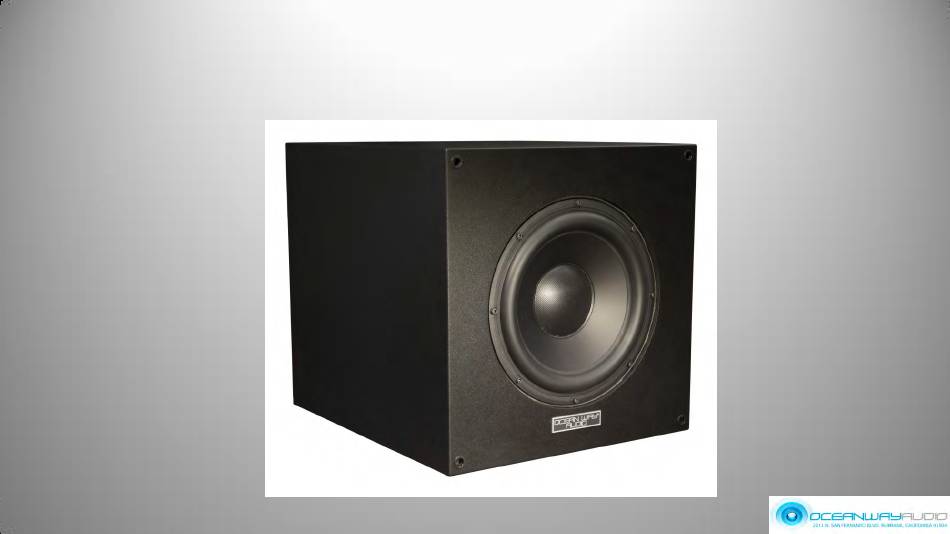

- Page 3 1) S12A MKIII Sub Description S12A sub-bass cabinets is a single 12” long throw woofer in a bass reflex cabinet extending the response down to 25Hz. It is powered by an 800 watt amplifier. Ideal to pair with any of our loudspeakers to achieve great SPL and low end extension.
-
Page 4: Safety Instructions And Warnings
2) Safety Instructions and Warnings Read the information for use Please keep this user manual in a safe place during the lifetime of the product. Heed all warnings. Follow all instructions. Do not use this product near water (for example, in damp rooms or near a swimming pool). ... - Page 5 Servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. The amplifier may only be opened by qualified personnel. Please refer to your dealer/distributor. Servicing and Replacement Parts All service and repair work must be carried out by an authorized dealer/distributor.
- Page 6 Power -Cord Protection Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon them or against them, paying particular attention to cords and plugs, and the point where they exit from the Amplifier Unit.
- Page 7 Connecting When you connect this speaker to other equipment, turn off the power and unplug all of the equipment from the supply source. Failure to do so may cause an electric shock and serious personal injury. Read the user's manual of the other equipment carefully and follow the instructions when making the connections.
- Page 8 3) Inputs and Controls S12A MKIII...
- Page 9 Inputs and Controls S12A MKIII The Power Switch (toggle) has three positions. 1.) In the left most position the unit is powered OFF. 2.) In the center position the unit is in Auto mode. It can be powered on uniting the 12V trigger inputs or by feeding audio into the input XLR.
- Page 10 Inputs and Controls S12A MKIII GAIN is the volume control. A suggested starting position is 12 o’clock when matched with HR5 speakers. Adjust up or down to suit positioning in your room. (Closer to a wall or a corner on the floor will increase the low frequency response.
- Page 11 4) S12A MKIII Specifications Tech Specs S12A MKIII Powered Driver Configuration Single 12” Woofer LF Driver Size 12" LF Driver Power Amp 800w/D Analog Inputs Balanced Frequency Range 25Hz>150Hz Maximum Peak SPL 110db Enclosure Type Ported Height 18" Width 18"...
-
Page 12: Warranty
5) Warranty Ocean Way Audio speakers are under limited warranty as described in the following conditions. Warranty period starts as of date of purchase from the authorized dealer. OWA reserves the right to request original purchase receipt as proof of the date of purchase. - Page 13 Ocean Way Audio History...
- Page 14 About Ocean Way It all started with speakers. Ocean Way Recording began in 1968, as a showcase for Allen’s custom monitors. Allen needed impressive sounding material for his speakers so he began to record music that sounded dramatic! The studio business boomed and he met the demand with many rooms in several locations.
- Page 15 Through-out the history of Ocean Way Studios, we built the monitor systems for all the control rooms and private studios for selected elite cliental. These many accomplishments, paved the way for Ocean Way Audio HR Series delivers “the” sound of Ocean Way Studios in a free standing design.
