Summary of Contents for MJ LED LIGHTNING MJ-1019-4IN1

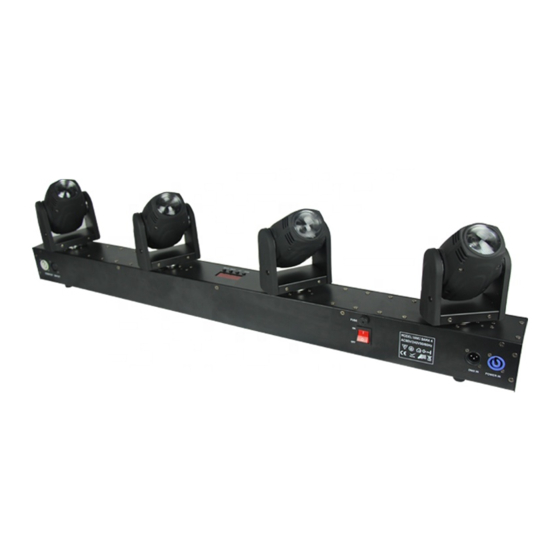

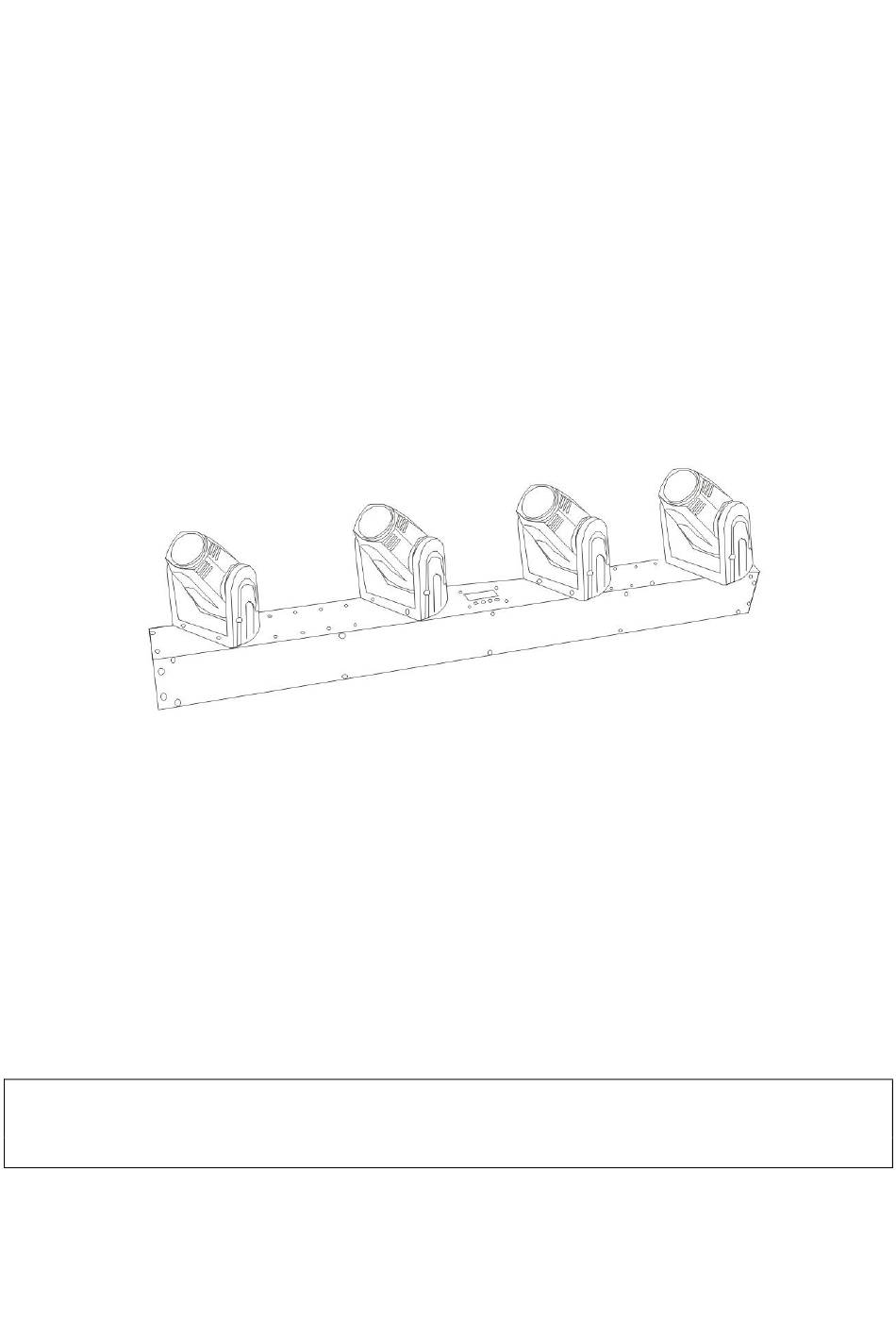

- Page 1 4-BEAM MOVING HEAD SYSTEM MJ-1019-4IN1 INSTRUCTION MANUAL PROFESSIONAL LED LIGHTING ====== ======== Thank you for choosing our LED beam moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for future...
-
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product -----------------------------------------------------------------------------------------3 Install The Equipment ------------------------------------------------------------------------------------------------4 Power Code Connection ---------------------------------------------------------------------------------------------4 DMX Connection ------------------------------------------------------------------------------------------------------5 DMX Terminator -------------------------------------------------------------------------------------------------------6 Function Set --------------------------------------------------------------------------------------------------------------6 Menu Function Description ----------------------------------------------------------------------------------------------6 Maintenance -------------------------------------------------------------------------------------------------------------7 Keeping The Product Clean -----------------------------------------------------------------------------------------7 Trouble Shooting --------------------------------------------------------------------------------------------------------7 Equipment and Appendix ---------------------------------------------------------------------------------------------8 Channel List... -
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20. -
Page 4: Install The Equipment
Install The Equipment: Use 2pcs clamp (need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm the light which you fixed is strong enough for hanging the light. -
Page 5: Dmx Connection
DMX Connection: Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and sockets. -
Page 6: Dmx Terminator
DMX Terminator: In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Maintenance
Down and up button change jump speed FF00 Colorful Running（01—99） Down and up button change speed BEB1 Colorful sound control __1 ID00 DMX512 ID， （00—51） When the ID=0 the ID off When press Enter key,Down and UP key can modify DMX 512 ID value.When ID started,each time of start this light will display ID value in 5 secnods FROM Slave Mode... -
Page 8: Equipment And Appendix
Equipment and Appendix: The packing list of this light as follows: ☆ Led moving head light 1pcs ☆ Power Cable 1pcs ☆ XLR connector 1unit ☆ Light Hook 2pcs ☆ The Product of Instruction 1pcs Channel List: 6Channel Channel Function Function Description rotation Tilt... - Page 9 CH14 W3dimming W3 dimming from dark to bright CH15 R4 dimming R4 dimming from dark to bright CH16 G4 dimming G4 dimming from dark to bright CH17 B4 dimming B4 dimming from dark to bright CH18 W4dimming W4 dimming from dark to bright CH19 X1 rotation CH20...
-
Page 10: Technical Parameters
Technical Parameters: Voltage: A100V-240V; 50/60Hz Power Consumption: 100W (220V) LED Bulbs: 10W*4in1 LEDs LED LED Current: 500mA LED Lifetime: 50000Hours Adjusts the light: 0-100 electron adjusts the light Strobe: 1-25/second high speed strobe Head Movement: Pan 540°, Tilt 270°, with auto position correction and electronic replacement function.
