Summary of Contents for Rockwood 31726

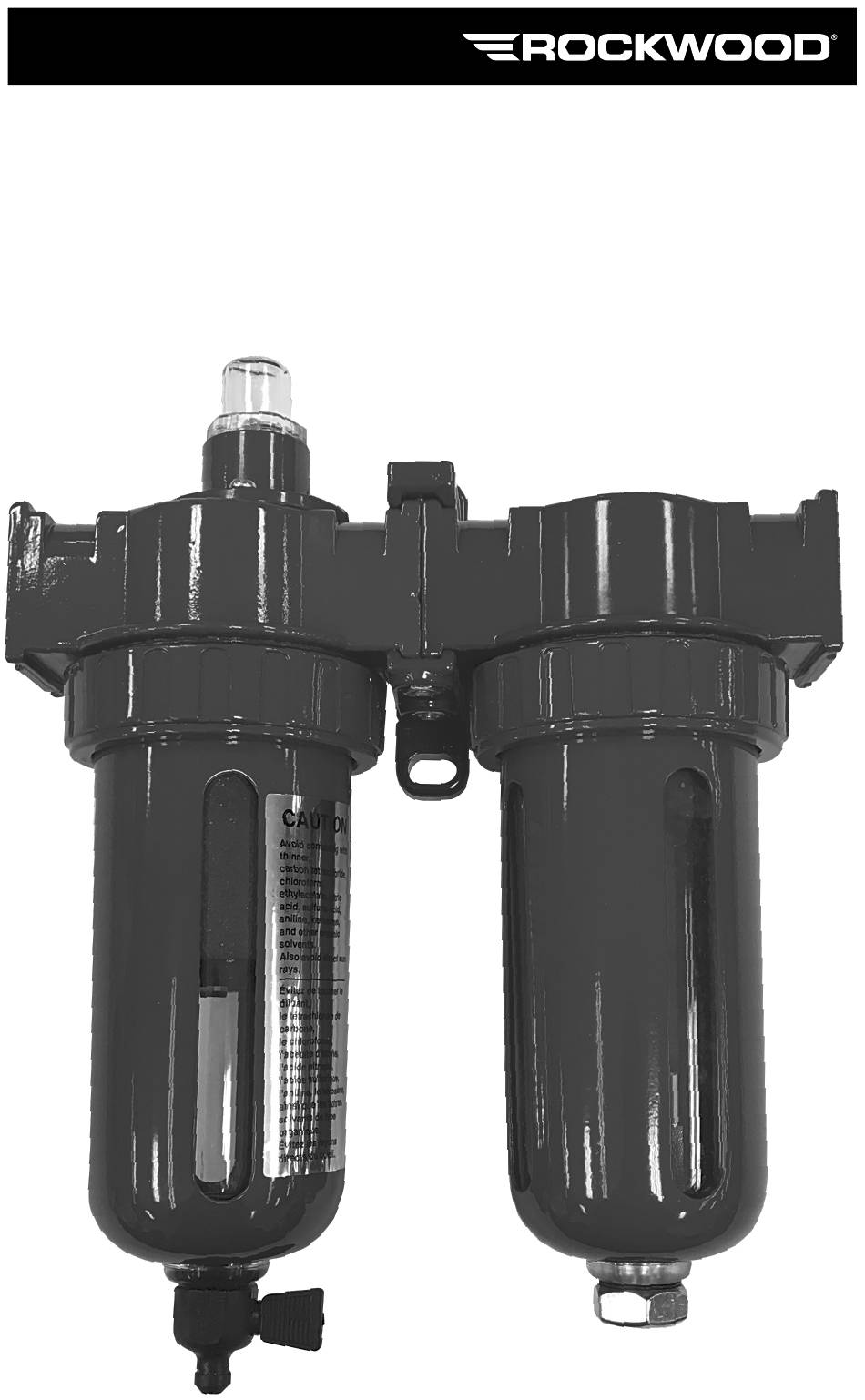

- Page 1 Item #31726 3/8" NPT, 2 STAGE AIR FILTER/DRYER SYSTEM INSTRUCTIONS...
- Page 2 THE ROCKWOOD 3/8" NPT AIR FILTER/DRYER includes a high-capacity, drainable Coalescing Filter and Bowl to trap moisture and other impurities from a compressed air supply. The Dryer section contains a replenishable pellet-type of moisture absorbing desiccant. Also included is an integral mounting bracket for secure mounting.
- Page 3 SAFETY INFORMATION The following explanations are displayed in this manual, on the labeling, and on all other information provided with this product: DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
- Page 4 • Be sure to connect outlet to a clean air hose to prevent contamination of the filtered & dried air. • Open inlet valve to pressurize system and check for leaks. For best results, install a #31733, Rockwood 3/8" NPT Coalescing Air Filter/Regulator (Not Included) after the compressor but before this Dryer/Filter.
- Page 5 REPLACE COALESCING FILTER ELEMENT: The Orange Service Indicator within the clear cap atop the Filter Housing will rise up indicating the need to change the Filter Element (Fig 1). • Drain moisture from Filter Bowl as described previously. • Rotate the Lock Ring in a Clockwise direction as viewed from the top of the Housing to loosen. •...
- Page 6 MAINTENANCE (CONTINUED) REPLACE DESICCANT: The Desiccant normally appears through the vertical windows of the Dryer Bowl Housing normally as blue pellets. When the Desiccant becomes saturated and needs replacement, it will turn pink in color. • Rotate the Lock Ring in a Clockwise direction as viewed from the top of the Housing to loosen (Fig 2).
- Page 7 NOTES To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 8 Replacement Filter Element for 3/8" NPT, 2 Stage Air Filter/Desiccant Dryer System # 31733 Rockwood 3/8" NPT Coalescing Air Filter/Regulator If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: techelp@eastwood.com PDF version of this manual is available online >>...
