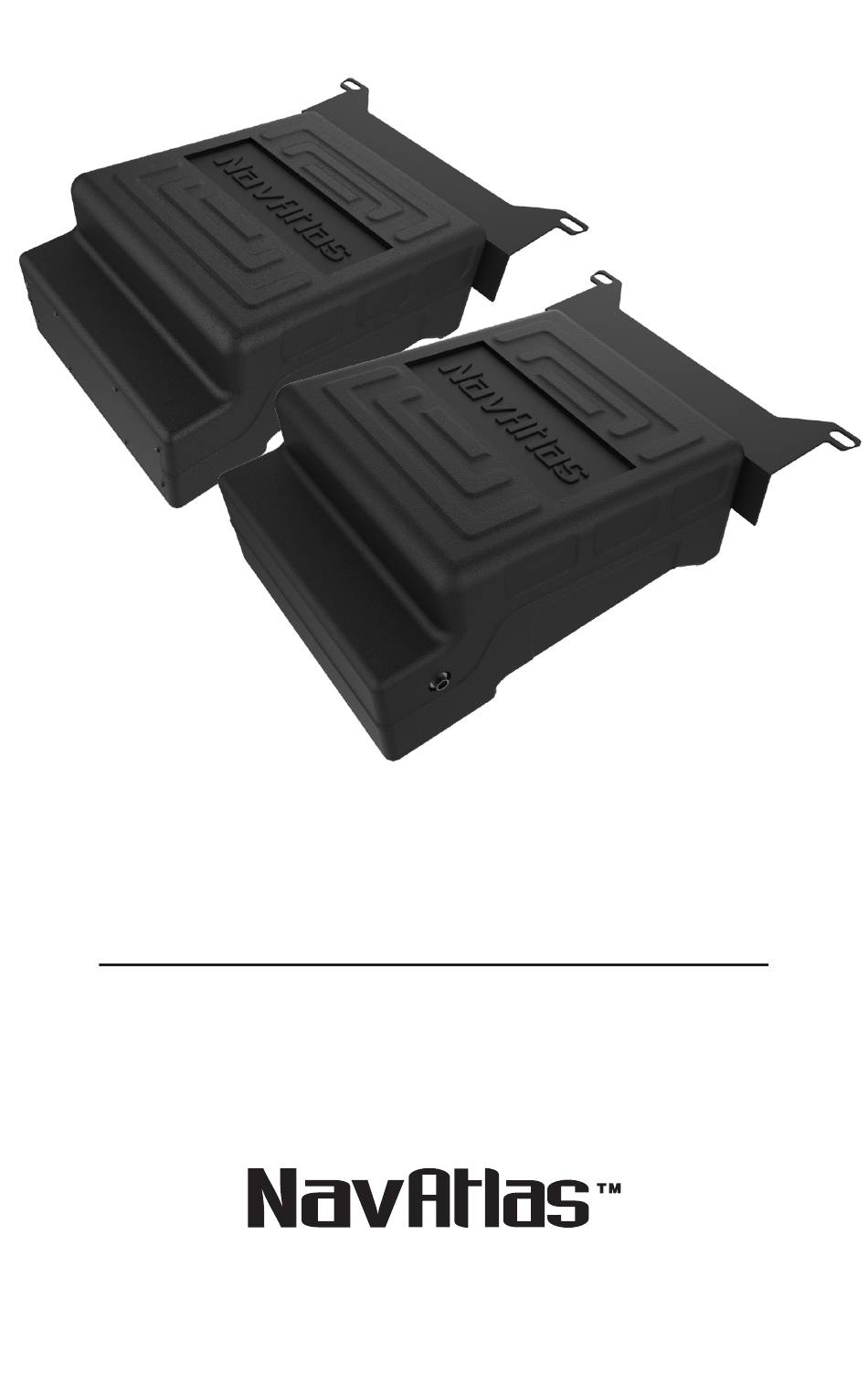

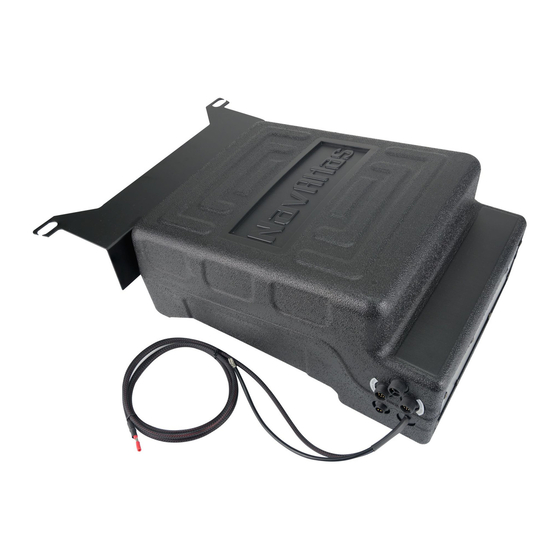

- Page 1 NX310WA NX310WP CAN-AM X3 UNDERSEAT 10” SUBWOOFER SYSTEM INSTALLATION/OWNER'S MANUAL IP66 Rated...
-
Page 2: Installation
NX310WA NX310WP INSTALLATION Preparation Please read entire manual before installation. Due to the technical nature of amplifiers, it is highly recommended that your amplifier is installed by a professional installer or an authorized dealer. Before You Start • Disconnect negative battery terminal (consult qualified technician for instructions). -
Page 3: Speaker Out
This knob will mount in your dash as a factory switch would, giving you access to control the volume output manually. INPUT/OUTPUT This woofer system can be “DAISY CHAINED” to other NavAtlas product to help simplify the installation and reduce the use of extra wiring, giving you a clean looking setup. NOTE: When adding amplifiers or amplified speakers to your vehicle, please be sure to consider ... -
Page 4: Connection Descriptions
NX310WA NX310WP INSTALLATION Connection Descriptions The information below should be used as a general guideline only. Power Wire (+12V) • Disconnect negative battery terminal before proceeding. Consult a qualified technician for instructions if you are unsure. • Plan wire routing before cutting any wires to length. Begin by routing the power +12V wire from the battery to the amplifier location. -
Page 5: Audio Inputs
NX310WA NX310WP INSTALLATION Audio Inputs DAISY CHAIN SETUP USING ANALOG SIGNAL WHEN USING ANALOG RCA FROM A RADIO, THE A2A CABLE (SOLD SEPARATELY) IS REQUIRED FOR DAISY CHAIN FUNCTION TO WORK. DXP1000/DXU1100/ AFTERMARKET RADIO NS14A/27A/35A 2 pin waterproof DIN connector 10 Feet (10GA) 8 pin waterproof... - Page 6 NX310WA NX310WP INSTALLATION EXAMPLE OF DAISY CHAIN CONFIGURATIONS FOR CAN-AM X3 VEHICLE *OPTIONAL ACCESSORIES ARE D2Y AND D2D CABLES (SOLD SEPARATELY) NA1BT/NA2BT/NA30C NA81MDVR(DIGITAL SOURCE UNITS) NS14A/27A/35A 2 pin waterproof DIN connector 10 Feet (10GA) 8 pin waterproof DIN connector 10 Feet (18GA) for sell separately 8 pin waterproof DIN connector...
- Page 7 NX310WA NX310WP INSTALLATION DAISY CHAIN CHAIN SETUP USING AFTERMARKET DXP1000/DXU1100/ AFTERMARKET RADIO AMPLIFIERS WHEN USING AFTERMARKET WITH SOUNDBARS, YOU MUST USA THE ANALOG CABLE FOR DAISY CHAIN FUNCTION TO WORK. UDA10 CABLE(SOLD SEPARATELY) IS REQUIRED FOR ANALOG AUDIO OUTPUT TO WORK IN THIS SETUP. RCA OUT TO FULL-RANGE AMPLIFIER...
-
Page 8: Limited One Year Warranty
Who is covered? This warranty is extended to the original retail purchaser for products 4. For more information and for the purchased from an authorized NavAtlas location of the nearest authorized dealer and used in the U.S.A service center please contact us by one of the following methods: What is covered? This warranty covers all... -
Page 9: Specifications
NX310WA NX310WP INSTALLATION Specifications Woofer type IMPP black (Injection molded polypropylene ) Woofer surround Rubber Woofer size 8" RMS Power 200W Peak Power 400W Sensitivity 85dB Frequency response 45Hz - 500Hz Impedance 4 Ohms Enclosure type UV-resistant ABS plastic... - Page 10 Support Line: 1-562-946-7471 9AM-5PM PST Monday-Friday www.navatlas.com All rights reserved. NSA0918-V01 Printed in China...
