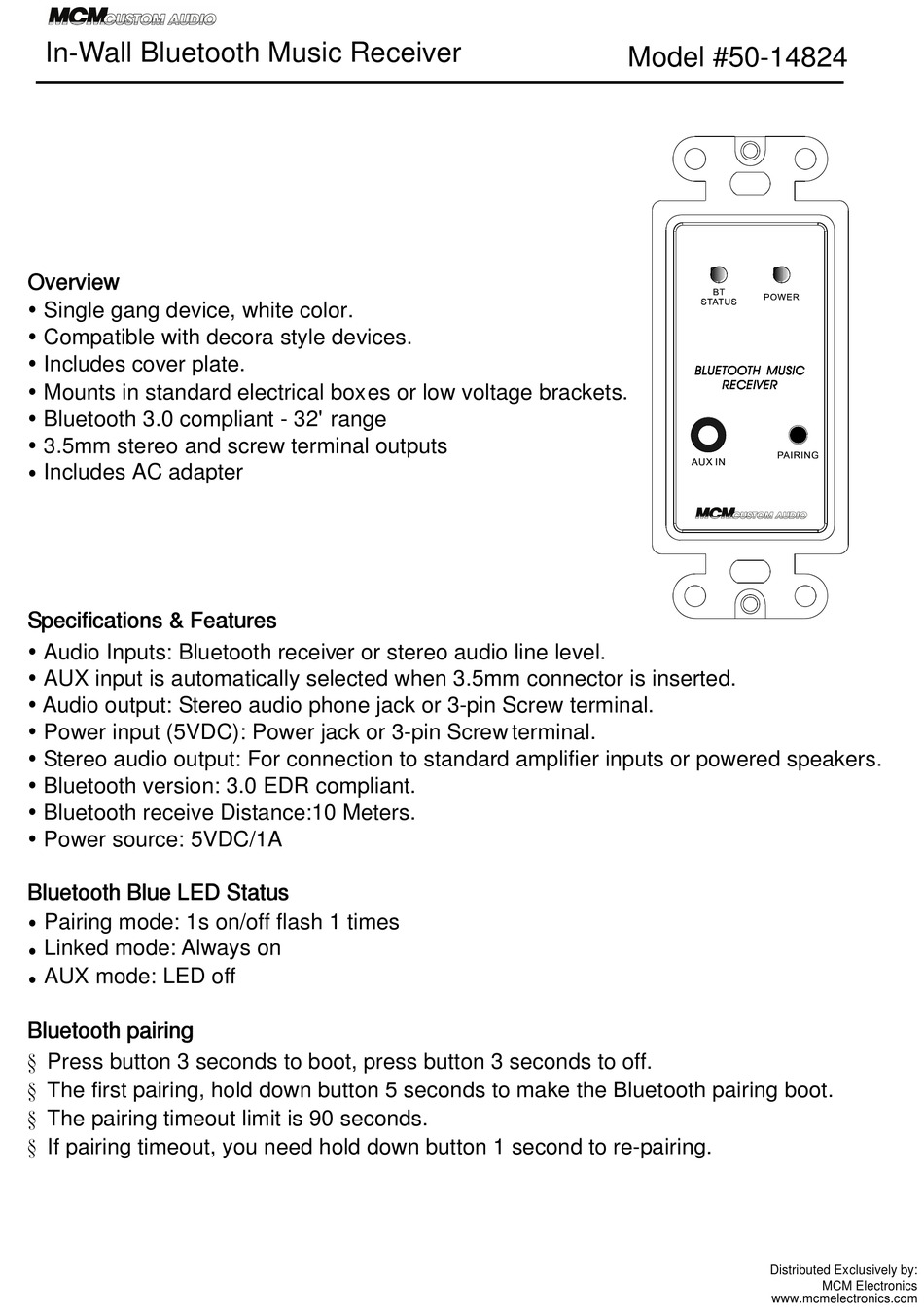

MCM Custom Audio 50-14824 Quick Manual

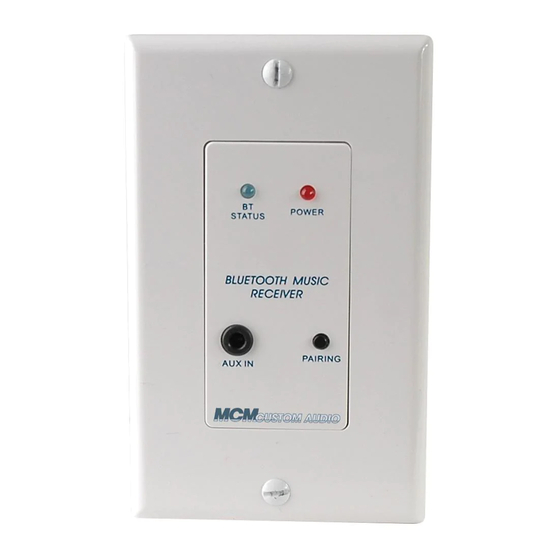

In-Wall Bluetooth Music Receiver
Model # 50-14 8 2 4

Overview

 Single gang device, white color.
 Compatible with decora style devices.
 Includes cover plate.
 Mounts in standard electrical bo x es or low voltage brackets.
 Bluetooth 3.0 compliant - 3 2 ' range
 3.5mm stereo and screw terminal outputs

Includes AC adapter
Specifications & Features
 Audio Inputs: Bluetooth receiver or stereo audio line level.
 AUX input is automatically selected when 3.5mm connector is inserted.
 Audio output: Stereo audio phone jack or 3-pin Screw terminal.
 Power input (5VDC): Power jack or 3-pin Screw terminal.
 Stereo audio output: For connection to standard amplifier inputs or powered speakers.
 Bluetooth version: 3.0 EDR compliant.
 Bluetooth receive Distance:10 Meters.
 Power source: 5VDC/1A

Bluetooth Blue LED Status

 Pairing mode: 1s on/off flash 1 times
 Linked mode: Always on
 AUX mode: LED off

Bluetooth pairing

§ Press button 3 seconds to boot, press button 3 seconds to off.
§ The first pairing, hold down button 5 seconds to make the Bluetooth pairing boot.
§ The pairing timeout limit is 90 seconds.
§ If pairing timeout, you need hold down button 1 second to re-pairing.
Distributed Ex clusively by:
MCM Electronics
www.mcmelectronics.com
