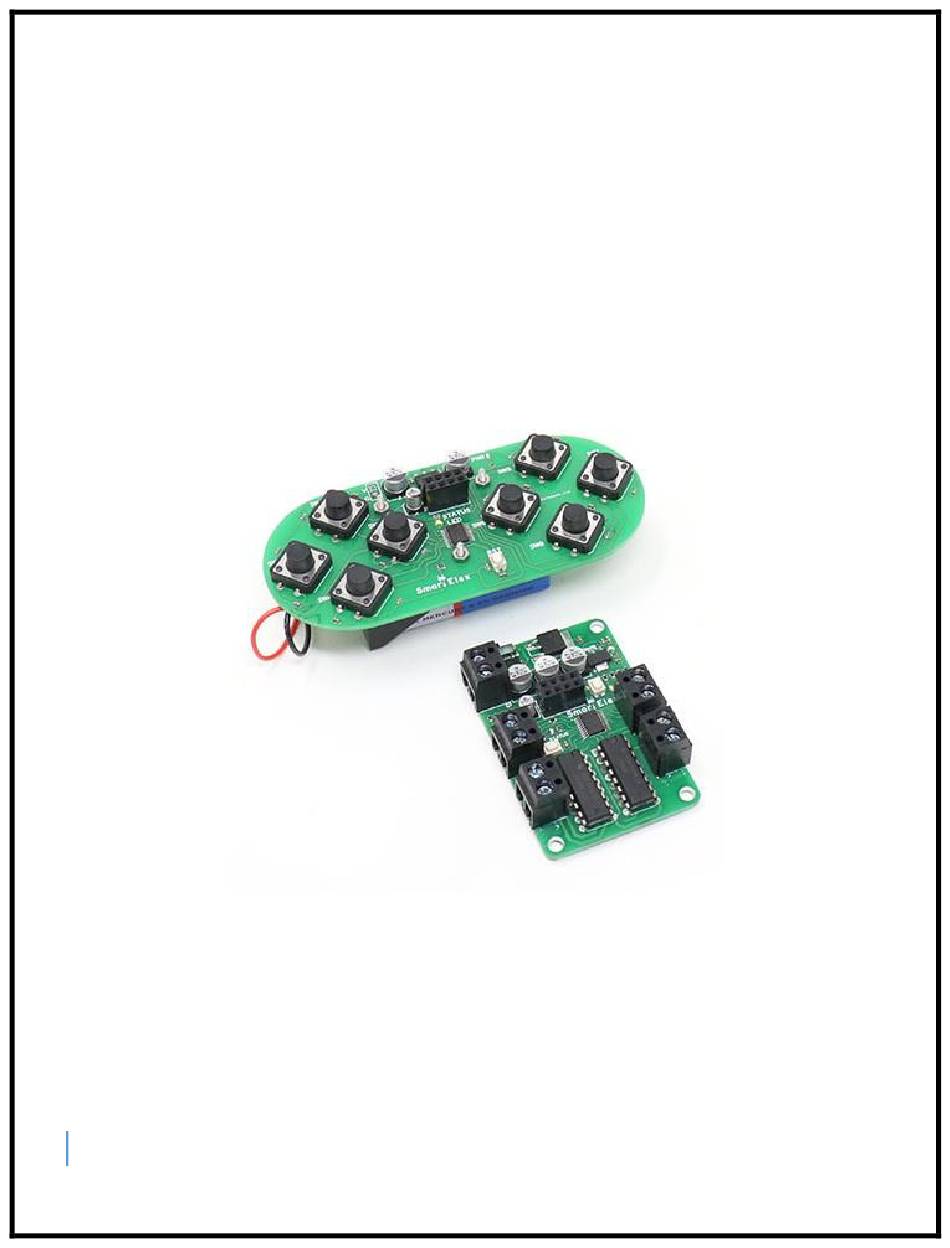

- Page 1 SmartElex Wireless Remote Control Motor Driver...
- Page 2 4 BO motors at once, both CW and CCW, and to brake electronically. The L293D H-Bridge is rated up to 1A per channel at 12V, which means it will drive a fair variety of hobby motors ranging in power.
- Page 3 1. Features & Specification 1. Recommended Input Voltage: a. Remote (Transmitter) side : - 9V battery b. Receiver(Motor driver) side : - 12Vdc 2. Maximum Current: 1 Amp Per Channel 3. No. of Channel: 4. 4. LED Indicator: a. Remote (Transmitter) side : - Power LED, Status LED. b.
- Page 4 Steps to bind Transmitter and receiver :- ON-Remote (Transmitter) side 1. First, you have to connect the NRF Module. Otherwise status LED BLINK Continuously. 2. Press switch 7(Binding Switch) and hold. 3. Then press the reset button for 5sec and release. 4.
- Page 5 ON-receiver side 1. Here Also First, you have to connect the NRF Module. Otherwise status LED BLINK Continuously. 2. Press Binding switch (S) and hold. 3. Then press the reset button for 5sec and release. 4. Now release Binding switch (S). 5.
