DEEBACH BlackBox-Y Information

Hide thumbs

Deebach information

BlackBox-Y, YEM (Yamaha Expansion Manager) software and

VCE files.

There are two cables you need to connect the BlackBox correctly to

a Yamaha instrument.

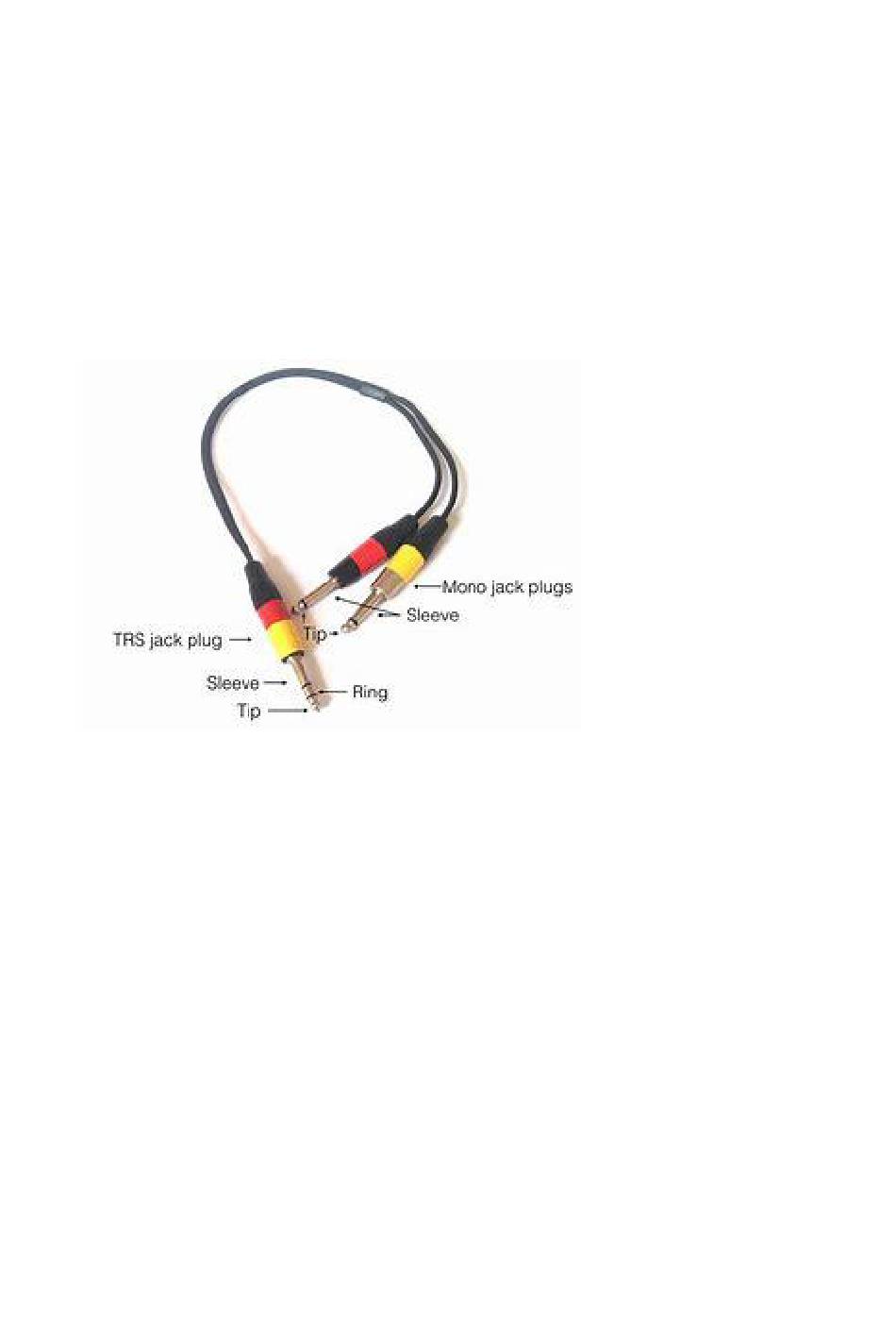

1. An audio cable, a so-called audio insert cable.

An insert cable is an audio cable that has a stereo jack plug on one

side and two mono jack plugs on the other side

(Left-right, mostly white-red).

The stereo jack plug is plugged into the AUX out of the black box,

the two mono jacks into the line-in of the Yamaha keyboard.

Depending on the Yamaha instrument, you have to set a gain

control or other volume control according to the Yamaha operating

instructions, this is instrument-specific.

With some Yamaha models, you can also set and use the internal

effects of the vocal input on the line-in, i.e. also on the black box.

(See Yamaha manual, tested with Tyros2, from Tyros5, Genos etc.

this is no longer possible)

Table of Contents

Need help?

Do you have a question about the BlackBox-Y and is the answer not in the manual?

Questions and answers

Summary of Contents for DEEBACH BlackBox-Y

Page 1 Deebach information BlackBox-Y, YEM (Yamaha Expansion Manager) software and VCE files. There are two cables you need to connect the BlackBox correctly to a Yamaha instrument. 1. An audio cable, a so-called audio insert cable. An insert cable is an audio cable that has a stereo jack plug on one side and two mono jack plugs on the other side (Left-right, mostly white-red).
Page 2 2. A midi cable. The midi cable is plugged into the midi in of the black box. There are two versions of the Yamaha instruments. If you have an instrument with a midi-out, the midi cable is connected there. Then select the individual parts to be controlled by the BlackBox in the Midi Setting Menu and save your settings.
Page 3 1. the VCE data You can download the current VCE data from our website www.deebach.eu. It is a ZIP file, you can unzip it to a USB stick, you will then get the "BlackBox-Y" folder, which contains all sound groups with their individual sounds and, depending on the Yamaha model, you can also transfer them from the USB stick to the Load the user memory of the instrument.
Page 4 sound bank with the mouse. Once you have moved the sound bank to the right place, press the X at the top right. The question then arises whether the bank should be modified and saved again. You answer that with "SAVE". Repeat this process until all the sound banks of the BlackBox are in the right place.
Page 6 Registration Memory Bank. Internal, software expansion and black box sounds can be freely mixed. Here is the link to the Yamaha YEM. https://europe.yamaha.com/en/support/updates/yem_win.html Our channels with further support and examples https://www.youtube.com/user/DeebachInstruments https://www.facebook.com/Deebach.instruments/ Email: info@deebach.eu 12.08.2020 Team Deebach...
