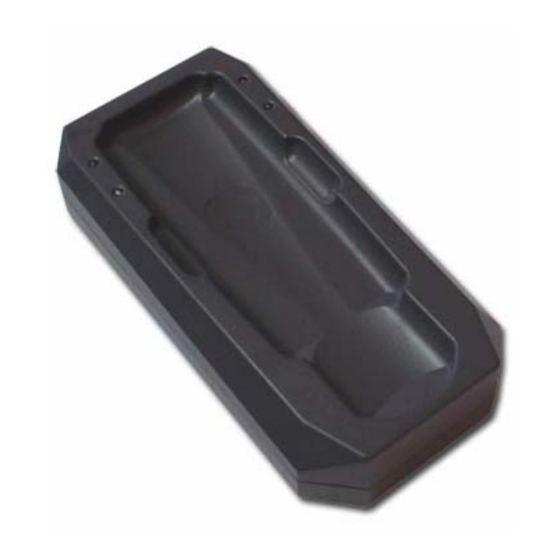

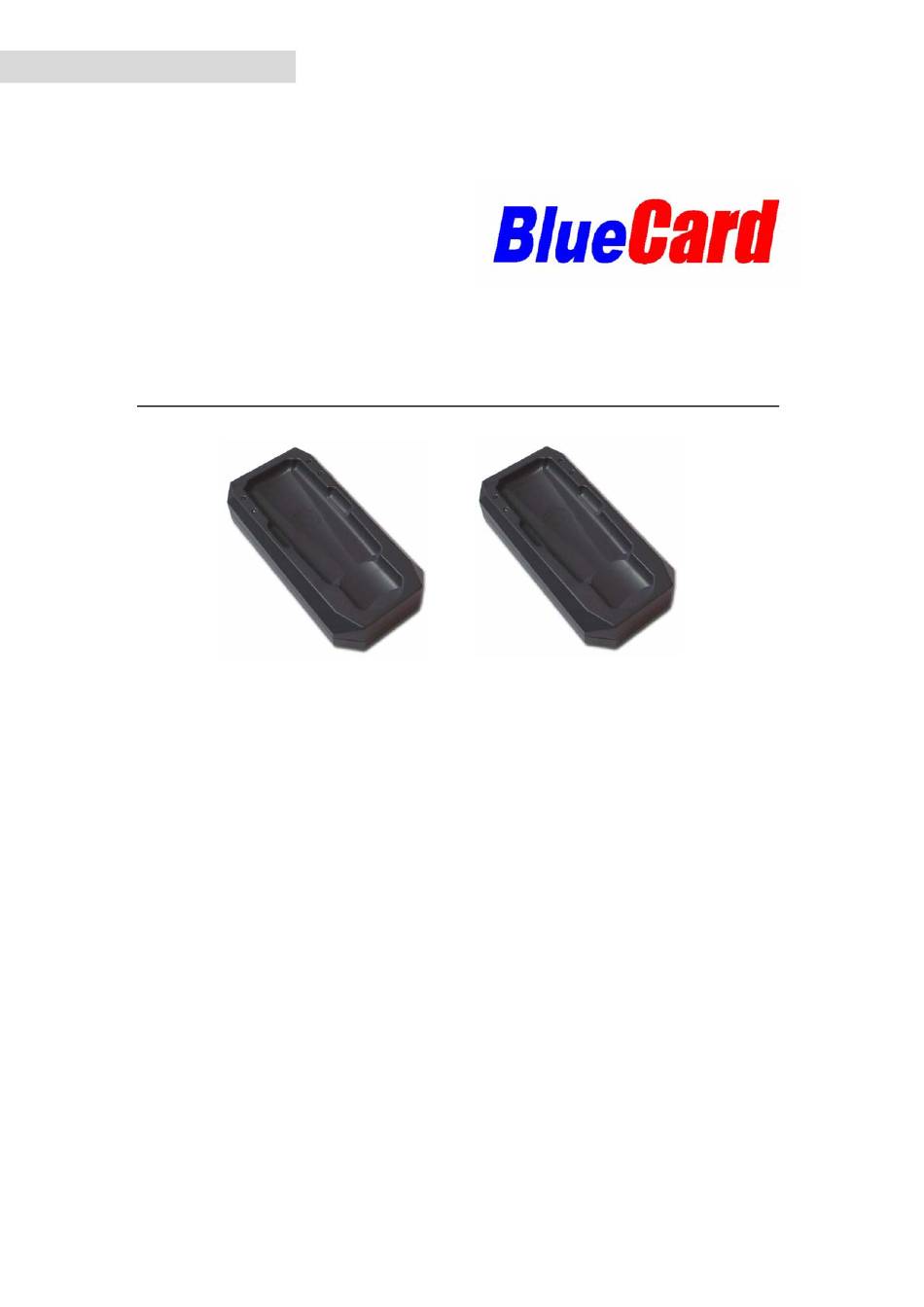

- Page 1 ENGLISH Land Phone Line Remote Communication Station Usage Manual BS-4010M BS-4010 Server Comm. Station Remote Client Comm. Station Please read this manual carefully, before starting to operate the station.
- Page 2 BS-4010 Client: Used at the remote locations to collect data from guard tour readers and upload data to BS-4010M Server located at the main office. BS-4010M Server: Installed at the main office to receive data from BS-4010 Clients. It serves as a temporary storage place for guard tour data, which can be later uploaded to the PC via a USB connection.
-
Page 3: Table Of Contents
TABLE OF CONTENT DESCRIPTION OF THE BS-4010M/BS-4010 HARDWARE............3 LED L ..........................3 TATUS IGHTS ............................3 UDIO IGNALS ............................4 OWER OURCE OPERATING INSTRUCTIONS......................4 ........................4 NSTALLING THE SOFTWARE BS-4010 C ..............4 ETTING UP THE DIAL UP NUMBER ON THE LIENT .................. -
Page 4: Description Of The Bs-4010M/Bs-4010 Hardware
Guard tour reader has been found, and the reader contains data that needs to be uploaded. Short Beep (three times consecutively) ∼ The BS-4010’s memory is full, please upload to the BS-4010m first. ∼ Phone dialing has been disabled. Long Beep (once) ∼... -
Page 5: Power Source
Operating Instructions Installing the software Install the guard tour system software Install the software provided for BS-4010/BS-4010M, which is named ‘Setup Centre Dial-up Number’. The driver for the BS-4010 has been installed when you implemented the guard tour system setup. - Page 6 Connect the BS-4010M Server to the PC via the USB cable provided. ∼ Connect the BS-4010M Server to the local land phone line, and make sure the BS-4010 Client at the remote location is also connected to remote land phone line.
-
Page 7: Collecting Data From Guard Tour Readers
Collecting data from guard tour readers Both the BS-4010 Client and the BS-4010m Server are able to collect data from guard tour readers wirelessly. Compatible readers include models BP-2002S, BP-2002F, BP-2002-W, and BP-2002B-W. Turn on the BS-4010 / BS-4010 M. -
Page 8: Troubleshooting
The BS-4010 Client is not able to dial its stored phone number. Please note that only the BS-4010 Client (not the BS-4010m Server) is able to automatically dial to upload its stored data. Please make sure that the proper version of the unit is being used. -
Page 9: Bs-4010/Bs-4010M Data Sheet
The information in this documentation is subjective to change notice and does not represent a commitment on the part of Bluecard Software Technology Co., Ltd. No part of the this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, for any purpose other than the purchaser’s personal use, without...
