Summary of Contents for Artecta LED Dim 12

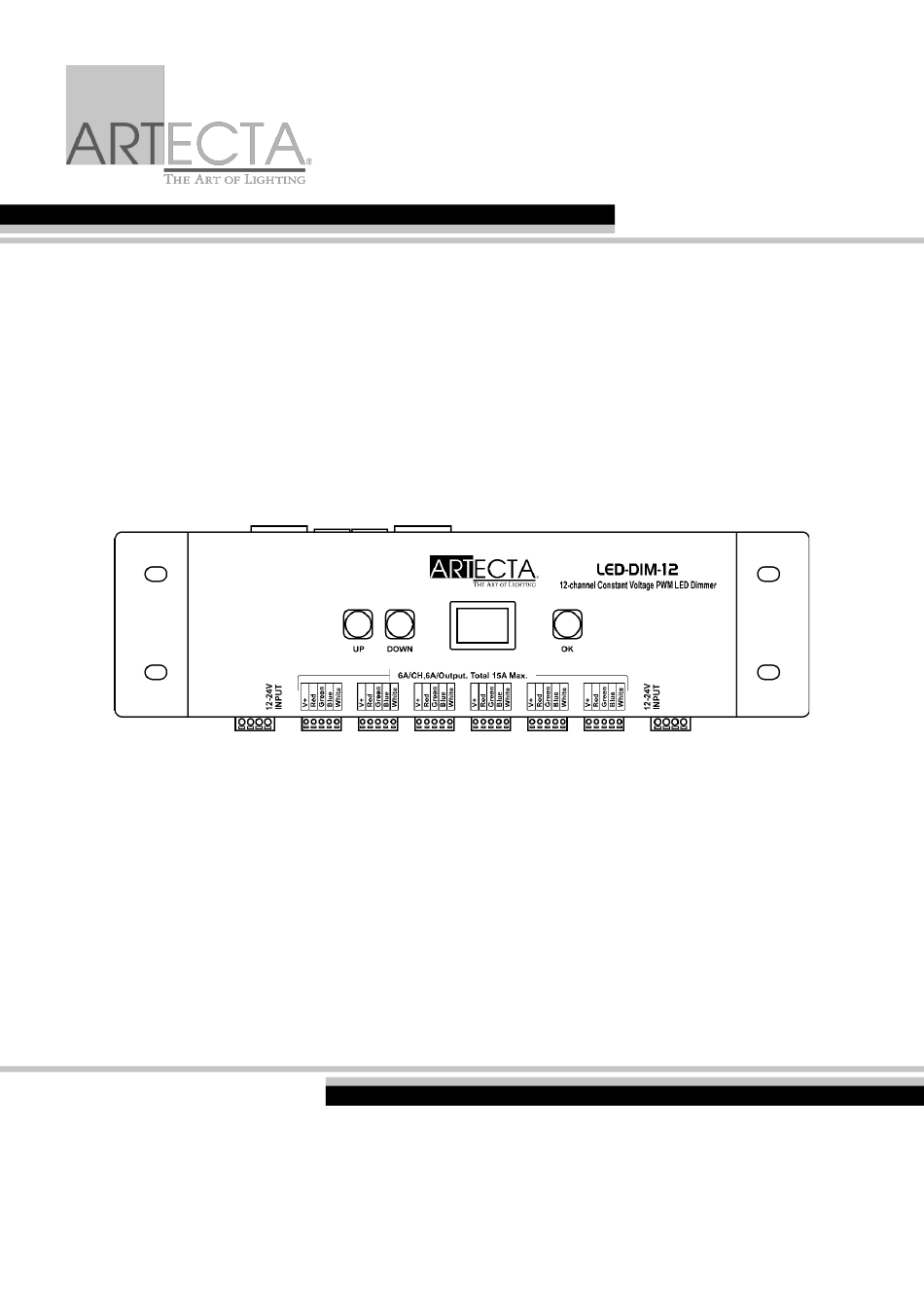

- Page 1 MANUAL ENGLISH LED Dim 12 Ordercode: A9915045 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Back ....................................6 Installation ................................... 6 Setup and Operation ................................ 6 Control Modes ................................7 Setup LED Dim 12 with Lighting Controller ......................7 Device Linking ................................8 Control Panel ................................. 8 DMX Addressing ................................8 Menu Overview ................................9 Main Menu Options ..............................11... -
Page 3: Warning
Your shipment includes: ● Artecta LED Dim 12 ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... -
Page 4: Operating Determinations
Never attempt to bypass the thermostatic switch or fuses. ● The user is responsible for correct positioning and operating of the LED Dim 12. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. -
Page 5: Connection With The Mains
LED Dim 12 Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE... -
Page 6: Description Of The Device
Description of the device The LED Dim 12 is a universal and versatile PWM dimmer which is suitable to use with constant-voltage LED strips. It has 12 outputs which all can control 4-channel strips with a working voltage within 12 V and 24 V. -
Page 7: Back
08) 3-pin DMX signal connector OUT Installation Remove all packing materials from the LED Dim 12. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 8: Control Modes
LED Dim 12 Control Modes Setup LED Dim 12 with Lighting Controller 01) Use a 3-pin XLR cable to connect the LED Dims to each other. 02) Connect a lighting controller to the first device’s "in" socket. 03) Link the devices as shown in (Fig. 03). Connect a DMX signal cable from the first device's DMX/RJ45 "out"... -
Page 9: Device Linking
LED Dim 12 Device Linking You will need a serial data link to run light shows of one or more devices using a DMX-512 controller or to run synchronized shows of two or more devices set to a master/slave operating mode. The combined number of channels required by all the devices on a serial data link determines the number of devices the data link can support. -
Page 10: Menu Overview
LED Dim 12 Menu Overview Ordercode: A9915045... - Page 11 LED Dim 12 Ordercode: A9915045...
-
Page 12: Main Menu Options
LED Dim 12 Main Menu Options 1. Mode Selection 2. Load (Color Modes) 3. Software Version 1. Mode Selection In this menu you can select the desired operation mode. 01) While in main menu, press the UP/DOWN buttons until the display shows 02) Press the OK button to enter. -
Page 13: Auto Mode
LED Dim 12 1.1. Auto Mode In this menu you can run the auto programs. 1.1.1. Pattern In this menu you can set the built-in programs. 01) Press the UP/DOWN buttons until the display shows 02) Press the OK button to open the menu. -
Page 14: Manual Mode
LED Dim 12 1.2. Manual Mode In this menu you can set the static colors. 01) Press the UP/DOWN buttons to select one of the available static colors (red, green, blue, white, warm white, cool white). Note: The availability of the static colors depends on the currently selected color mode (LOAD). -
Page 15: Dmx Mode
LED Dim 12 1.3. DMX Mode In this menu you can set the DMX settings. 1.3.1. Channel Modes In this menu you can set the desired DMX channel mode. 01) Press the UP/DOWN buttons until the display shows 02) Press the OK button to open the menu. -
Page 16: Dmx Addressing
LED Dim 12 1.3.2. DMX Addressing In this menu you can set the DMX starting address. 01) Press the UP/DOWN buttons until the display shows 02) Press the OK button to open the menu. 03) Press the UP/DOWN buttons to select the DMX starting address. The adjustment range is 001–512. -
Page 17: Dmx Channels
LED Dim 12 DMX Channels 3 channels (RGB) Channel 1 – Red (Outputs 1–12) 0–255 Gradual adjustment Red, from dark to brightest Channel 2 – Green (Outputs 1–12) 0–255 Gradual adjustment Green, from dark to brightest Channel 3 – Blue (Outputs 1–12) 0–255... -
Page 18: Channels (Rgb)
LED Dim 12 Channel 8 – Green (Outputs 5–6) 0–255 Gradual adjustment Green, from dark to brightest Channel 9 – Blue (Outputs 5–6) 0–255 Gradual adjustment Blue, from dark to brightest Channel 10 – Red (Outputs 7–8) 0–255 Gradual adjustment Red, from dark to brightest Channel 11 –... -
Page 19: Channels (Rgbw)
LED Dim 12 Channel 8 – Green (Output 3) 0–255 Gradual adjustment Green, from dark to brightest Channel 9 – Blue (Output 3) 0–255 Gradual adjustment Blue, from dark to brightest ● ● ● ● ● ● ● ● ●... -
Page 20: Channels (Rgbw)
LED Dim 12 Channel 7 – Blue (Outputs 7–12) 0–255 Gradual adjustment Blue, from dark to brightest Channel 8 – White (Outputs 7–12) 0–255 Gradual adjustment White, from dark to brightest 24 channels (RGBW) Channel 1 – Red (Outputs 1–2) 0–255... -
Page 21: Channels (Rgbw)
LED Dim 12 48 channels (RGBW) Channel 1 – Red (Output 1) 0–255 Gradual adjustment Red, from dark to brightest Channel 2 – Green (Output 1) 0–255 Gradual adjustment Green, from dark to brightest Channel 3 – Blue (Output 1) 0–255... -
Page 22: Channel (White)
LED Dim 12 1 channel (WHITE) Channel 1 – White (Outputs 1–12) 0–255 Gradual adjustment White, from dark to brightest 2 channels (WHITE) Channel 1 – White (Outputs 1–6) 0–255 Gradual adjustment White, from dark to brightest Channel 2 – White (Outputs 7–12) 0–255... -
Page 23: Channels (Ww+Cw)
LED Dim 12 2 channels (WW+CW) Channel 1 – Warm White (Outputs 1–12) 0–255 Gradual adjustment Warm White, from dark to brightest Channel 2 – Cool White (Outputs 1–12) 0–255 Gradual adjustment Cool White, from dark to brightest 4 channels (WW+CW) Channel 1 –... -
Page 24: Channels (Ww+Cw)
05) If all appears to be O.K., plug the device in again. 06) If you are unable to determine the cause of the problem, do not open the LED Dim 12, as this may damage the device and the warranty will become void. -
Page 25: No Response To Dmx
Try your DMX control again. 03) Determine whether the controller or the LED Dim 12 is at fault. Does the controller operate properly with other DMX products? If not, take the controller in for repair. If it does, take the DMX cable and the LED Dim 12 to a qualified technician. -
Page 26: Product Specifications
LED Dim 12 Product Specifications Model: Artecta LED Dim 12 Power supply: 12–24V DC Load @ 12 V: max. 6 A/channel (15 A total/180 W) Load @ 24 V: max. 6 A/channel (15 A total/360 W) Housing: Black powder-coated metal... - Page 27 LED Dim 12 Ordercode: A9915045...
- Page 28 ©2020 Artecta...
