Summary of Contents for Eclipse E-15S2P

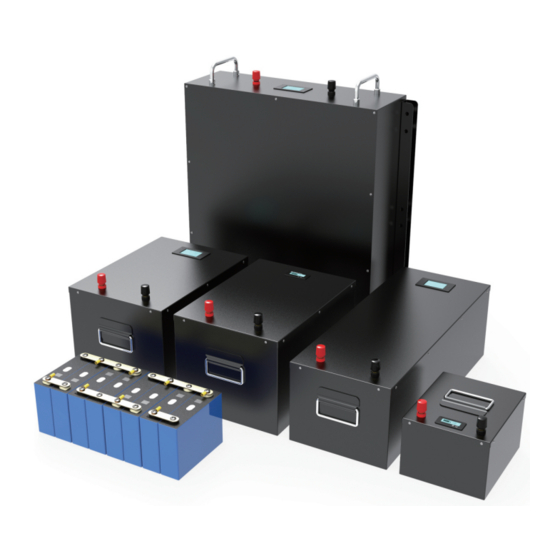

- Page 1 Eclipse Lithium Battery 48V200Ah LiFePO4 Battery user's manual...
-
Page 2: Table Of Contents
Contents Warning ..........................2 1 Product Index ......................... 3 1.1 Product Parameter....................3 1.2 Product Parameter Graph..................3 1.3 Battery Management System ................4 1.4 Battery Part Identication..................5 2 Battery Usages ........................ 5 2.1 Charge ........................5 2.2 Discharge ....................... 5 3 Battery Service Environment.................. -
Page 3: Warning
WARNING Quality Statement Proper use and maintenance will ensure that the battery (or battery system) will operate reliably and consistently for a long period of time. After receiving the product, please check if the packaging is in good condition. If the packaging is broken, there may be damage to the product. -
Page 4: Product Index
-10～45℃ (60-80% SOC Storage) Capacity@1C rate 0.2C ≥200Ah Inverter Disconnect High Inverter Disconnect Low 1.2 Product Parameter Graph E-15S2P/ 48V 200Ah DOD-Cycles 0.2C,25℃ E-15S2P/ 48V 200Ah Charge-Discharge Curve 0.2C,25℃ 100% Discharge Charge 100 120 140 160 180 200 220 1000 2000... -
Page 5: Battery Management System
1.3 Battery Management System Our lithium iron phosphate (LiFePO4) battery pack includes an onboard digital battery management system(BMS). The BMS monitors voltage, current and temperature on both an individual cell and battery pack level. If any of these measurements deviate outside of their safe operating ranges, the BMS will actively work to correct the deviation. -
Page 6: Battery Part IdentiCation
1.4 Battery Part Identication Carry Handle Left and Right Positive Terminal (Red) Display Negative Terminal (Black) Wall Bracket Left and Right Voltage Current 48.00 0.00 Display Switch voltage current Parameter Analysis (test battery status) power energy Power Energy 2.BATTERY USAGE 2.1 Charge Charging voltage is 54.6 ±... -
Page 7: Battery Service Environment
3.BATTERY SERVICE ENVIRONMENT Battery discharge ambient temperature is -10°C~ + 55°C (When the ambient temperature >45°C, please pay attention to the ventilation and heat dissipation). Charging temperature is 0°C ~ + 45 °C. Ambient humidity RH is ≤85% . Pay attention to eliminate moisture when the ambient humidity is >85%. -
Page 8: Battery Use And Maintenance
● Please charge the battery within 12 hours of a complete discharge. If the battery is not charged within 12 hours of a complete discharge, please test the battery voltage before charging. If the voltage of the battery is < 32V, do not attempt to charge the battery. -
Page 9: Battery Operating Requirements
● When fastening battery terminals, please don’t use excessive force, or the terminals could be damaged. ● After installation, please check whether the terminal fasteners are still tight. Clean the surface of battery with dry cloth. Please don’t use oil or other volatile organic solvents to clean or it may damage the case. -
Page 10: Battery Troubleshooting
5.6 Battery Troubleshooting Battery voltage is too low after being fully charged. Solution:Contact your installer or distributor. Battery is in long-term storage with no use and is not being maintained properly. Solution:Please test the battery voltage. If the battery voltage is <30V, it can't be charged and needs to be un-wired and isolated.
