SPEEDLITE
SPEEDLITE
捷宝微信公众账号:捷宝TRIOPO摄影闪光灯三脚架
微信号:triopojiebao
E
版使用说明书

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speedlite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for triopo Speedlite

Summary of Contents for triopo Speedlite

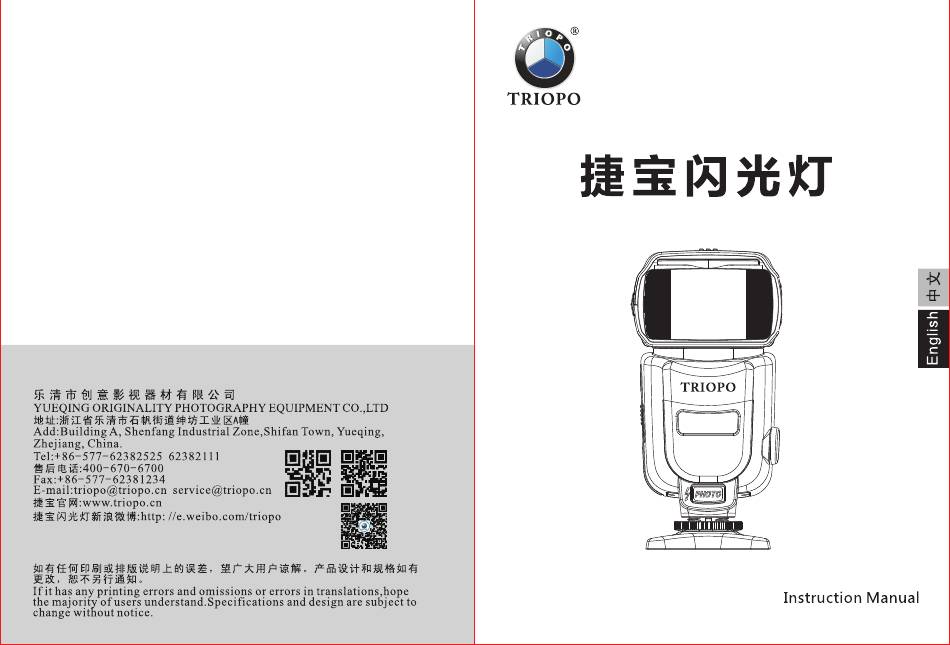

  • Page 1 SPEEDLITE SPEEDLITE 捷宝微信公众账号:捷宝TRIOPO摄影闪光灯三脚架 微信号:triopojiebao 版使用说明书...
  • Page 2 Thank you for this purchasing this speedlite. The Speedlite Features 1.TTL flash 2.Manual flash 3.Multi flash 4.Wireless slave unit function:Compatibility with the Canon and Nikon wireless flash system,realize TTL from machine,manual and frequency flash 5.S1.S2 Light flashing mode 6.Flash control by Camera (Only for the newest Canon Version) 7.High-Speed Sync 1/8000s...
  • Page 3 Lampshade lockingbutton Head locking button LCD screen Two key at the same Reflect time according to factory default key Wireless select keys High Speedsync/ Rear-Certion/Normal flash cutover key (Canon version) Backlight switch/ Wireless Settings Long press button set button custom function Settings Mode Switch button selection buttons...

  • Page 4: Af-Assist Illuminator

    AF-Assist illuminator When working under a darkness condition, the automatic AF which is in the right ahead of the flash light may temporary project red hard light to assist focusing. It may disturb the subject, you can turn to manual focusing. Set the Bounce Drecion <...

  • Page 6: Turn On The Power

    Set the flash exposure compensation not working within 60 seconds,the CPU automatically into value hibernation.In this case press any key to wake up the speedlite.When the 1.Select the flash mode 2.Press 【MODE】 mode button until speedlite does not work for more than 30 minutes,the CPU will shut...
  • Page 7 Using E-TTL and Autoflash in the shooting Modes Flash Sync Speeds and Apertures Used Just set camera’s shooting mode to <AV/A>(aperture -priority AE), Aperture Setting <TV/S>(shutter-priorityAE),or<M>(manual)and you can use E-TTL/ Shutter Speed Setting i-TTL autoflash. Automatic Set automatically(1/60 sec.~1/Xsec.) Select this mode when you want to set the shutter speed manually. TV/S Set manually(30 sec.~1/Xsec.) Automatic...

  • Page 8: Fel:flash Exposure Lock

    0EV→-0.3EV→-0. 7EV you can set the flash on the camera exposure by locking, after set, the speedlite will fire a preflash and the required flash output for the subject is retained in memory.The camera will calculate the flash compatible output data,you have time to composition again,after finishing composition can press the shutter to shot (this feature requires you to use the camera itself support,please refer to your camera manual settings).
  • Page 9 Stroboscopic flash mode(Multi) The number of flashes set Select the Settings button group 【MIDDLE】key to display Using Multi mode,you can issue a series of quick flash,it can shoot flashing,Select the Settings button group 【LEFT】 【RIGHT】key to multiple images of moving objects on a photo,you can set the flash set the number of flashes,the available number of flashes for 1-40.After frequency (number of flashes per second can use Hz to show),the Values setted and then select the Settings button group 【MIDDLE】...

  • Page 10: Wireless Flash Mode

    N signal interference; avoid C signal interference; be arranged in the same channel.This speedlite as the slave unit,press the [ZOOM] button until the channel or category flicker,respectively setting the slave unit Communication channels (1, 2, 3, 4) and the slave unit group 1.Set the speedlite to wireless flash mode by press wireless selection key,...
  • Page 11 The Master speedlite using in the red-eye reduction function role to create a variety of lighting effects.They are suitable for manual and modeling;The master speedlite using the remote flash mode (Nikon) or flash environment and TTL flash environment.In these two mode to adjust the output brightness is the same as M mode,only need to operate wireless flash mode (Canon);Use ST-E2 as flash controller.
  • Page 12 Note: the Master unit if you set the <RATIO A:B>, set as a slave unit synchronous mode on the speedlite,First setting the Camera Menu to <C> group will not flash .If the group of three speedlite is set to <A>, 'FP' automatically open,When connect the camera the flash screen display 'FP' immediately.
  • Page 13 Attaching the bare bulb reflector 2. Wireless induction lighting light 1. When desired, the flash head’s Reflector can be threaded into the flash head directly around the flash bulb. 2.Use caution when screwing the reflector into the light head. It is possible to crossthread the two The improved wireless triggering sensor trigger have higher sensor pieces.

  • Page 14: Voice Prompts

    Different sound ways will prompt the different working conditions of You can follow your shooting preferences the speedlite so as to make you focus on shooting only. custom flash function.Use a custom function Long press the custom function setting button to custom to complete the set.
  • Page 15 Circuit design:Insulated Gate Bipolar Transistor(IGBT) Flash index:56(ISO100,180mm) Flash coverrage:18~180mm Manual,Automatie Zoom Swinging/Tilting flash head (bounce flash) Flash mode :TTL,M,FEB,Slave,S1,S2,Multi The wirelss trigger: Wireless induction flash lighting The wireless cited flash distance:Indoor 20-30 meters, Outdoor 10-15 meters Up and down whirl angle degree:-7~90degree Left and right whirl angle degree:0~180degree Slave Group and Unit: 4 Slave lommunication channels (1,2,3,4) 3 Slave unit group(A,B,C)
