SYCLONE NEGATIVE AIR MACHINE
OPERATING & MAINTENANCE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Syclone MK4

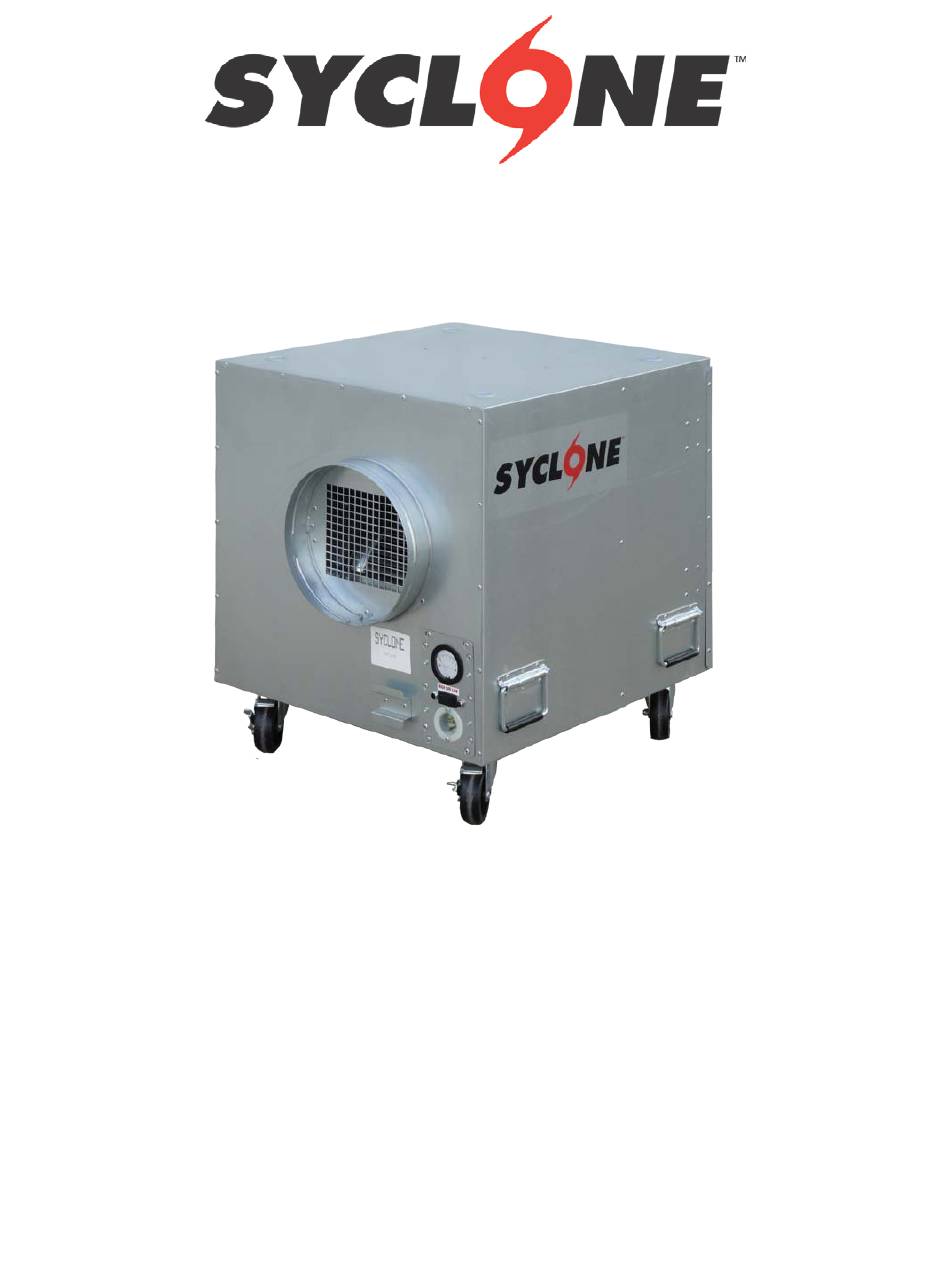

  • Page 1 SYCLONE NEGATIVE AIR MACHINE OPERATING & MAINTENANCE MANUAL...

  • Page 2: General Information

    ELECTRICAL COMPONENTS ARE “UL” LISTED AND “CSA” CERTIFIED. 1. GENERAL INFORMATION: The SYCLONE NEGATIVE AIR MACHINE is designed for indoor use and to provide the most efficient air filtration with three stages of filtration. One stage with HEPA (High Efficiency Particulate Air) filtration, that can remove 99.97% of particles 0.3 micron or larger from the air...

  • Page 3: Operation

    MECHANICAL COMPONENTS. FAILURE TO COMPLY WILL VOID ALL WARRANTIES. Electrical Requirements: 3.1.1 The SYCLONE requires a minimum of 115 VAC, 60 Hz, 15 amp, power supply for normal operation. 3.1.2 The unit requires a heavy duty industrial grade 12-3 cord, in good condition, and should not exceed 50 ft.
  • Page 4 Pressure Gauge Breaker 20 Amp Sensing Port PS Receptacle High - Off - Low Switch Fig. 1 Control Panel Control Panel: 3.3.1 High-Off-Low Switch to start and select the speed of the unit 3.3.2 Push Button Breaker 20 Amp 3.3.3 Power Supply Receptacle 3.3.4 Pressure Gauge...
  • Page 5 3.5.2 At the end of the project, the filters should not be removed, instead the intake opening should be sealed with polyethylene film and duct tape. Fig. 2 Pre-filter Pad Fig. 3 Ring Panel Filter 4. FILTRATION: First Stage Filter (Pre-filter Pad): 4.1.1 24”...

  • Page 6: Filter Replacements

    UNIT, MUST WEAR APPROVED RESPIRATORS AND PROTECTIVE EQUIPMENT AND TO FOLLOW SAFE WORK PROCEDURE. Pre-filter Pad Replacement: 5.1.1 Turn the SYCLONE unit off and make sure to disconnect the power supply cord from the unit. 5.1.2 Open the door and remove the contaminated pre-filter pad.
  • Page 7 Ring Panel Filter Replacement: 5.2.1 Turn the SYCLONE unit off and make sure to disconnect the power supply cord from the unit. 5.2.2 Open the door and remove the contaminated ring panel filter. 5.2.3 Fold in the sides of the contaminated filter and dispose of as per section 5.4.

  • Page 8: Electrical Schematic

    5.3.11 Reconnect the power supply cord, then turn the unit on, and check the pressure gauge at the control panel. If pressure still exceeds the pressure stated above, consult your distributor. Used filter disposal: 5.4.1 Used filters are considered contaminated waste and are to be disposed in compliance with all applicable regulations.

  • Page 9: Replacement Parts List

    Pre-filter Pad 24” x 24” x 1” 32000106 Hepa 1-Clip Kit w/ Hdwr 32001008 SYCLONE Control Box Housing 32001003 SYCLONE Control Panel Assy. (Item’s 13, 14, 15, 16, 17 & ect.) 32001007 SYCLONE Control Panel Plate 66020101 Miniature Differential Pressure Gauge 0-5” WC 72150202...
