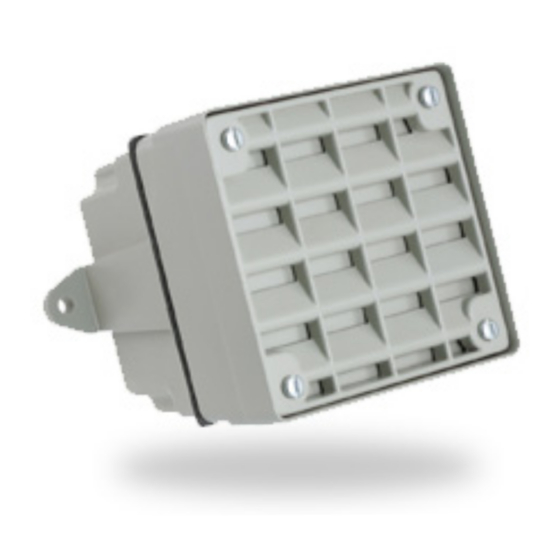

Functions  list    Selectable
1. High  frequency    Affects  teens  and  to  a  lesser  extent,  people  up  to  the  age  of  around  25
2. Low  frequency    Audible  to  people  of  any  age
3. Audible  beep    A  beep  that  is  audible  to  everyone  once  per  minute  to  warn  people  that  the
unit  is  running
4. Volume    4  selectable  volume  levels.  94dB,  96  dB,  100  dB  &  104  dB

Important  considerations  before  deployment
1. The  sound  from  the  Mosquito  MK4  is  HIGHLY  targeted.  This  means  that  the  sound  goes
where  it  is  pointed.  The  sound  has  a  dispersement  angle  of  60  degrees  from  the  front  of  the
unit.  This  means  that  there  must  be  a  CLEAR  line  of  sight  between  the  Mosquito  and  the
area  to  be  targeted.

2. The  sound  from  the  Mosquito  does  NOT  penetrate  windows,  doors,  walls,  fences  or  even
dense  shrubbery.

3. The  Mosquito  should  be  used  ONLY  when  a  problem  is  experienced  and  at  no  other  time.

Wiring,  triggers  and  settings
Power  input
terminals





Mosquito  MK4
Additional  setup  instructions
Trigger  input
terminals
Function  DIP
switches


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mosquito MK4

  • Page 1 Important  considerations  before  deployment   1. The  sound  from  the  Mosquito  MK4  is  HIGHLY  targeted.  This  means  that  the  sound  goes   where  it  is  pointed.  The  sound  has  a  dispersement  angle  of  60  degrees  from  the  front  of  the  ...
  • Page 2 This  is  ONLY  used  when  a  PIR  (movement  sensor)  or  Remote  Control  is  being  used  to  activate  the   Mosquito.  If  you  are  NOT  using  a  PIR  or  Remote  to  trigger  the  Mosquito,  this  switch  MUST  be  in  the  ...
  • Page 3 Connect  the  switching  wir     Trigger  connection.  (With  function  chip  #  2  fitted)   If  you  wish  to  use  a  PIR  to  trigger  the  activation  /  deactivation  of  the  Mosquito,  the  PIR  must  be     Connect  the  switching    ...
  • Page 4  the  Mosquito  that  the  louvers  project  the  sound  down  at  a  45  degree  angle.  This  means   that  if  you  mount  the  Mosquito  directly  on  to  a  wall,  the  sound  will  project  down  at  45  degrees.   If  the  area  to  be  targeted  is  further  away  than  this  45  degree  angle  will  cover,  you  MUST  use  the  ...
