Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: info@rainbowpoolproducts.com.au
Web: www.rainbowpoolproducts.com.au
Installation and
Operation Manual
This equipment must be installed and serviced by a qualified technician.
WARNING
Improper installation may result in property damage, serious injury or death.
Improper installation and/or operation will void the warranty.
Notice to Installer
This manual contains important information about the installation, operation
& safe use of this product. Once the product has been installe this manual
must be given to the owner / operator of this equipment.
www.waterco.com
Advertisement
Table of Contents
Related Manuals for Waterco MultiCyclone Plus
Summary of Contents for Waterco MultiCyclone Plus
- Page 1 Improper installation and/or operation will void the warranty. Notice to Installer This manual contains important information about the installation, operation & safe use of this product. Once the product has been installe this manual must be given to the owner / operator of this equipment. www.waterco.com...
-
Page 2: Table Of Contents
WARRANTY ------------------------------------------------------- 10 SAFETY INFORMATION 1. The Waterco MultiCyclone lters are designed to work with water at a temperature > than 0ºC and < than 45ºC. The lter should never be operated outside of these temperatures or damage may occur. -
Page 3: Multicyclone Plus

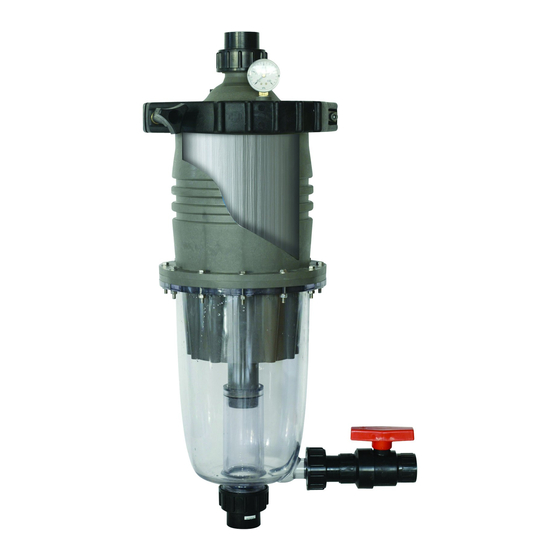

MultiCyclone Plus I pg 02 MULTICYCLONE PLUS MultiCyclone Plus combines centrifugal and cartridge ltration into one streamlined housing, creating an ultra compact ltration system. pleated lter cartridge. Dual stage filtration Incoming water tangentially enters its multiple hydrocyclones, generating a strong centrifugal effect. - Page 4 1 ½” Quick Fit Union. Water Flow 16 Plus: 50mm/63mm (EU) 2” Quick Fit Union. Note: The MultiCyclone Plus centrifugal section is designed to lter sediment that is heavier than water; oating debris cannot be ltered out by centrifugal ltration. Connection Minimum...
-
Page 5: Multicyclone Total Head Loss Curve
The PRV should be set to 90% of the maximum operating pressure of the tank. If the incoming water ow is less than the lter’s minimum ow requirements, the lter’s ltration ef ciency will be affected, please consult Waterco. Typical Installation 1. - Page 6 Use only recommended glue for connection pipe and fittings Cut and t the pipe and ttings onto the MultiCyclone Plus and the pump. Refer to Pump Installation Manual for correct pump plumbing procedures. It is best practice to t all the cut pipe and ttings onto the ltration system before gluing; this will ensure that the system has been aligned correctly.
-
Page 7: Start Up Proceedures
START UP PROCEEDURES The MultiCyclone Plus is an advanced and highly ef cient lter system that will provide years of trouble free service if the following maintenance procedures are maintained. To start up the ltration system either from new or after cleaning is exactly the same. -
Page 8: Multicyclone Plus Filter Maintenance
Waterco recommends tting a 2 way valve after the MultiCyclone Plus on the pool water return line. The 2 way valve is used to throttle the ow of water out of the MultiCyclone Plus, increasing water turbulence through the sediment chamber and improving its purging action. -
Page 9: Filter Cartridge Maintenance
110kPa (16psi). Cartridge Cleaning Prior to removing the MultiCyclone Plus cartridge lter’s lid, you will need to release the pressure from the lter cartridge housing. With the pump off, loosen the air release valve on top of the MultiCyclone Plus lter lid to release pressure from the lter housing. -
Page 10: General Maintenance Guide
Some swimming pool stores offer a lter cartridge cleaning service using the correct solutions otherwise you may wish to use Waterco Cartridge cleaning solution. Directions of use are on the product. The cleaning time depends upon the swimming pool condition and use. Intervals between cleaning the element should not exceed a period of 12 months in any instance. -
Page 11: Troubleshooting Guide
Worn “o”-ring seal inside lter, replace o-ring. WARRANTY MultiCyclone Plus is covered by a 2 year warranty and 1 year warranty on labour. Commercial installations are covered by a 1 year warranty. Please refer to Waterco’s warranty terms and conditions.
