Summary of Contents for Neostar Twin Solar Security Spotlight

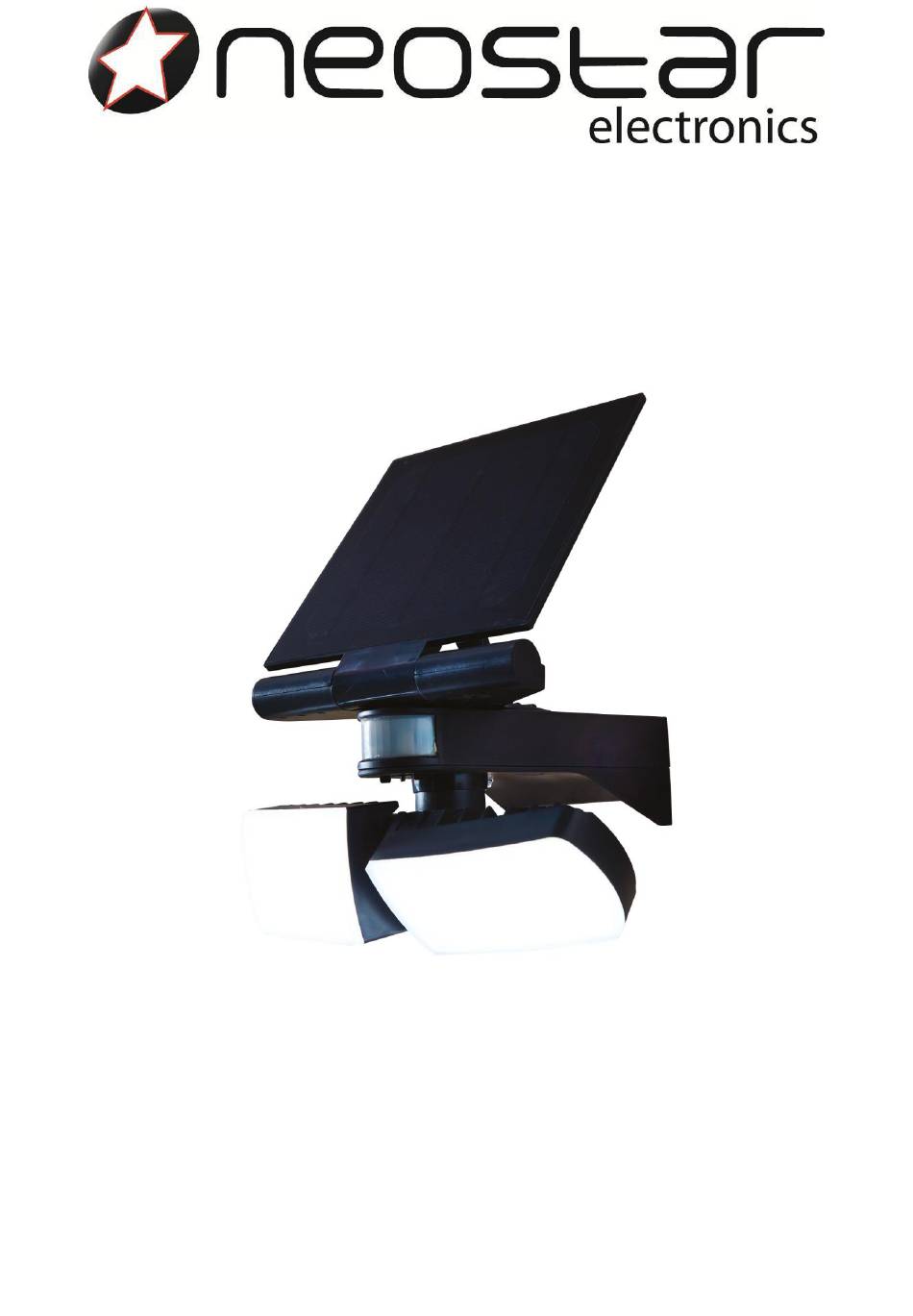

- Page 1 Neostar Twin Solar Security Spotlight Product Code: 318 4355 Instruction Manual...
-
Page 2: Table Of Contents
Thank you for purchasing this Solar LED Security Sensor light. The Solar LED sensor light helps you to protect your property by sensing movement and illuminate the area. This product is intended for installation on the wall facing direct sunlight, and should be installed by a competent person. Before first it is most important that you read and follow these instructions, even if you feel you are quite familiar with this type of product. -
Page 3: Installation Guide
•Always keep the solar panel surface clean free of dirt and debris. Clean it periodically as required with soft cloth, water, do not use chemicals. Do not use abrasive materials. A dirty solar panel will charge the battery with less power which may result in shortening the battery life or malfunctioning of the unit. •Ensure the solar panel always receives maximum sunlight. -
Page 4: Charging
CHARGING For normal operation of the light the battery has to be fully charged. The sunlight will always charge the battery during daytime. Ensure the solar panel is clean and facing direct sunlight. If the LED light doesn’t come ON when the sensor detects movement, turn the switch OFF and allow the solar panel to charge the battery for minimum 10 hours in summer or for 3 sunny days in winter. -
Page 5: Product Specification
SETTINGS The sensor ‘E’ has TIME, SENSITIVITY and LUX dials, located on the bottom of the sensor SENSITIVITY The sensitivity is adjustable from minimum to maximum (shown graphically above). Use your fingers to adjust the time dial into desired position. Be gentle not to use excessive force. If you have small animals, for example dogs or cats and you don’t want them to activate the sensor, adjust the sensitivity towards less sensitivity TIME... - Page 6 TROUBLESHOOTING PROBLEM POSSIBLE REASON POSSIBLE SOLUTION Light does not switch 1. Flat Battery Charge up the battery for 10hours. Clean ON when there is the solar panel. movement in the 2. Nearby lighting is too bright. Redirect relocate the security sensor light detection area 3.
-
Page 7: Recycling Information
RECYCLING INFORMATION The crossed-out Wheelie Bin logo is used to highlight electrical products that should not be disposed of with normal household waste. Scotts Ltd has contributed to the funding of an alternative network of UK recycling facilities. Please visit www.recycle-more.co.uk to find where your nearest recycling point is and recycle this product at the end of its life.
