Sea Eagle CP Assembly Instructions

For se9

Advertisement

The canopy is a common design requiring minimal assembly. It was designed for inflatable
boats but it will fit many small boats that are approximately 5' to 6' wide including
non-inflatables.

Canvas and Frame Assembly

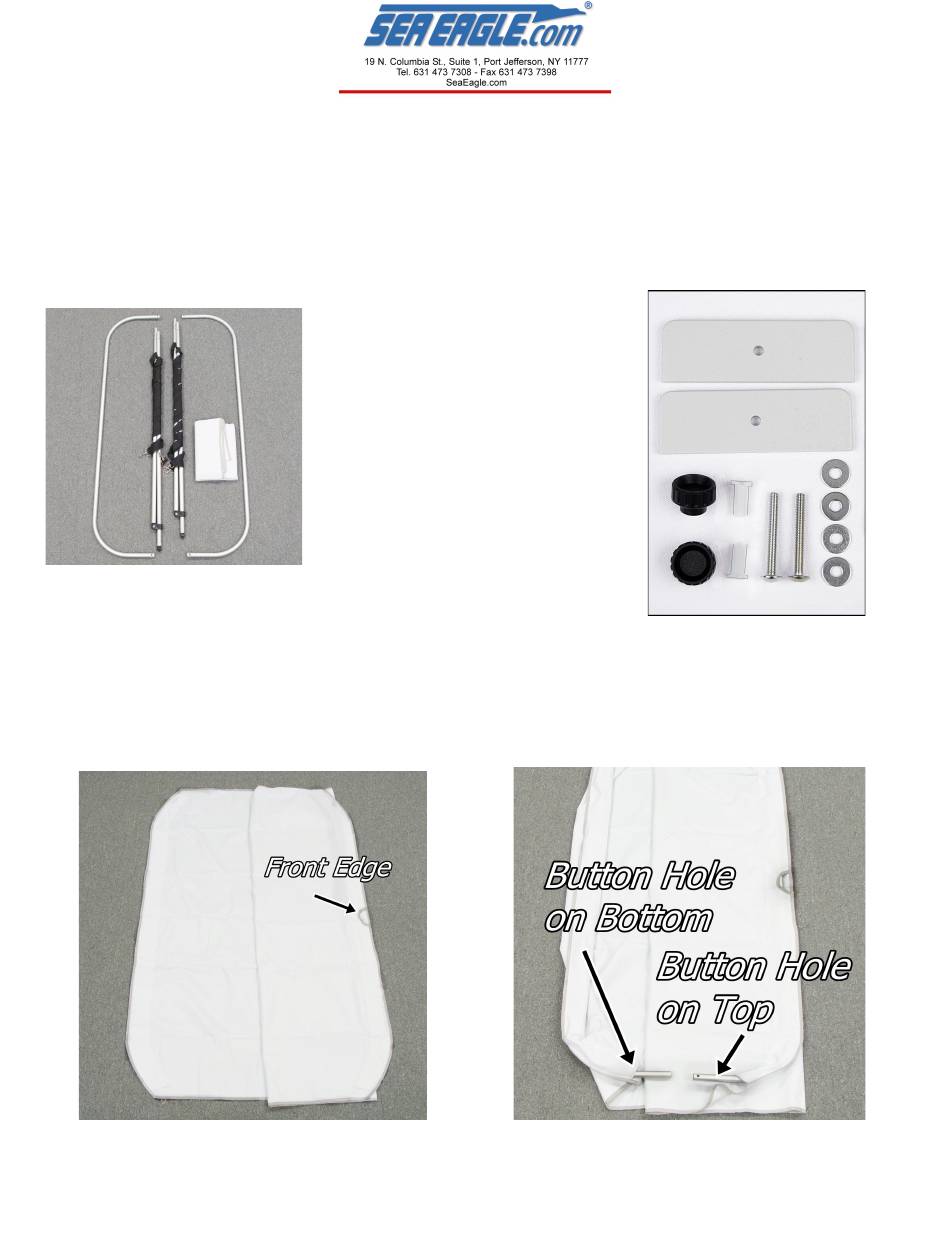

Lay out the canvas so it is upside down (shiny side up) and the sleeves are visible at the front
and rear of the canvas. Lay the front curved bar on top with the button holes facing up. The
holes for the rear bar must face down. Then slide the bars into the sleeves.
Assembly Instructions for
Canopy (CP) for SE9

Kit includes:

1 - Canopy Canvas
2 - Side Rod with straps and locking
buttons
2 - Curved Bar with button holes
2 - Glue-On Pad for Inflatable Boats
Hardware: 2- 50mm x M6 screws, 2-
Nylon bushing, 4- flat washer, 2-
knobs, 2 - Plastic Plates
