Summary of Contents for Aleko BSW08

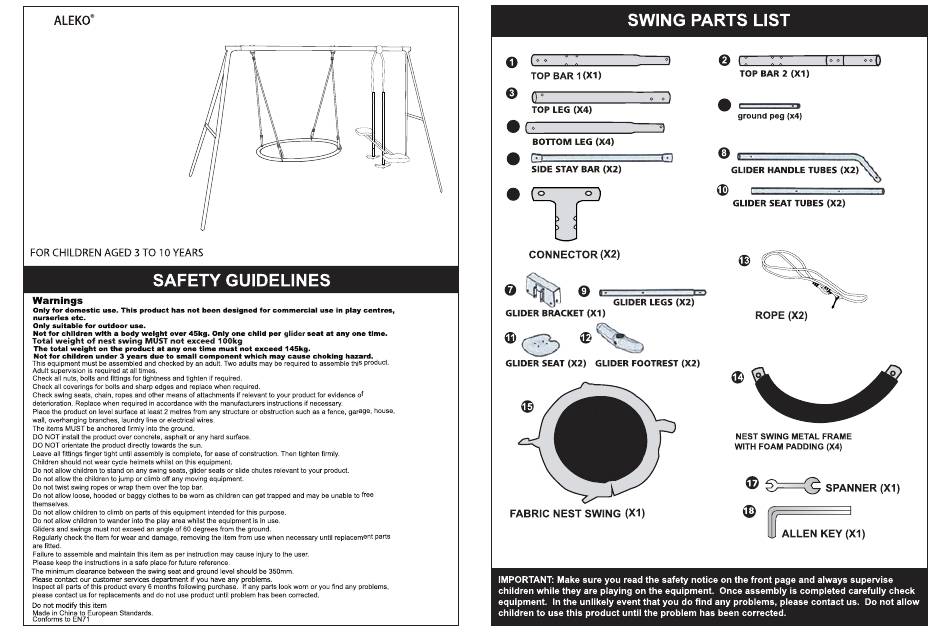

- Page 1 Nest Swing & Glider - BSW08...
- Page 2 Attach Swing to Assembled Frame Nest Swing Assembly (x4) (x4) Step 1. Completely disassemble F1 U-Bolts then place u-shaped bolt through the hole in the bearing assembly found at the end of the Swing ropes. Step 2. Tighten open-ended F1 nut down onto u-shaped bolt, place 1 F1 washer on Fig.
- Page 3 Glider Assembly Step 5. Insert tapered segment of Glider Legs into exposed open side of Glider Handle Tubes, use 2 G6 fasteners on either side to attach. Fig. 3 Fig. 2 Step 6. Insert 1 G9 Plastic Spacer into either side of the holes near the center of the Glider Legs (Fig.
- Page 4 Use temporary support made from wood or other material if necessary to prevent sinking (Fig. 5). Swing Set will be ready for use once concrete is fully set and cured (consult concrete manufacturer's instructions). Fig. 5 visit us at www.aleko.com...
