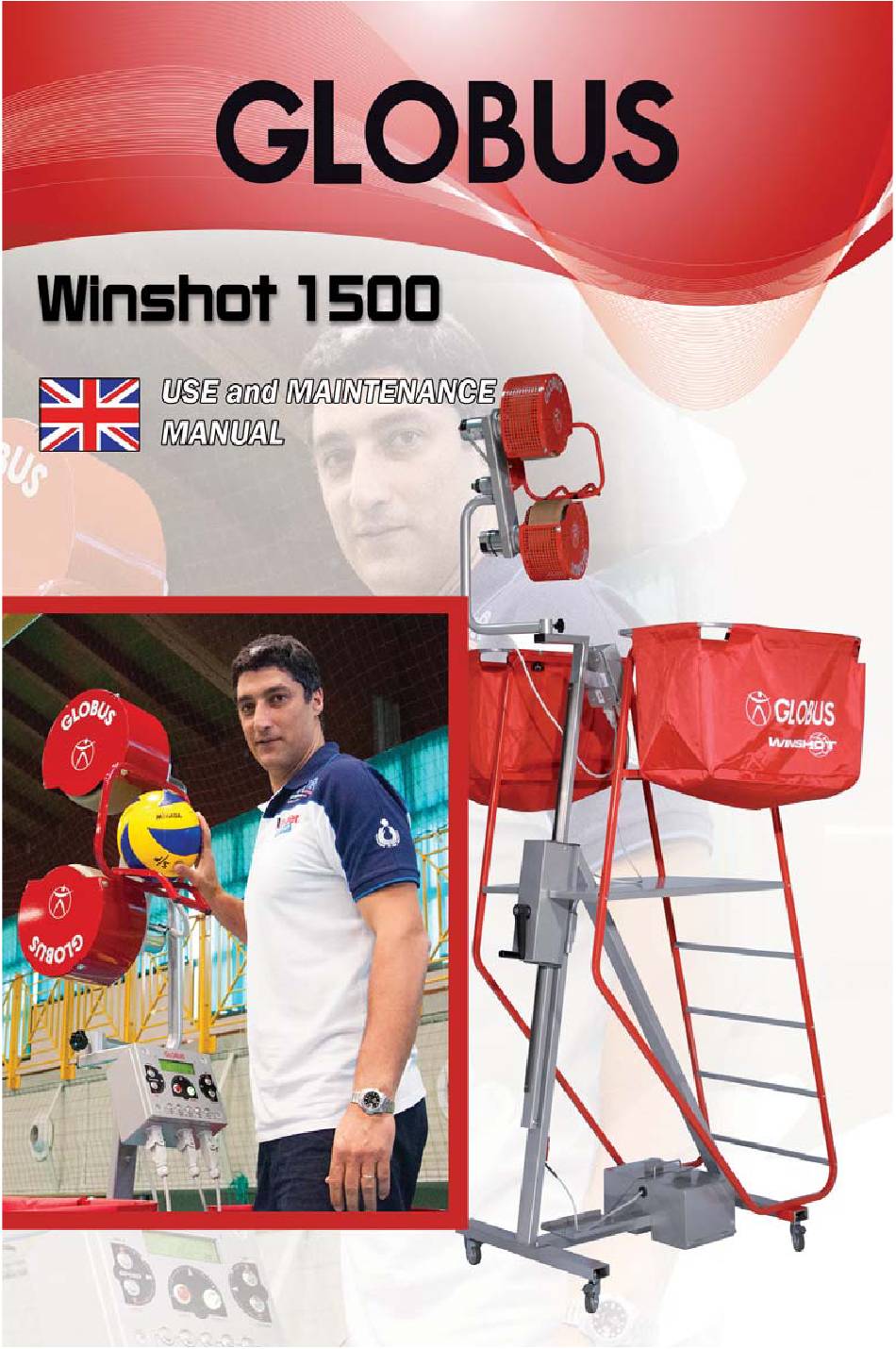

Summary of Contents for Globus Winshot 1500
-
Page 2: Warnings And Precautions
Please pay utmost attention, that the operator or other personnel does not get in con- tact with these parts, can be very dangerous. The utilization of Winshot 1500 is only for trained adults; please do not leave Winshot 1500 accessible to small children. -
Page 3: Table Of Contents
Electric motor connection - Power supply Battery Charger and kit battery ( Optional ) Electric motors controller Fast Control System Shooting Wheels replacement How to operate Winshot 1500 Wheel locking Head lifting - lowering Adjustment of the stiffness of the vertical inclination... - Page 4 Items contained 2 ball charts Power supply Winshot 1500 Optional accessories Speed gun Battery pack battery charger Pag. 4...
-
Page 5: Components Of Winshot 1500
Components of Winshot 1500 5. Aiming handle and guide for ball 4. Upper carter whells entry 3. shooting wheels 6. Ball 2. Electric charts motors 1. Electric motors controller Fast Control 7. Operator System platform 13. Frontal 8. Handrail handle for head elevations 12. -
Page 6: Head Of Machine
Head of the machine 1) Head with shooting 2) Meccanichal joint wheels and related motors 7) Shooting wheels 3) Electric upper motor 5) Lower carter wheels 3) Electric lower motor 5) Lower carter wheels 2) Meccanichal joint 4) security knob 1 ) The head of the machine consists of 2 electric motors, which turn the two shooting wheels, the ball inlet and the protection guards. -
Page 7: Assembly Of Winshot 1500
Assembly of Winshot 1500 The machine arrives pre-assembled ( as show in the photo ). Please follow the assembly instruction as described below: A part of the machine structure Head of the machine Upper handrail Two Ball charts Power supply 1. - Page 8 3. Assembly of the upper part of the left handrail 4. Assembly of ball chards to the machine. 5. Connection of the power 5. Connection of the battery pack supply pag 8...
- Page 9 Power supply Winshot can be powered from a regular household 220Volt ( or 115 Volt ) outlet. It is also available a battery-power kit. Connection between the power supply and Winshot 1500 Pag. 9...
-
Page 10: Battery Charger And Kit Battery ( Optional )
I = 8-10 hour charge the batteries are charged II = 3-4 hour charge Connection between the battery charger and Winshot 1500 Warning !! Check the level of distilled water inside the batteries every months. -
Page 11: Electric Motors Controller Fast Control System
LED indicates the set speed has been reached, and the machine is ready to shoot with the desired parameters. With WinShot 1500, the time interval between shots, or to switch between different memory settings, is very rapid in the order of one second. - Page 12 Adjusting electronic control with Fast Control System The motor control lets you vary the speed of the 2 motors and it is essential to define tra- jectories, speed and effects for serves, attacks and settings. To start spinning the shooting wheels, Turn on the control unit with the main select a previously set memory or increa- switch on the left-hand side.
- Page 13 To store this shot, simply press one of the To adjust the setting of a memory, simply 5 memory keys for two seconds and the change speed or spin and store the display will indicate STORED MEMORY. memory again with the new parameters. Between shots, waiting time is very When it is desired to arrest the wheels in short (1 second), during which the red...
-
Page 14: Shooting Wheels Replacement
Shooting Wheels replacement The wheels are made of a special, natural, soft rubber-based material which safeguards ball wear. From year to year inspect if the wheels guarantee the normal functionality of the shot or if it is necessary to replace them. To replace the shooting wheels, follow the instrutcions below 1) Unscrew the screws around the protection cover. -
Page 15: How To Operate Winshot 1500
Frontal handle to regulate the height of the launch head. From 230 cm to 340 cm. Winshot 1500 can launch the ball from very different heights: from 230 cm. up to about 340 cm. This characteristic allow to reproduce a wide range of ser- ves and spikes, and to repeat the serve characteristic of the adversary. -
Page 16: Vertical Inclination
Vertical inclination The oscillation of the head on the vertical axis is very wide, thanks to the spe- cial fixing system of the wheels on the launching platform, and to the joint which permits a quick and ductile movement of the wheels on the vertical axis. -
Page 17: Practical Use Of Winshot 1500
Practical use of Winshot 1500 SERVES Winshot 1500 can be used for : - Float and spin serves with or without jump - Spikes with jump from front row or back row and with feet to train the defen - Setting from any court position and for all trajectory type... - Page 18 The serve with rotation (spin), while jumping or with feet on the ground The motor control lets you vary the speed of the 2 motors and it is essential to define tra- jectories, speed and effects for serves, attacks and settings. For example, to simulate the jump serve of a good server set the speed of the wheels to 70-80% with Spin set at about 20%.
-
Page 19: Spike
Spike First-line attack An attack is simulated with Winshot 1500 with the same settings of the spin serve, but inclining downwards the head of the machine. Position the machine next to the net, and set the head at the correct height , above 2,70 m for wamen and above 3,30 m for man. -
Page 20: Sets
Sets Winshot 1500 can perform all typical sets of volleyball from all areas of the field. Tilting the head in the appropriate way, one can do different sets of high ball, medium ball, super ball, pipe, 1st and 2nd time back and forth, as well as sets in the 2nd line from zone 1. -
Page 21: Warranty
Warranty Winshot 1500 is guaranteed to the first user for a period of twenty-four (24) months from date of purchase against defects in materials or workmanship, provided that properly used and main-tained under normal conditions of efficiency. The warranty, if the user uses the device with professional purposes, shall be twelve (12) months from date of purchase against defects in materials or workmanship, if properly used and main-tained under normal conditions of efficiency. - Page 24 DOMINO s.r.l. via Vittorio Veneto 52 31013 Codognè - TV- Italy Tel. (+39) 0438.7933 Fax. (+39) 0438.793363 E-Mail: info@domino.tv.it...
