- Page 1 Manual SoundCam...

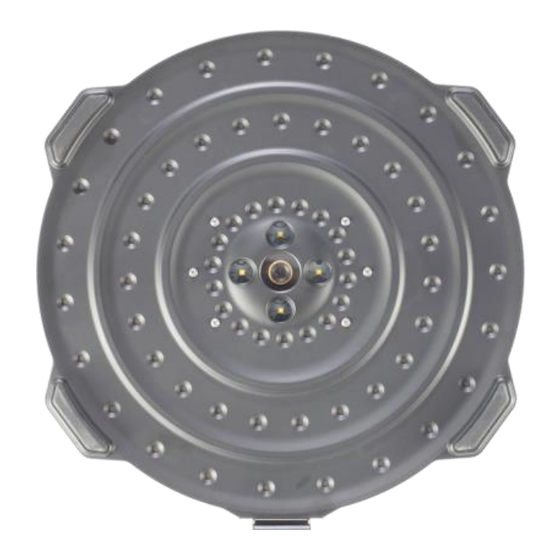

- Page 2 Hardware - Transportation case and SoundCam Hardware Transportation case and SoundCam Transportation case 1 SoundCam 2 headphones 3 power cable part 1 4 tripod 5 power cable part 2 1 On/Off Button and Status LED Turn on: Press & Hold (~2 sec.), status LED flashes while booting and turns green when finished.
- Page 3 SoundCam - Software - Starter Guide SoundCam Software - Starter Guide 1 Start measurement 2 Settings 3 Shut system down 4 Profile 5 Saved measurements Press 1 – start measurement Start 1 Distance between mic and surface 2 Scaling 3 Frequency filter...
- Page 4 SoundCam - Software - Starter Guide 1 Save recording 2 Play recording 3 Time navigation 4 Take snapshot (online/offline) 5 Create video 6 Save video 7 Close window Press settings Press button Plug your USB stick (not included in delivery...
- Page 5 SoundCam - Software - Starter Guide Mark files Video are *.webm (can be opened by all internet explorers) Snapshot are *.png Copy on your USB stick Copy is done Close window! Remove USB stick and enjoy on your PC Page 5 of 17...
- Page 6 SoundCam - Software - Function Buttons SoundCam Software - Function Buttons Distance settings Set up the distance between the SoundCam and your measurement object by using the slider. If the measurement object is further away than 350 cm set it to the max level 350cm.
- Page 7 SoundCam - Software - Function Buttons Smart scaling: background noise is removed Click on Dynamic to see Crest Move the cursor to adjust the crest factor Small number = remove less background noise Big number = remove more background noise...
- Page 8 SoundCam - Software - Function Buttons Example: two noise sources (2,5 kHz and 5 kHz) set cursors e.g. at 1728 Hz and 3998 Hz -> you see just the noise source 2,5 kHz Example : two noise sources (2,5 kHz and 5 kHz) +...
- Page 9 SoundCam - Software - Function Buttons Sound setting (use headphones) Enable/disable sound by using the button above the slider. With enabled sound use the slider to increase/ decrease volume. Record duration settings Select the time you want to record using the drop down menu.
- Page 10 SoundCam - Software - Function Buttons Place markers during or after measurement Time marker settings: Use the right/left arrow to jump to the next/ previous marker you have set. Press the delete button to delete the current selected marker. Create video:...
- Page 11 SoundCam - Software – zoom in/zoom out SoundCam Software – zoom in/zoom out Zoom in/zoom out sonogram: Double click on the sonogram Zoom in/zoom out optical picture: double click on the optical picture Zoom inside sonogram: Click long in the sonogram -> XYZ pops up...
- Page 12 SoundCam - Software – zoom in/zoom out E.g. press Y for min/max of the y-axis choose the max value by +/- and press “max limit” Press outside the window to close the window or press “max limit” to set the “min limit”...
- Page 13 SoundCam - Software – system settings SoundCam Software – system settings 1 Camera and beam settings 2 Copy menu 3 Info and update 4 Folder setting 5 Button settings 6 Profile settings 1 Camera and beam settings 1 Beam speed 2 Camera resolution &...
- Page 14 SoundCam - Software – system settings Info and update System information Update your system Select your SoundCam update *.swupd your system will be updated Page 14 of 17...
- Page 15 SoundCam - Software – system settings Folder settings Activate measurement series and put in measurement series name Button settings Select a function from the pull down menu Page 15 of 17...
- Page 16 SoundCam - Software – system settings Profile settings 1 Delete profile 2 Load profile from the pull down menu (load a profile -> all settings are defined) 3 Restore defaults 4 New profile Find the latest software, up-to-date FAQ and much more on our website: http://www.cae-systems.de/en/soundcam-owners...
- Page 17 Contact - CAE Software und Systems GmbH Contact CAE Software und Systems GmbH CAE Software und Systems GmbH Linteler Straße 23 33334 Gütersloh Germany Tel.: +49 (0) 5241/21142-0 Fax.: +49 (0) 5241/21142-29 info@cae-systems.de www.cae-systems.de Geschäftsführer Dipl.-Ing., MBA Nico Zurmühlen Handelsregister Gesellschaft mit Sitz in Gütersloh Amtsgericht Gütersloh HRB 8913...
