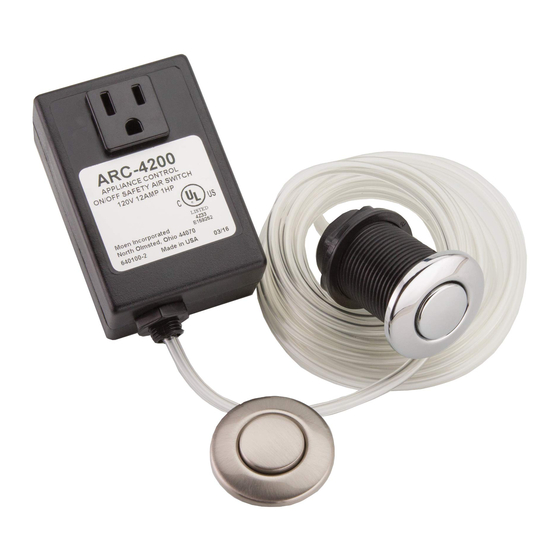

ARC-4200 ON/OFF SAFETY AIR SWITCH
DESCRIPTION
The ARC-4200 consists of easy to install components for air actuated on/off control for use with any electrical
device up to1HP, 120V. Simply plug the ARC-4200 control module into any standard electrical outlet then
plug the appliance into the receptacle provided in the control module. The appliance can be activated and
deactivated by depressing an air button mounted up to 10 feet away.
GARBAGE
DISPOSER
HOT
OUTLET
ARC-4200
CONTROL MODULE
DISPOSER APPLICATION (plug-in)
• Eliminates need for an electrical wall switch.
• Simplifies first time food waste disposer
installations.
• Operates on 120V household wall receptacle.
READ AND SAVE THESE INSTRUCTIONS
Anaheim Manufacturing Co. • Registered to ISO 9001
4240 E. La Palma Ave. • Anaheim, CA 92807
(800) 854-3229 • www.anaheimmfg.com

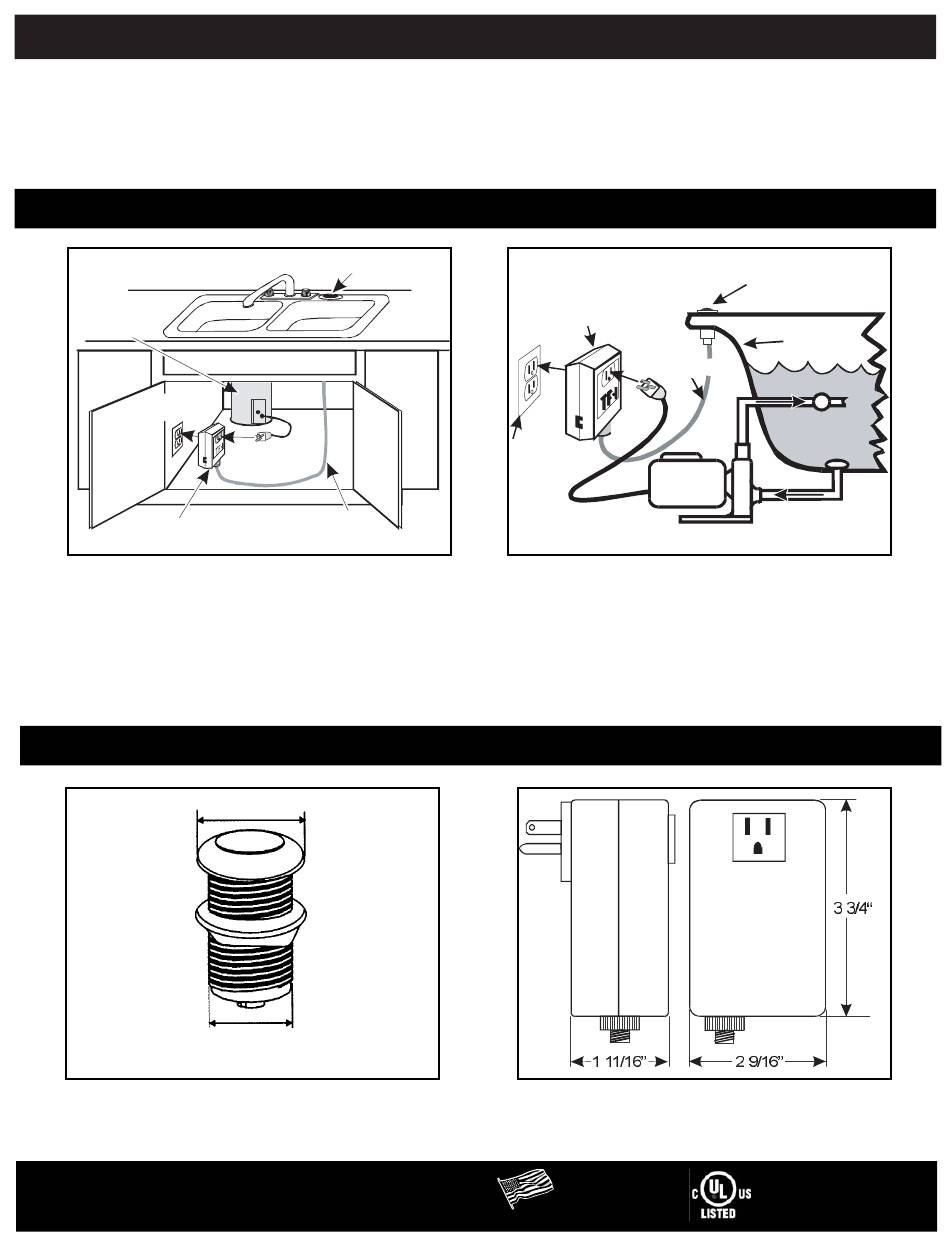

TYPICAL INSTALLATIONS
AS-4201 AIR SWITCH
PLUG
1/8"
AIR TUBING
DIMENSIONS
1 13/16"
1 3/8"
Mounting Hole
Required
ARC-4200
CONTROL MODULE
1/8"
AIR TUBING
GFCI
PROTECTED
OUTLET
PUMP
JET TUB APPLICATION (plug-in)
Made in U.S.A.
AS-4201 AIR SWITCH
TUB
560C477P01 REV C
