Summary of Contents for HWASHIN POWERSONIC 605

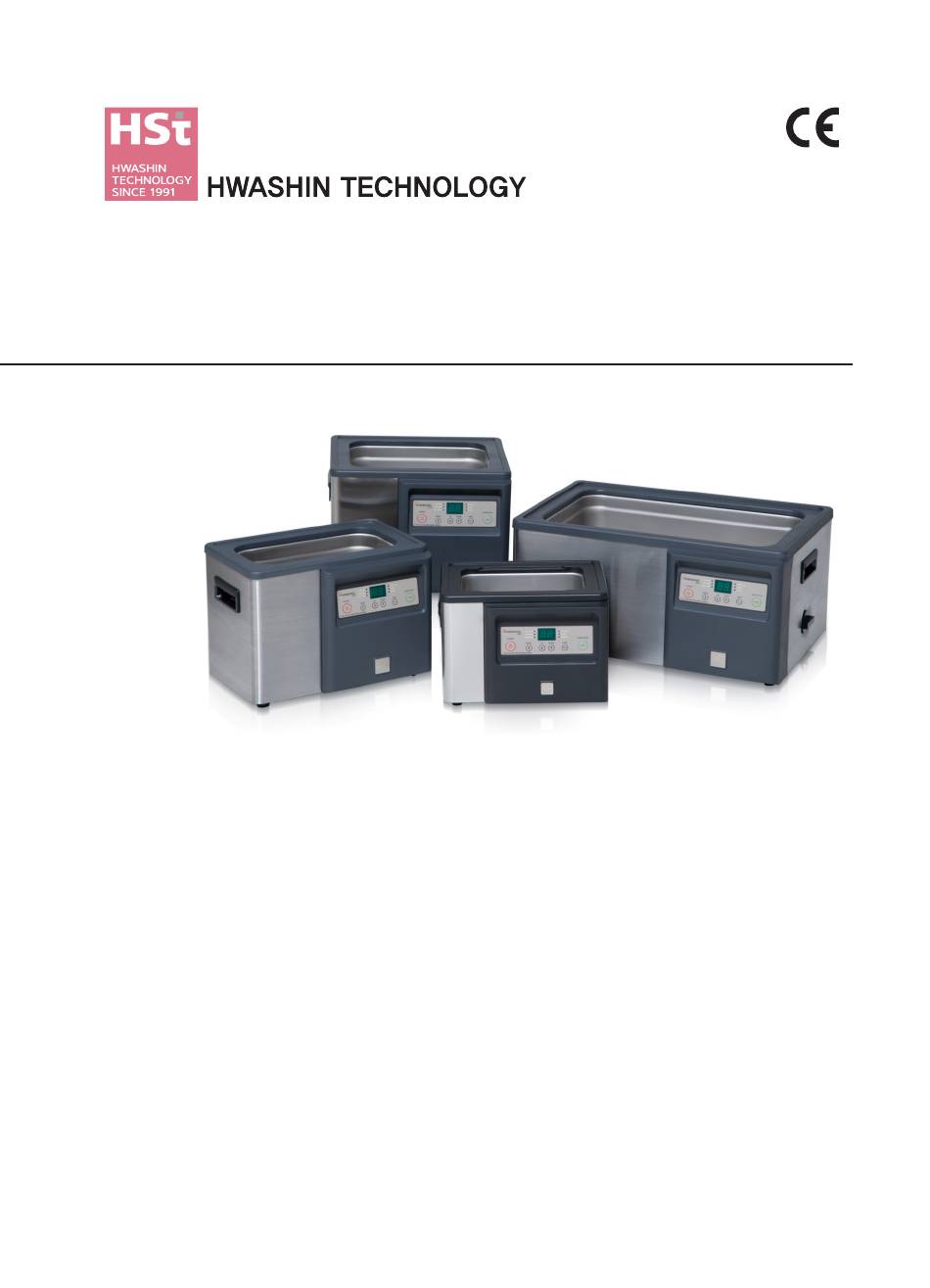

- Page 1 POWERSONIC 605/610/620 Model : HWASHIN ULTRASONIC CLEANER INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS ▶ Warnings & Cautions ▶ What is the Ultrasonic Cleaning? ▶ Name and Function of each Part ▶ Operating Method ▶ Cleaning Methods ▶ Optimum Condition for the best results ▶ Cleaning Solutions ▶ Troubleshooting Guide ▶ Specifications ▶ Warranty & Service... -
Page 3: Warnings & Cautions
Warnings & Cautions Before using our Hwashin POWERSONIC Cleaner, please read and thoroughly understand these warnings. Failure to follow these warnings may result in serious personal injury or property damage. Warnings Never disassemble your cleaner - High voltage inside of the cleaner is dangerous. - Page 4 Warnings & Cautions Warnings Never immerse the cleaner in water. Keep the control panel and the area around the cleaner clean and dry - Water and high voltage can cause electrical shock. Never use alcohol, gasoline or flammable solutions. Doing so could cause a fire or explosion and will void your warranty.
- Page 5 Warnings & Cautions Warnings Never use mineral acids. These could damage the bath. Never operate the cleaner with a unvented cover. Never place your fingers or hands into the bath while the cleaner is operating. (Doing so may cause discomfort and electrical shock.) Never touch the stainless steel bath or cleaning solution.
- Page 6 Warnings & Cautions Warnings Never allow fluid temperature to exceed 70℃ Never use solutions containing chlorine bleach...
- Page 7 Warnings & Cautions Cautions Never operate the cleaner without liquid in the bath. Do change your solution regularly. Never place parts or containers directly on the bottom of the cleaning bath. Use a tray or wire to suspend items. Failure to comply may cause transducer damage and will void warranty.
-
Page 8: What Is The Ultrasonic Cleaning
What is the Ultrasonic Cleaning? Ultrasonic cleaning is faster, more effective method for reducing the cleaning time and cost than any other methods - scrubbing soaking, steam and so on. Ultrasonic sound is sound transmitted at frequencies beyond the range of human hearing. -
Page 9: Name And Function Of Each Part

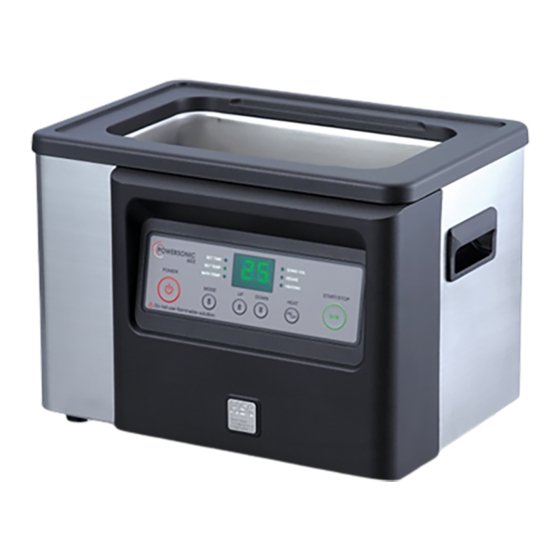

Name and Function of each part Control Panel LED Display : Indicates the operating time, set temperature, bath temperature, sonic volume, degassing time, and sweep level depending on your MODE choice. SET TIME : To set the operating time (Allows timer to be set from 1 to 99 minutes) SET TEMP : To set the bath temperature (Allows the required bath temperature to be set from ambient to 70℃) BATH TEMP : Displays the current solution temperature. -
Page 10: Operating Method
Operation Method 1. Place the cleaner on a flat surface. 2. Connect a hose to the drain at the rear side of the unit. 3. Fill the bath with water. The liquid should come to within 3Cm from the top of the bath, considering the volume of items to be cleaned. -
Page 11: Optimum Condition For The Best Results
Only use non-flammable solutions and water-based solutions. Hwashin cleaner was designed to operate only with the water-based solutions and non- flammable solutions. Water-based solutions fall into two categories - acidic and alkaline. They... -
Page 12: Troubleshooting Guide
Cleanion Solutions Acidic water-based solutions : remove rust, tarnish or scale. Alkaline water-based solutions : Mild : Light oils, greases, cutting oils, coolant compounds. Mild to strong : Heavy greases and oil, waxes, vegetable oils, inks, milk residues. Heavy-duty : Mill scale, heat-treat scale, corrosion or oxides. Troubleshooting Guide If your cleaner does not operate satisfactorily, please check the tables below for possible causes before calling your service center. -
Page 13: Specifications
Hwashin ultrasonic cleaners, when used in accordance with manufacturer’s instructions and under normal use, are guaranteed for one year after date of shipment. Within the period guar- anteed, Hwashin tech Co., Ltd will repair or replace free of charge, all parts that are defective because of material or workmanship. - Page 14 Warranty & Service Service Warning You will void warranty if you disassemble your cleaner. High voltage inside the cleaner is dangerous. With normal use, your ultrasonic cleaner should not require servicing. However, if it fails to operate satisfactorily, first try to diagnose the problem by following the suggestions in the Troubleshooting Guide.
- Page 16 Head Office : #10, Nonhyeon-ro 81-gil, Gangnam-gu, Seoul 06237, Korea Tel : 82-2-3450-5605 Fax : 82-2-3450-5700 : #680-9, Poeun-daero, Gwangju-si, Gyeonggi-do 12779, Korea Factory Tel : 82-31-765-2530 Fax : 82-31-765-2540 Website : www.hwashintech.co.kr E-mail : tech@hwashin.net...
