Summary of Contents for KegLand KL1839

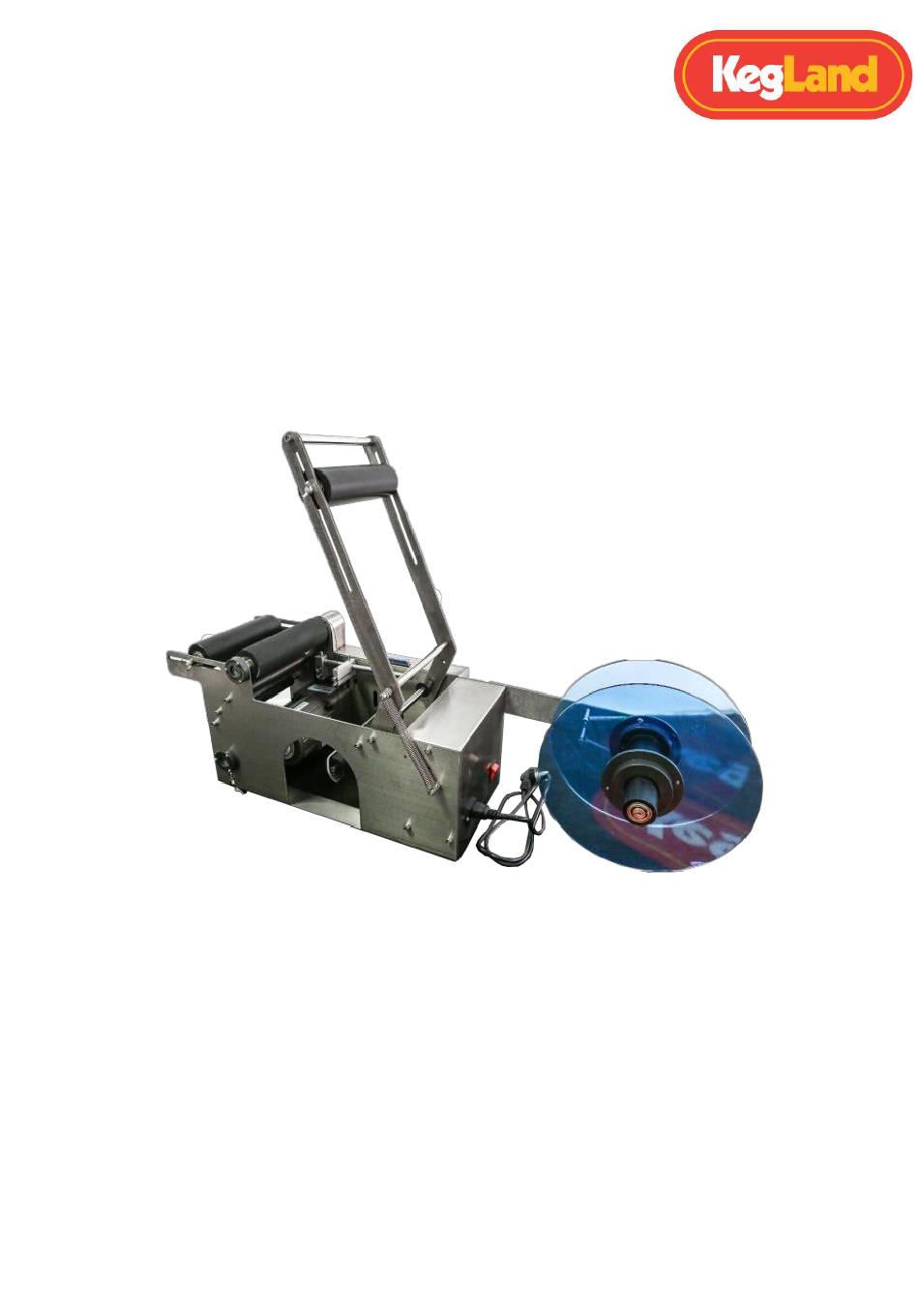

- Page 1 Label Applicator Machine Instruction Manual Label Applicator Machine Instruction Manual KL18319 KegLand Distribution PTY LTD www.KegLand.com.au www.KegLand.com.au Last Updated 28/09/2020 11:52 AM Page 1 of 8...
-
Page 2: Initial Setup
Step 2. Assemble the paper tray as shown below and secure the position of the two perspex disks with a socket head screw, to secure the paper roll in place between the Perspex disks. www.KegLand.com.au Last Updated 28/09/2020 11:52 AM... - Page 3 Step 3. Feed paper through the machine in the direction of the red line as shown below: 1. Feed the label under the guide rod and adjust the guide disks according to the height of the label Guide rod Guide disks www.KegLand.com.au Last Updated 28/09/2020 11:52 AM Page 3 of 8...
- Page 4 The wing nuts can then be tightened and the second soft pull roller rotated to feed the label through these two rolls and underneath the knurled pull roller. www.KegLand.com.au Last Updated 28/09/2020 11:52 AM Page 4 of 8...
- Page 5 The peeling plate should be as close as possible to the labelling soft roller, but not touching. www.KegLand.com.au Last Updated 28/09/2020 11:52 AM Page 5 of 8...
- Page 6 Activation of the microswitch can be identified by an audible clicking sound. Touch rod screw Adjust the amount of thread showing here to alter when the microswitch is activated www.KegLand.com.au Last Updated 28/09/2020 11:52 AM Page 6 of 8...
-
Page 7: Operation
5. Press set again at the position on the label which displays the highest number. NOTE: the numbers displayed on your screen may be significantly different to the numbers on the images above. www.KegLand.com.au Last Updated 28/09/2020 11:52 AM Page 7 of 8... - Page 8 For a full terms and conditions, please visit our website here -> Terms & Conditions For technical support with the Label Applicator Machine please email www.KegLand.com.au Last Updated 28/09/2020 11:52 AM Page 8 of 8...
