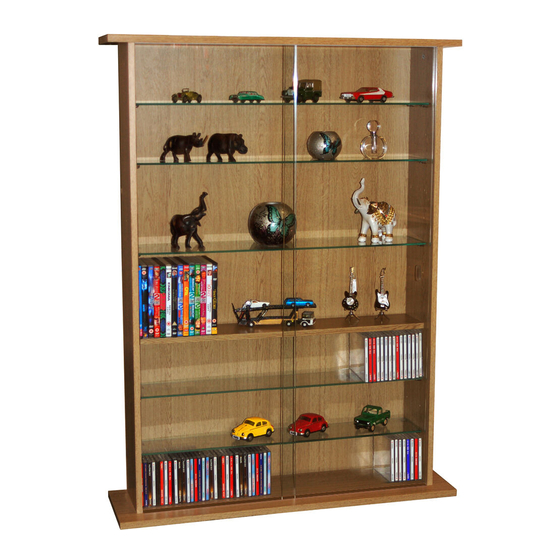

Boston - Display Cabinet
Dimensions
Width - 92cm
Depth - 24cm
Height - 123.5cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts,
email us at techstyle.spares@stadiumcp.co.uk
- Please keep for future reference
MS0640
MS0641
MS0642
Issue 1 - 27/03/2015
Advertisement
Table of Contents
Related Manuals for Stadium Boston MS0640
Summary of Contents for Stadium Boston MS0640
- Page 1 Boston - Display Cabinet Assembly Instructions MS0640 - Please keep for future reference MS0641 MS0642 Dimensions Width - 92cm Depth - 24cm Height - 123.5cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, email us at techstyle.spares@stadiumcp.co.uk Issue 1 - 27/03/2015...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • We do not components and tools listed on the product, this could cause recommend the page 2.
- Page 3 If you have damaged or missing components, Components email us at techstyle.spares@stadiumcp.co.uk Please check you have all the panels and fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi...
- Page 4 Assembly Instructions Step 1 Assemble frame Insert 4 x wooden dowel , 2 in each end, into fi xed shelf Insert 1 x camlock bolt into left side Insert 1 x camlock nut into fi xed shelf with the arrow pointing to the nearest edge.
- Page 5 Assembly Instructions Step 1 cont. 3.X6 Assemble frame Attach base assembled frame using 6 x large screws shown. Note: Start with the corners and keep Place unit on its front. checking that the unit is square before To attach the back panel adding the remaining to the back of the tacks.
- Page 6 Assembly Instructions Step 2 Warning: handle Adding shelves glass Warning: with care Handle glass shelves with care 7.X24 Insert 4 x shelf support into level holes - two on each side of the desired shelf position. Insert glass shelf resting it on the shelf supports .
- Page 7 Note: make sure you use wall plugs suitable for your type of wall. Assembly is complete. If you need any help or have damaged or missing parts, email techstyle.spares@stadiumcp.co.uk Techstyle Spares, Stadium North, Tofts Farm Industrial Estate, Brenda Road, Hartlepool, TS25 2DH...
- Page 8 A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your product: tradesperson if you are unsure.
