Introduction

Thank you for purchasing the MicroTech DMX.
The MicroTech DMX is a powerful, yet simple to use multi-purpose hand-
held DMX receiver/transmitter. Its useful functions for debugging prob-
lems, testing equipment and controlling fixtures, combined with its small
size, light weight and battery operation makes it a perfect addition to your
toolbox.
The MicroTech DMX's features make it easy to:
Debug console output by viewing the actual output levels of
each dimmer channel
Test dimmers and other fixtures without a console or controller
Record and playback up to 30 scenes (snapshots) for automatic
console backup and/or for testing fixtures
Locate patched output channels of a console using the channel
finder function
Detect errors on the DMX data-link, caused by faulty cables or
other interference
View other console parameters, such as DMX packet length and
update rate
2 MicroTech DMX User's Manual

Getting Started

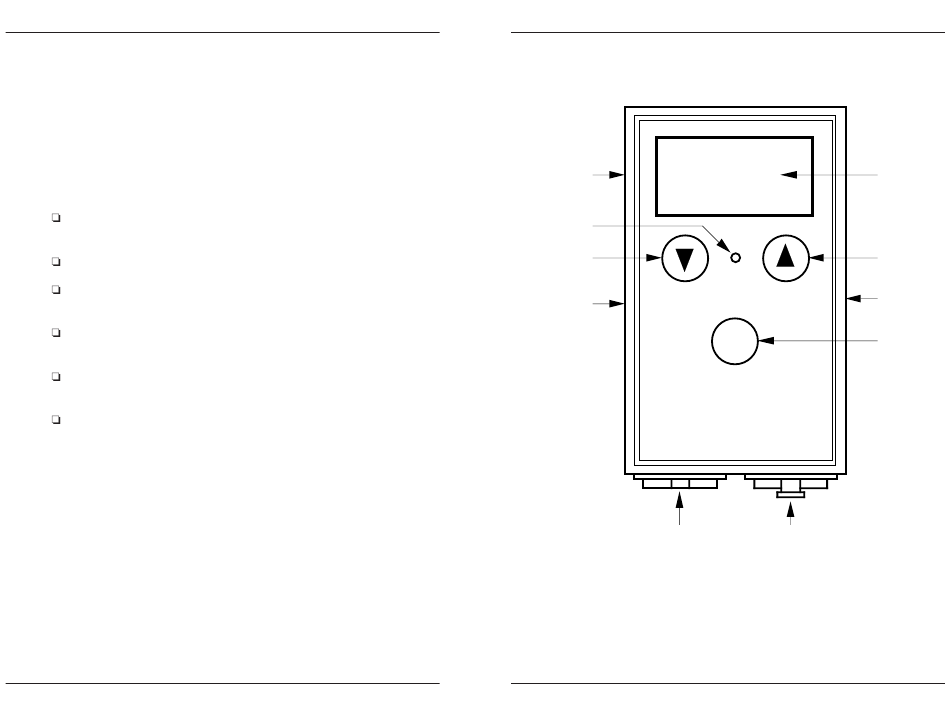

The following figure shows the basic layout of the MicroTech DMX:
Battery
Compartment
(underneath)
Status
LED
Down
Button
Down
Power
On/Off
Switch
microTech
Data Link Receiver/Transmitter
Interactive Technologies, Inc.
DMX Input
DMX Input
Connector
MicroTech DMX User's Manual
LED
Display
Up
Button
Status
Up
AC Power
Input
Mode
Mode
Button
™
D D M M X X
DMX Output
DMX Output
Connector
3
