Summary of Contents for Alamo Superior LNT Series
-
Page 1: Operational Safety Instructions

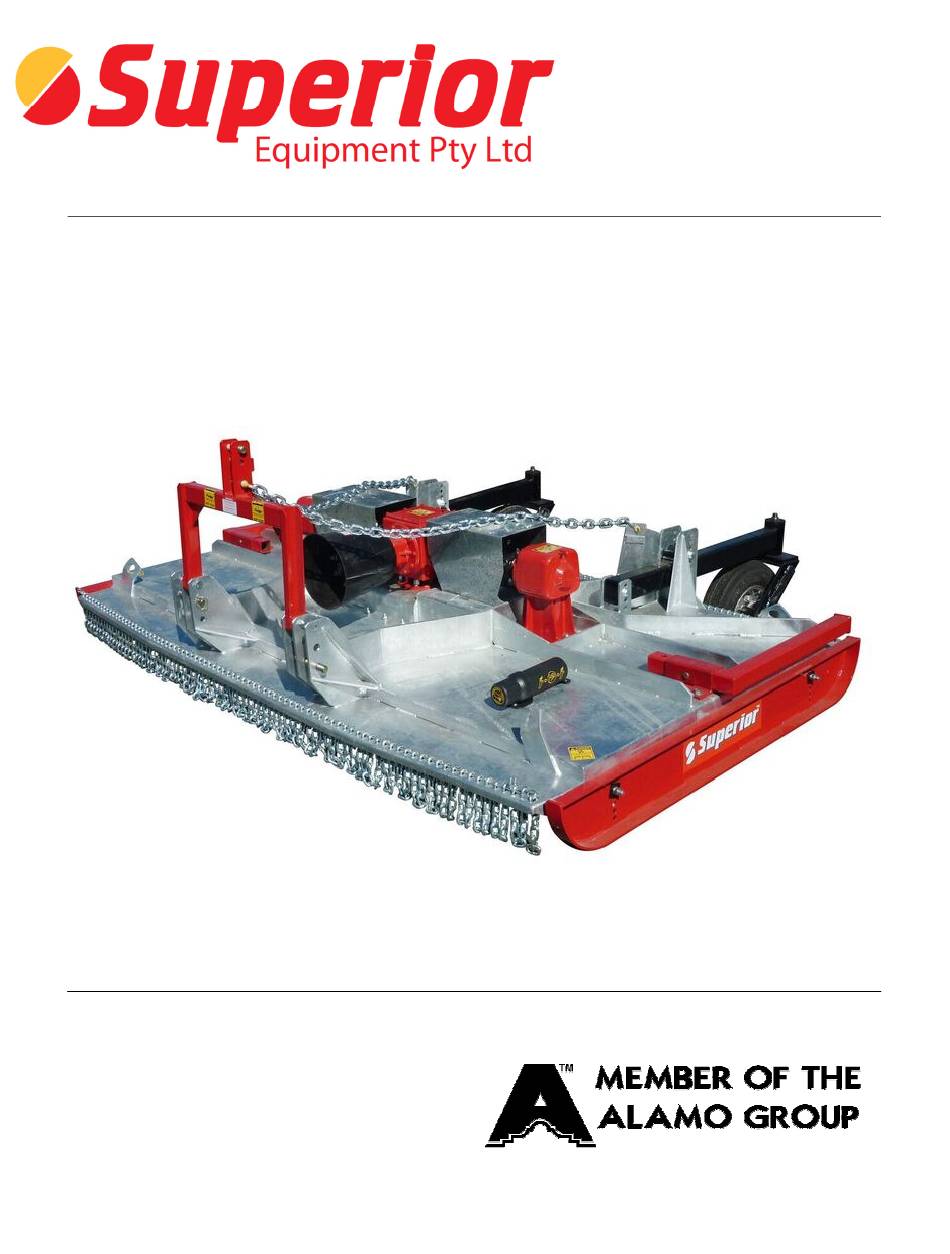

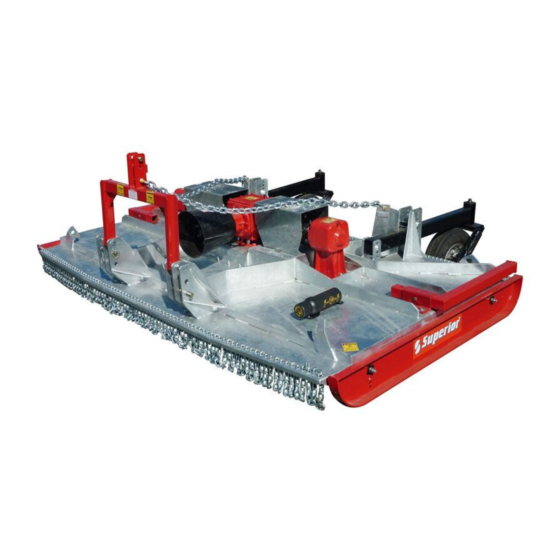

LNT SERIES LNT 10, LNT12 OPERATOR & PARTS MANUAL SUPERIOR EQUIPMENT Phone: (07) 4691 1500 Email: sales@alamoag.com.au Website: www.superiorequipment.com.au (c) 2017 Superior Equipment Pty Ltd... - Page 2 LNT SERIES TWIN ROTOR MEDIUM HEAVY DUTY Model Width Weight HP (Min) LNT 10 3.0m / 10’ 1,050 kg LNT12 3.6m / 12’ 1,250 kg Specifications • TPL with Cat 1 & 2 • Flex Tower • Front & Rear Safety Chains •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS CORPORATE PHILOSOPHY..........3 INSTRUCTION MANUAL & SPARE PARTS LIST ..... 4 WARRANTY CONDITIONS..........6 LIABILITY & LEGAL ISSUES ..........7 DEALER PRE-DELIVERY AND INSTALLATION CHECKLIST ................. 8 OPERATIONAL SAFETY INSTRUCTIONS ......9 OPERATING INSTRUCTIONS .......... 12 INITIAL START UP ......................... 12 Attaching Tractor ...................... -
Page 4: Operating Instructions
OPERATING INSTRUCTIONS Getting the best from your Superior Slasher INITIAL START UP Check Gearboxes for oil: Recommended OIL: 85w - 140 EP GEAR OIL Grease all grease points: Recommended Grease: All Purpose Grease EPL 2 Attaching Tractor Connect tractor to TPL lower link pins. The slasher is fitted with a stepped pin which will fit either cat 1, 22 mm ( 7/8”... -
Page 5: Setting Up Your Slasher
Tighten anti-sway bars / chains (must be firm, not rigid Connect top link to tower. Connect driveshaft to P.T.O. on tractor and clutch / gearbox on slasher, make sure clamp bolts and or Q.R. pins are located in respective grooves. (Failure to do this will result in driveshaft damage). -
Page 6: Operation
Use the rear wheel adjustment to set the correct stance of the Slasher - lower at the front, higher at the rear. Adjust the top link to allow the slasher to hinge at the tractor lower lift arms, so that the slasher can follow reasonable ground contours. If top link is too short the slasher will tend to lift off the ground resulting in an uneven cut. -
Page 7: General Maintenance
€ Tighten (increase spring tension) or loosen (decrease spring tension) adjusting nut by 3/4 turn on each nut. € Make sure each of the nuts is adjusted in turn. € Do up lock nuts € Refer back to Clutch Settings CAUTION: If clutch is too tight (cold) and there is no opportunity for clutch slip, costly damage to components may result. -
Page 8: Lnt 10 Series Assembly
LNT 10 SERIES ASSEMBLY © 2017 SUPERIOR EQUIPMENT PTY LTD... - Page 9 © 2017 SUPERIOR EQUIPMENT PTY LTD...
- Page 10 LNT 10 SLASHER BODY COMPLETE S02097 REVISION A FROM 06/2015 REF NO PART NO DESCRIPTION MI00034-6 DECAL “ROTATING DRIVELINE” MI00034-1 DECAL “SUPERIOR” (BIG) MI00034-2 DECAL “CHECK OIL LEVEL” MI00034-3 DECAL “KEEP CLEAR OPEN DISCHARGE” MI00034-5 DECAL “ROTATING BLADES” MI00034-8 DECAL ‘THIS COVER MUST NOT BE REMOVED” MI00035-6 DECAL “MANUFACTURED BY”...
- Page 11 S08346 WIRE FERRULE 8 DIA S08510 FABRICATED SLASHER BODY S09086 ADAPTOR COUPLING AND CLUTCH ASSEMBLY S09087 SLIP CUTCH ASSEMBLY 4 PLATE ST02231 CENTRE GEARBOX PLATE ST02234 BOTTOM COVER PLATE © 2017 SUPERIOR EQUIPMENT PTY LTD...
- Page 12 © 2017 SUPERIOR EQUIPMENT PTY LTD...
-
Page 13: Lnt 12 Series Assembly
LNT 12 SERIES ASSEMBLY © 2017 SUPERIOR EQUIPMENT PTY LTD... - Page 14 LNT 12 SLASHER BODY COMPLETE S02380 REVISION A FROM 06/2015 REF NO PART NO QTY DESCRIPTION MI00034-6 DECAL “ROTATING DRIVELINE” MI00034-1 DECAL “SUPERIOR” (BIG) MI00034-2 DECAL “CHECK OIL LEVEL” MI00034-3 DECAL “KEEP CLEAR OPEN DISCHARGE” MI00034-5 DECAL “ROTATING BLADES” DECAL ‘THIS COVER MUST NOT BE MI00034-8 REMOVED”...
- Page 15 S08346 WIRE FERRULE 8 DIA S08511 FABRICATED SLASHER BODY S08548 WIRE ROPE 8 DIA S09087 SLIP CLUTCH ASSEMBLY 4 PLATE ST02231 CENTRE GEARBOX PLATE ST02234 BOTTOM COVER PLATE © 2017 SUPERIOR EQUIPMENT PTY LTD...
-
Page 16: Lnt 10 Cutting Head Assembly
LNT 10 CUTTING HEAD ASSEMBLY LNT 10 CUTTING HEAD ASSEMBLY TOP SHORT S08130 REVISION A FROM 06/2015 PART DESCRIPTION DOME HEAD BOLT ¾ UNC X 3 ½” S08127 LONG S05067 NYLOC NUT ¾ UNC S04051 CUTTING HEAD ADAPTOR S02424-2 BLADE 75X10 SHORT 1 ½” STEP S02143 BLADE 75X16 3”... - Page 17 HEADFLAT SQUARE HOLE 75 X 10 27” S02112 LONG S05066 HEX BOLT ¾ UNF X 4” LONG © 2017 SUPERIOR EQUIPMENT PTY LTD...
- Page 18 LNT 10 CUTTING HEAD ASSEMBLY BOTTOM S08129 SHORT REVISION A FROM 06/2015 REF NO PART NO DESCRIPTION HEADFLAT SQUARE HOLES 75 X S02112 10 27” LONG S02143-2 BLADE SHORT 14” 75 X 16 3” STEP S02424 BLADE 20” 75 X 10 1½” STEP S04051 CUTTING HEAD ADAPTOR 75HP S04057...
- Page 19 S05067 NYLOC NUT ¾ UNC S05069 BLADE BUSH 16MM DOME HEAD BOLT ¾ UNC X 3 ½” S08127 LONG © 2017 SUPERIOR EQUIPMENT PTY LTD...
-
Page 20: Lnt 12 Cutting Head Assembly
LNT 12 CUTTING HEAD ASSEMBLY LNT 12 CUTTING HEAD ASSEMBLY TOP SHORT S08128 REVISION A FROM 07/2015 PART NO DESCRIPTION S02143 BLADE 75X16 3” STEP S02424-2 BLADE 75X10 11/2” STEP S03393 HEX BOLT ¾ UNF X 3 ½” LONG S03395 HEX BOLT ¾... - Page 21 DOME HEAD BOLT ¾ UNC X 3 ½” S08127 LONG © 2017 SUPERIOR EQUIPMENT PTY LTD...
- Page 22 LNT 12 CUTTING HEAD ASSEMBLY BOTTOM SHORT S08131 REVISION A FROM 07/2015 REF NO PART NO DESCRIPTION S02143-2 BLADE SHORT 75X16 3” STEP S02424 BLADE 75X10 20” LONG 1 ½” STEP S03393 HEX BOLT ¾ UNF X 3 ½” LONG S03395 HEX BOLT ¾...
- Page 23 © 2017 SUPERIOR EQUIPMENT PTY LTD...
- Page 24 LNT 10 ADAPTOR COUPLING & CLUTCH ASSEMBLY ADAPTOR COUPLING & CLUTCH ASSEMBLY S09086 REVISION A FROM 07/2015 PART REF NO QTY DESCRIPTION S01033 NYLOC NUT 5/8”UNC S03542 HEX BOLT 5/8 UNC 3 ½” LONG S04249 SPRING WASHER M 14 X 3.5MM S04958-2 HEX BOLT M 14 X 50MM LONG S04959...
-
Page 25: Lnt 10 & 12 Castor Assembly
LNT 10 & 12 CASTOR ASSEMBLY CASTOR BEAM AND WHEEL ASSEMBLY S08189 REVISION B FROM 06/2015 PART REF NO QTY DESCRIPTION S01008 WASHER 1 ¼” X T6 S01100 NYLOC NUT 1” UNF THIN S01804 1” HEAVY FLAT WASHER S02223 BEARING TPR ROL LM67048 LM67000 S02225 HEX NUT 7/16 UNF S02237...
