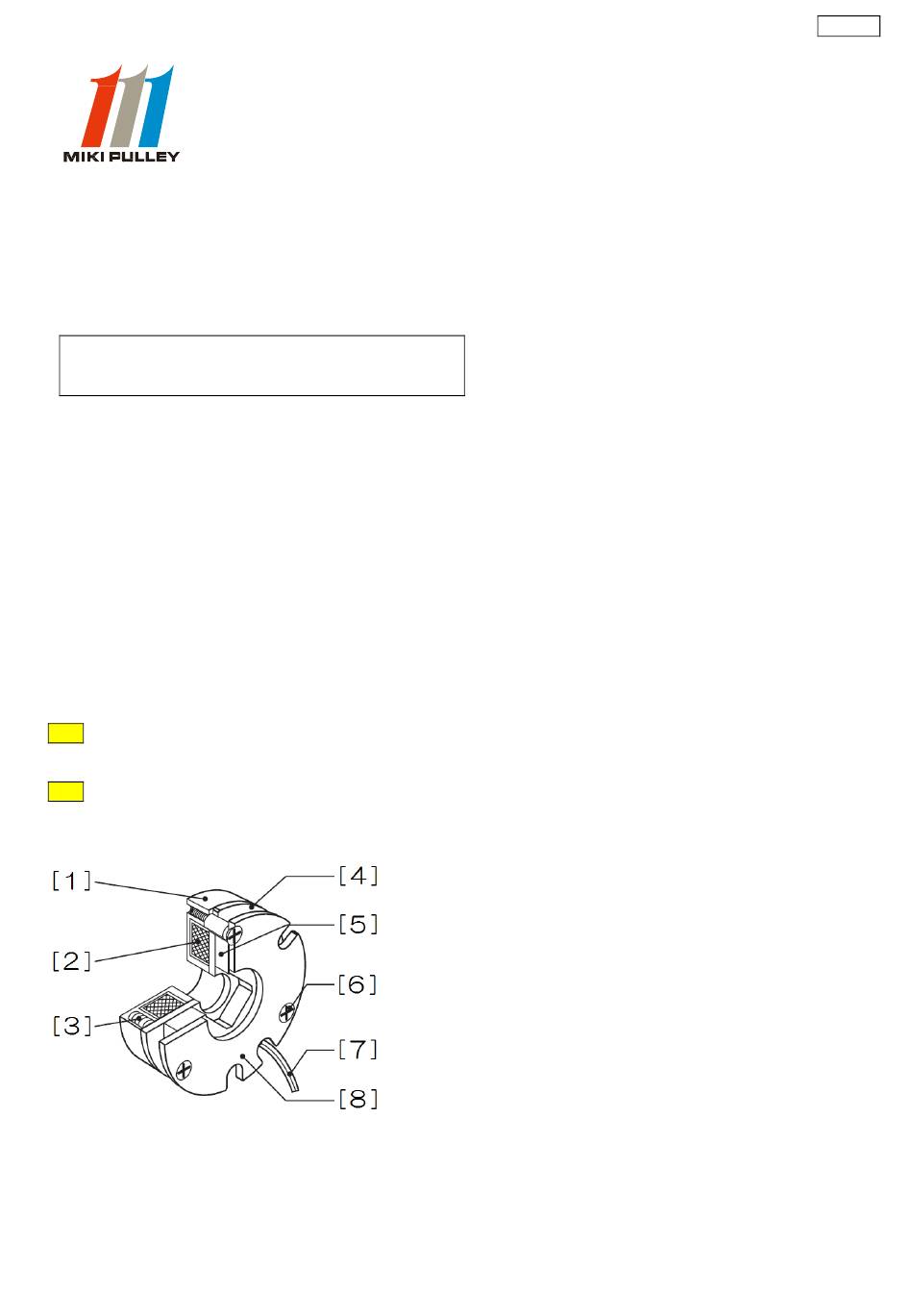

ELECTROMAGNETIC CLUTCH & BRAKE
ＳＰＲＩＮＧ－ＡＣＴＵＡＴＥＤ ＢＲＡＫＥ
ＢＸＲ ＬＥ
Instruction Manual
☆This instruction manual describes mainly installation, removal, and notes pertaining to same for
standard-specification products after purchase; see the Miki Pulley website and our latest catalog for product
specifications and performance.
☆Before use this product, read the instruction manual carefully and use the product safely and correctly.
☆First, please check that it is the correct product and if the product was damaged during transportation.
CONTENTS
１．STRUCTURE AND PARTS
２．NOTES
１．STRUCTURE AND PARTS
This product is used for holding only. Do not use for braking.
The rotor hub used to couple the shaft and rotor can either be provided by the customer or selected from the
optional products.
［１］Stator ［２］Coil ［３］Torque spring ［４］Armature ［５］Rotor ［６］Flat head bolt ［７］Lead wires ［８］Plate
MIKI PULLEY／TRS-BXRL-E-001H-00／MD-000100241
1
－
－
BXR LE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BXR LE and is the answer not in the manual?

Questions and answers

Summary of Contents for Miki Pulley BXR LE

  • Page 1: Table Of Contents

    Instruction Manual ☆This instruction manual describes mainly installation, removal, and notes pertaining to same for standard-specification products after purchase; see the Miki Pulley website and our latest catalog for product specifications and performance. ☆Before use this product, read the instruction manual carefully and use the product safely and correctly.
  • Page 2 MIKI PULLEY／TRS-BXRL-E-001H-00／MD-000100241 BXR LE ２．NOTES ２．１ SAFETY PRECAUTIONS Please read carefully through the instruction manual and the technical information for proper use and safety. In this manual, safety precautions are classified by "DANGER" and "CAUTION". 【CLASS】 DANGER When death or serious injury may result by mishandling.
  • Page 3 MIKI PULLEY／TRS-BXRL-E-001H-00／MD-000100241 BXR LE ２．２ IMPORTANT POINTS OF PRODUCT SPECIFICATIONS Do not use the product in a bad Request disposal with a environment. waste-collection company, or dispose Product is for dry use; do not allow of according to laws and regulations.

  • Page 4: ３．Specification，Structure，Dimensions (Controller)

    MIKI PULLEY／TRS-BXRL-E-001H-00／MD-000100241 BXR LE Affix the rotor hub so that it does not Implement screw-locking measures come in contact with the armature or such as an adhesive thread-locking stator. Do not insert the rotor hub compound to bolts and screws used to forcefully.

  • Page 5: Note

    MIKI PULLEY／TRS-BXRL-E-001H-00／MD-000100241 BXR LE ３．３ DIMENSIONS ４．MOUNTING (BRAKE) ４．１ ACCURACY OF BRAKE ATTACHMENT SURFACES Make sure that the centering mark and shaft concentricity (X) and the shaft perpendicularity (Y) relative to the brake mounting surface do not exceed the allowable values in the table below.
  • Page 6 MIKI PULLEY／TRS-BXRL-E-001H-00／MD-000100241 BXR LE （２） Affix the rotor hub on the shaft. Position the rotor hub so that it does not come in contact with the armature. For rotor hub (set screw type (C)), affix it with hexagon socket set screws so that it does not move in the axial direction.

  • Page 7: ５．Connection

    MIKI PULLEY／TRS-BXRL-E-001H-00／MD-000100241 BXR LE ５．CONNECTION ５．１ CONTROLLER The product is designed to be used together with a dedicated controller. Connect the lead wire with a crimp terminal, etc. However, when extending the lead wire, ensure that both the INPUT and OUTPUT lengths are 1000 mm or less.

  • Page 8: ６．Operation Check

    MIKI PULLEY／TRS-BXRL-E-001H-00／MD-000100241 BXR LE ６．OPERATION CHECK ６．１ BRAKE OPERATION CHECK After completing installation and wiring, first operate the brake without transmitting power to check that it operates normally. If operation is normal, engage the brake with the driving side. Use caution, as fingers can be caught with only the operation of the brake.

  • Page 9: ７．Maintenance & Inspection

    Please contact us using the inquiry form and be aware that support for inquiries received on Saturdays, Sundays, holidays, New Year's, and summer business holidays will be provided on the next business day. Contact by phone Japanese/English Miki Pulley International Business Department TEL +81-46-257-5109 － －...
