Summary of Contents for MOBILUS MOTOR EP

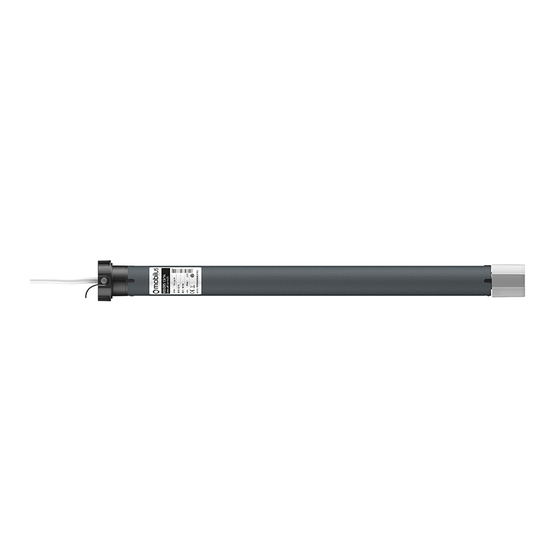

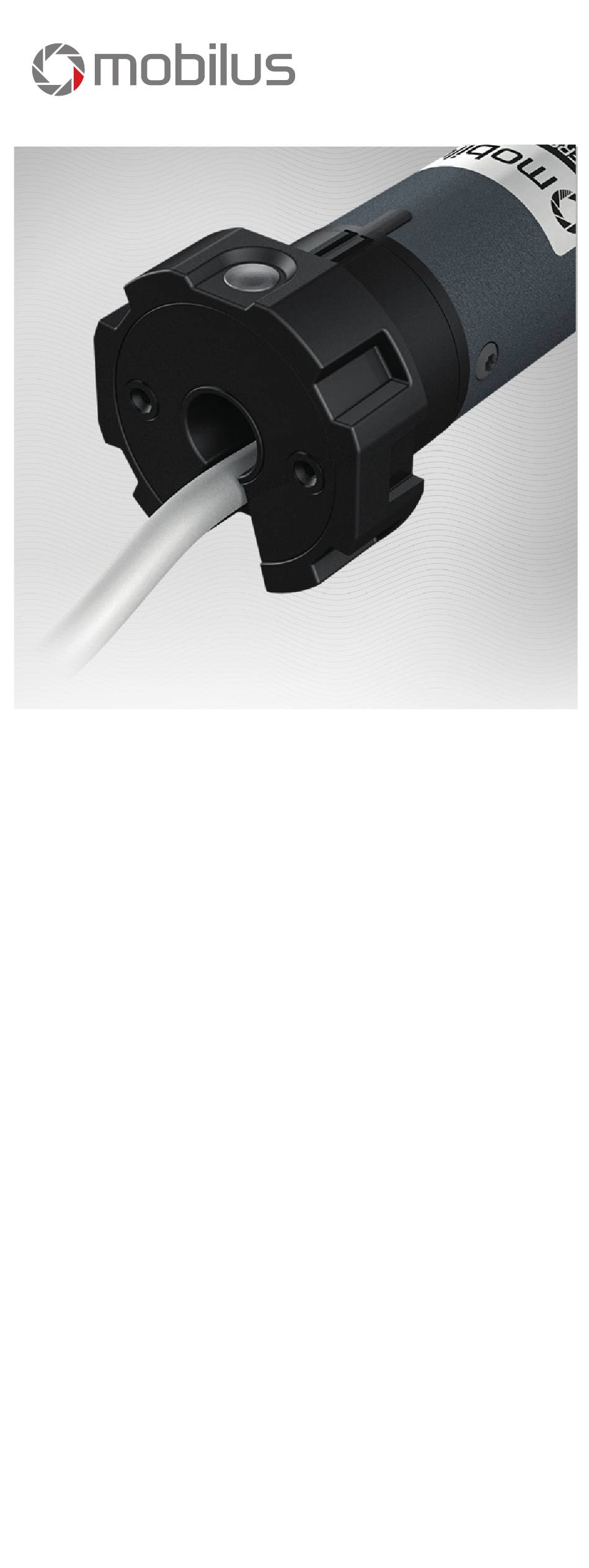

- Page 1 USERS MANUAL FOR PROGRAMMING THE PLUG & ROLL EP TUBULAR MOTOR MOBILUS MOTOR Spółka z o.o. ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 VAT NO. PL9721078008 www.mobilus.pl Version 1.2, 2018-11-09...
- Page 2 The MOBILUS EP motor should only be powered from the power grid meeting the appropriate stan- dards. It is forbidden to connect the MOBILUS EP motor to all types of generators / power generators. The MOBILUS EP motor enables setting the end limit switches in the AUTOMATIC MODE – using the buffers is required.
- Page 3 5. SAFETY RULES • Approaching to the moving roller blind is not allowed till it is completely closed. The technical data of the tubular motor are given on its data plate. The minimal pipe diameter in which the installation of the tubular motor is possible is 40 mm. 6.
- Page 4 If the switch limits are set correctly, disconnect the PROGRAMMING WIRE from the power supply and then from the EP motor. Connect the EP motor according to the diagram - point 6 of the manual. 9. SETTING OF THE LIMIT SWITCHERS – AUTOMATIC MODE ATTENTION!!!Using spring roll hangers and buffers in the endslat or stoppers in the slides is required.
- Page 5 – fig. 10.2a. The motor works alternately – once up and once down. fig. 10.2 4. If the end position is set correctly, Press and hold the DIRECTION 1 button – the MOBILUS EP motor will make visible, audible up/down micro motion and it will save the end position - fig.
- Page 6 1. Start to raise or lower the shutter armor – fig. 14.1.a or fig. 14.1.b. 2. While the motor is working press and hold the settings BUTTON placed in the EP motor head. The motor will stop. Hold the button until the moment when the EP motor makes a noticeable, audible single down / up motion sequence –...
- Page 7 3. Hold the PROGRAMMING BUTTON until the second led goes out and the third led lights up – fig. 15.1b. EP motor will make a down / up motion sequence – fig. 15.1.c. The EP tubular motor has been restored to the factory settings.
- Page 8 SELECTION CHARTS MOBILUS M35 φ 40 mm φ 50 mm 1,5 m 2,5 m 3,0 m 1,5 m 2,5 m 3,0 m [ Nm ] [ rpm ] [ kg ] [ kg ] [ kg ] [ kg ] [ kg ] [ kg ] MOBILUS M45...
