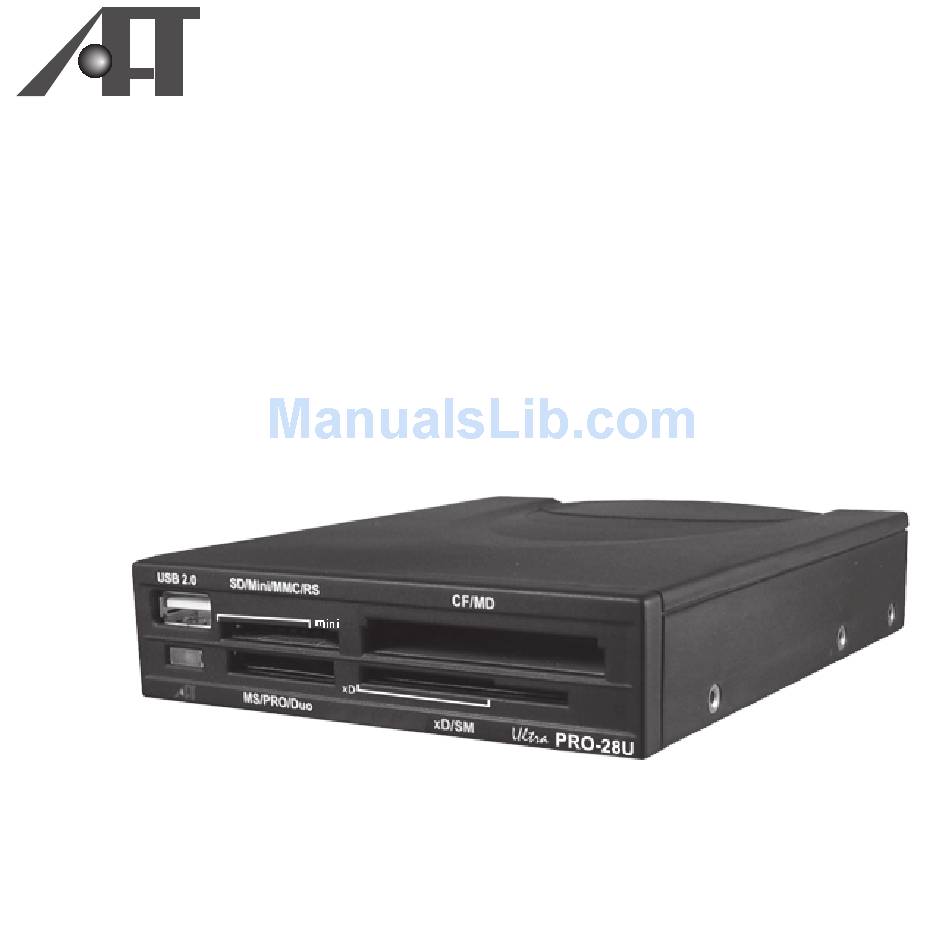

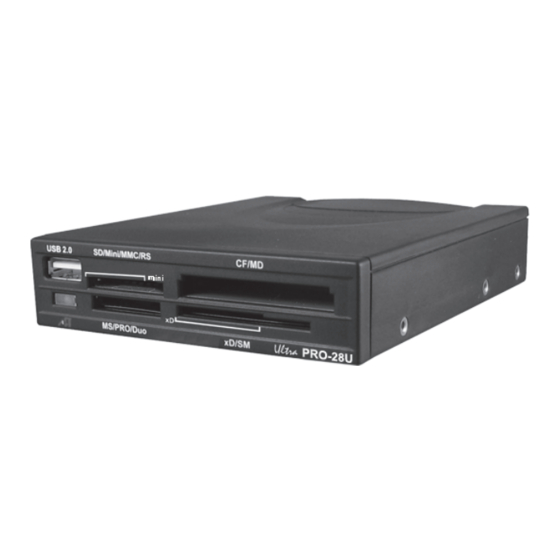

- Page 1 Atech Flash Technology, Inc. PRO-28U User's Guide Guide de l'utilisateur...
- Page 2 This guide will explain the features and specifications of your new media reader, as well as the installation in a few simple steps. Please retain this guide for further reference. Convenient features like fully Plug-and-Play make it easy to setup PRO-28U in your computer.
-
Page 3: Package Contents
Package Contents PRO-28U Internal USB 2.0 Cable x 2 - Connects PRO-28U to USB pin headers on motherboard. External USB 2.0 Cable - Connects from PRO-28U unit to any available USB port in Computer. **If you want to use the Front USB option, you will need an addtional USB cable**... -
Page 4: Installation
Windows 98SE or Windows 2000 users: Driver installation is required. Please perform software setup first before using the PRO-28U. This is an USB 2.0 device and it is backward compatible with USB 1.1 interface. However, USB 1.1 performance can only be expected when connected to a USB 1.1. - Page 5 (1) Close all applications that are running, including applications running in the background. (2) Insert AFT Setup CD into CD-ROM drive and locate setup.exe file in PC setup folder. (3) Double click on setup.exe will lead you into setup program.
- Page 6 Connecting Card Reader 1. Open computer case cover. Please refer to your computer manual if necessary. 2. Insert PRO-28U into empty 3.5" drive bay. 3. Apply screws on each side of unit to secure to chassis. 4. Connect Internal USB cables to unit then to Motherboard USB header pin 5.
- Page 7 Therefore, we shall have: Red wire goes to pin 1 White wire goes to pin 2 Green wire goes to pin 3 Black wire goes to pin 4 Comparing the default wire setting on the Internal USB cable, no wire reassignment is necessary.
- Page 8 Using PRO-28U Using PRO-28U is similar to using a floppy drive. Simply insert your media card into the slot and click on the appropriate Removable Disk icon in My Computer, it will allow you to access your media card like a disk.
-
Page 9: Specifications
Specifications 4.02 inch x 1 inch x 4.92 inch / 102 mm x 25 mm x 125 mm Dimension (W x H x D): 5V DC, 500mA (USB bus power) Power Requirement: Memory Stick PRO, Memory Stick PRO Duo, Memory Stick PRO MG Supported media format: Memory Stick, Memory Stick Duo MG, Memory Stick Select, Memory Stick Duo Magicgate Memory Stick*, Magicgate Memory Stick Duo, Memory Stick Rom... -
Page 10: Limited Warranty
AFT shall either repair, or replace defective product. AFT shall not be liable for any losses or damages of any kind resulting from the use of AFT products or for any of Customer's data stored on products returned to AFT for service. AFT accepts no liability for and provides no expressed or implied warranty against any loss of data or images.
