Summary of Contents for Dipol TG1

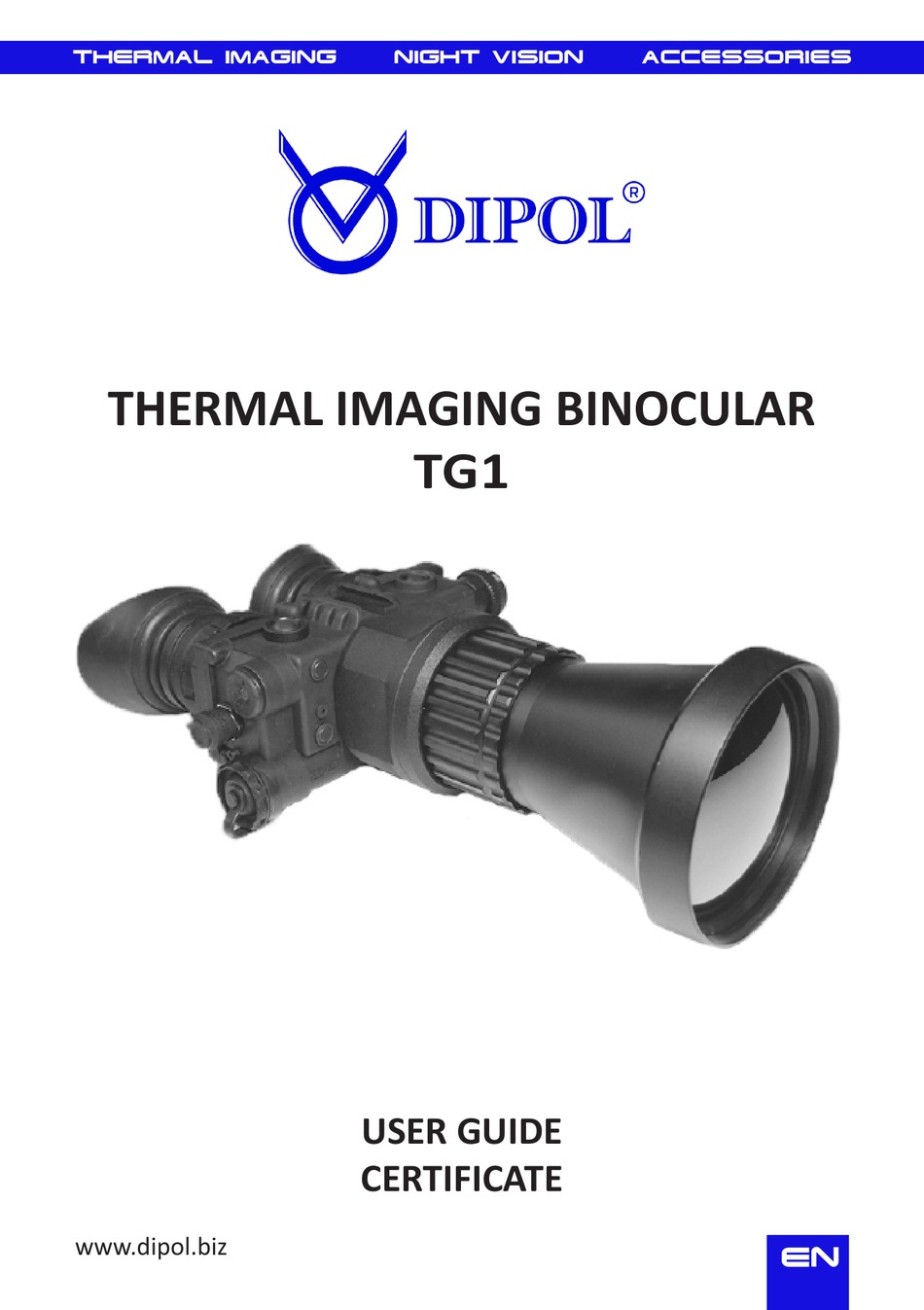

- Page 1 THERMAL IMAGING BINOCULAR USER GUIDE CERTIFICATE www.dipol.biz...
-
Page 2: Table Of Contents
1. Package 2. Precautions 3. Purpose 4. Technical characteristics 5. Design and control 6. Setting-up procedures and performance inspection 7. Use of additional accessories 8. Possible defects 9. Storage and transportation 10. Quality test certificate 11. Warranty 12. Manufacturer www.dipol.biz... -
Page 3: Package
1. Package Thermal binocular TG1 1 pc. Objective Case 1 pc. User guide (certificate) 1 pc. 2. Precautions • Protect the device from shock. • Don’t wipe objective and eyepiece lenses with hard abrasive materials. • Don’t store the device with power sources. -
Page 4: Technical Characteristics
-40 … +50 Degree of protection according to IPX5 (IPX7) IEC 60529 (optional) Dimensions, mm 213x139x66 213x139x70 Weight, kg Plug for external power supply present Manual adjustment of sensor present reinforcement Manual adjustment of present microdisplay brightness Video output present www.dipol.biz... -
Page 5: Design And Control
4. On/off-switcher 5. Eyepieces with diopter adjustment rings 6. Objective 7. Objective adjustment ring 8. Outer power source slot 9. Video output 10. Gain/brightness adjustment 11. Digital zoom button 12. Image polarity button 13. Cartridge of dehydrator 14. Switch-on indicator www.dipol.biz... -
Page 6: Setting-Up Procedures And Performance Inspection
GAIN (10) handle in order to turn to sensitivity adjustment mode), after it rotate gain/brightness adjustment handle GAIN (10). It is adjusted in the way the data changes in the message line. In order to adjust micro display brightness press shortly gain/brightness www.dipol.biz... -
Page 7: Use Of Additional Accessories
It may lead to greater failures and warranty loss. Turn to the vendor or to the manufacturer. www.dipol.biz... -
Page 8: Storage And Transportation
Transportation conditions depend on climatic factors (temperature -50 - + 50 °С, relative humidity not more than 98 % at 25 °С). Device can be transported by any kind of transport, in roofed vehicles according to transportation rules at the given kind of transport. www.dipol.biz... -
Page 9: Quality Test Certificate
• Warranty period constitutes 12 months. • Manufacturer repairs the binocular or changes it in case of producer - caused failure during warranty period. www.dipol.biz... -
Page 10: Manufacturer
12. Manufacturer Scientific-productive firm «Dipol» Lazo str. 115А 210033 Vitebsk Republic of Belarus Tel. +375 212 53 00 63 Fax. +375 212 53 00 68 WEB: http:// dipol.biz Email: contact@dipol.biz www.dipol.biz... - Page 11 For notes www.dipol.biz...
- Page 12 Scientific-productive firm "Dipol" Lazo str. 115А 210033 Vitebsk Republic of Belarus Tel. +375 212 53 00 63 Fax. +375 212 53 00 68 WEB: http:// dipol.biz: Email: contact@dipol.biz...
