Multifunction metering device

70830-0010 E3-DMM-5T-2

Operation manual

Table of Contents

Need help?

Do you have a question about the E3-DMM-5T-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for EFEN E3-DMM-5T-2

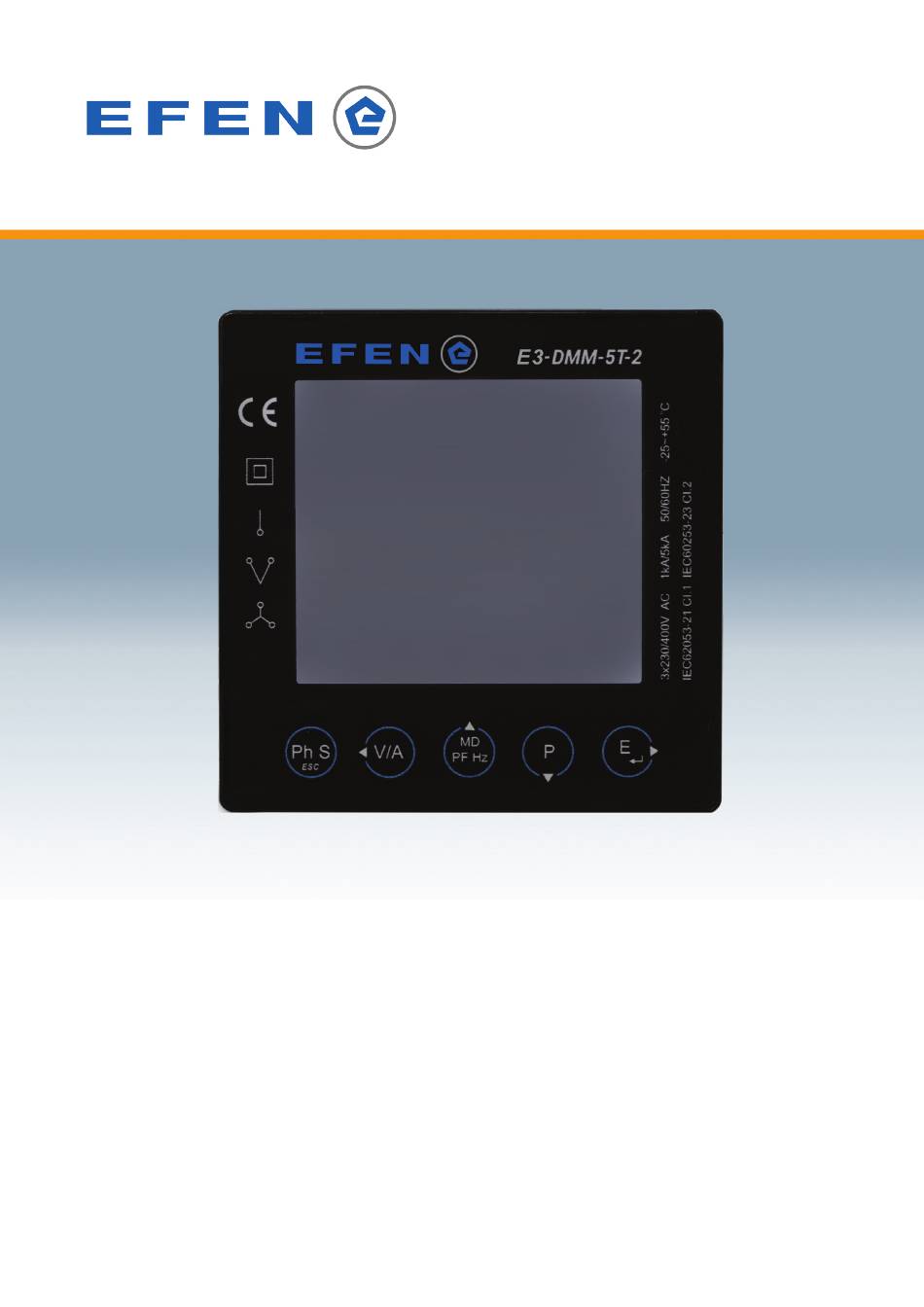

Page 1 Multifunction metering device 70830-0010 E3-DMM-5T-2 Operation manual...
Page 2 Potentially dangerous situation that can lead to operator’s hazard or damage to the device Information regarding construction, functioning and operation of the analyzer Important information, useful tip Practical guideline, solution to the problem An example of usage or function EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 3: Table Of Contents
Entering PIN number ....................Communication parameters ................... Communication ........................ Connection method ...................... Read / Write of parameters through RS485 ..............List of registers with measurement results ..............List of registers with meter configuration ..............EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 4: Introduction
Introduction E3-DMM-5T-2 is a multifunction, universal metering device used for overall monitoring of one- or three-phase power supply line parameters. The analyzer enables the user to make high-precision measurements of all crucial network parameters, such as: voltage and phase currents, phase-to-phase voltage, active power, reactive power, apparent po- wer, power factor.
Page 5 Reactive energy 0~9999999,9 kVArh Phase angle Current distortion factor (overall or individual from the 2nd – 63rd 0~100% harmonic) Voltage distortion factor (overall or individual from the 2nd – 63rd 0~100% harmonic) EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 6: Assembly
All available safety requirements must be taken into consideration. Supply voltage E3-DMM-5T-2 multifunction meter is powered through potential terminals V1, V2, V3, N and doesn’t require auxiliary power supply. It is recommended to protect power supply and voltage circuits of the meter using 1A fuse link.
Page 7 Having assembled the multifunction meter on the panel, you can proceed to connecting the wires. Distribution of terminals scheme is presented in Fig. 2. Fig. 2. View of multifunction meter from the side of terminal strips EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 8 Terminating resistors of 120 Ω must be connected interface RS485 at the ends of the bus. Up to 32 E3-DMM-5T-2 meters can be connected to one limb of the RS485 bus. EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 9: Assembly Diagrams
Multifunction meter operation E3-DMM-5T-2 Assembly Connections diagrams Fig. 3. 1P2W circuit – 1-phase, 2-wire system, semi-indirect-measurement Fig. 4. 3P4W system – 3-phase, 4-wire system, semi-indirect-measurement EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 10 Multifunction meter operation E3-DMM-5T-2 Assembly Connections diagrams Fig. 5. 3P3W system – 3-phase, 3-wire system, semi-indirect-measurement Fig. 6. 3P4W system –3-phase, 4-wire system, indirect measurement EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 11 Multifunction meter operation E3-DMM-5T-2 Assembly Connections diagrams Fig. 7. 3P3W system –3-phase, 3-wire system, indirect measurement EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 12: Multifunction Meter Panel
Multifunction meter operation Operating panel E3-DMM-5T-2 operating panel consists of 2 parts - multifunction LCD display providing convenient parameters reading and five keys that enable the change of displayed parameters and module configuration. Fig. 8. View of multifunction meter front panel...
Page 13: Description Of Display Elements
• Imported reactive energy; • Exported active energy; • Exported reactive energy; • In configuration mode or value selection mode – Key Right. Description of display elements Fig. 9. Display description EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 14 Energy consumption indicator with given unit Shows type of energy displayed in the field 13: • TOTAL – total energy consumption, • IMP – imported energy, • EXP – exported energy. EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 15: Indicator Mode -Network Parameters Display
Fast change between those views is available after long pressing of the ESC key. Automatic display switch ON Automatic display switch OFF EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 16 ESC. Fig. 10 Phase voltage Fig. 11 Phase-to-phase voltages Fig. 12 Phase currents and neutral wire current Fig. 13 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 17 Fig. 16 Selected voltage harmonics Press the key for two seconds and then select the number of the harmonic using keys Up or Down. Fig. 17 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 18 Indicator mode –network parameters display Function Panel view Total power factor and frequency Fig. 18 Power factor for the respective phases Fig. 19 Maximum current demand Fig. 20 Maximum power demand Fig. 21 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 19 Up or Down. Fig. 22 Active power dived into phases Fig. 23 Reactive power dived into phases Fig. 24 Apparent power dived into phases Fig. 25 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 20 Fig. 26 Total active energy Fig. 27 Total reactive energy Fig. 28 Imported active energy Fig. 29 Exported active energy Fig. 30 Imported reactive energy Fig. 31 Exported reactive energy Fig. 32 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 21: Configuration
NOTE: You need to make sure you will not lose or forget the password. If the password gets lost, you will not be able to enter configuration parameters of the meter. EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 22 Multifunction meter operation Configuration E3-DMM-5T-2 settings are divided into five basic groups. You can change the group by pressing Up or Down key. In order to enter the selected group, you need to press Right for at least two seconds.
Page 23: Communication Parameters
Even – parity control Odd – odd parity control Fig. 35 Default value: None Number of stop bits in data byte Settings: 1, 2 Number of stop bits Default value: 1 Fig. 36 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 24 Multifunction meter operation Configuration CT current ratio Parameters setting of current transformers connected to E3-DMM-5T-2. When programming current transformers parameter in the meter you should set the value of the primary side for CT1 parameter and secondary side for CT2 parameter.
Page 25 Multifunction meter operation Configuration PT voltage ratio Parameter settings of voltage transformers used when E3-DMM-5T-2 meter is used in a system for indirect measurement. When programming voltage transformers parameter in the meter, you should set the value of voltage ratio of the transformer Nominal current of voltage transformer secon- dary side.
Page 26 Multifunction meter operation E3-DMM-5T-2 Multifunction meter operation Configuration PULSE impulse output E3-DMM-5T-2 is equipped with two impulse outputs (not available in standard version) Output Terminal Function Out 1 Universal, programmable impulse output. Selection of function, number and length of impulse.
Page 27 Time period that is considered in calculating maximum Time of calcu- power demand. lating power demand Available settings: OFF (power demand calculating switched OFF) 5, 8, 10, 15, 20, 30, 60 min. Default value: 60 min. Fig. 45 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 28 Available settings: 1 – 255 s. Default value: 5 s. Switching ON/OFF automatic view switching is available through Syst menu, or by long pressing of ESC. Fig. 47 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 29 OK, and finally with the keys Up or Down choose and confirm the proper option. Available settings: When the current transformer is connected correctly When the current transformer is connected in the reverse way EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 30 Available settings: Automatic view switching switched off Automatic view switching switched on Fig. 51 The time of a single view display is set in time menu, disp SCrL parameter. EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 31 Reset of all In order to reset all meters, press OK until ALL starts meters flashing. Next, release and long press ALL key again. Fig. 54 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 32: Communication
Phase L1-current 0x0008 Phase L2-current 0x000A Phase L3-current 0x000C Phase L1-active power 0x000E Phase L2-active power 0x0010 Phase L3-active power 0x0012 Phase L1-apparent power 0x0014 Phase L2-apparent power 0x0016 Phase L3-apparent power EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 33 Ah number (since the last reset) 0x0054 Total power demand 0x0056 Maximum power demand 0x0058 Power import demand 0x005A Maximum power import demand 0x005C Power export demand 0x005E Maximum power export demand EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 34 Average phase-to phase voltage 0x00E0 Current of the neutral conductor 0x00EA Phase L1 – Contents of voltage harmonics (L1 – N) 0x00EC Phase L2 – Contents of voltage harmonics (L2 – N) EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 35 Phase L2: Total consumption of active energy 0x016A Phase L3: Total consumption of active energy 0x016C Phase L1: imported reactive energy kVArh 0x016E Phase L2: imported reactive energy kVArh 0x0170 Phase L3: imported reactive energy kVArh EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 36 (2) Total power demand is calculated as a difference of the imported and exported value (import – export) (3) Total active and reactive energy consumption is calculated as a sum of imported and exported energy (import + export). EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 37: List Of Registers With Meter Configuration
0x0004. This value is calculated on the ground of the period set in register 0x0002 and updated after the end of a full calculation period. EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 38 1 stop bit, parity control (even) 1 stop bit, odd parity control (odd) 2 stop bits, no parity control 0x0014 Float RS485-communication – Address of the meter in Modbus network Settings: 1-247 EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 39 Nominal voltage of the secondary side. Settings: 100 – 480 V The change requires first of all entering PIN number in the register 0x000E and unlocking the access to critical settings. EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 40 - option N. Settings: Phase L1 Phase L2 Phase L3 The change requires first of all entering PIN number in the register 0x000E and unlocking the access to critical settings. EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 41 Total active energy Exported active energy Imported reactive energy Total reactive energy Exported reactive energy 61456 0xF010 Meter indicators reset Settings: Reset of current and power demand indicators Reset of energy meters EFEN GmbH · Technical changes reserved· Released: March 2020...
Page 42 Efficient distribution When it comes to reliable power supply, replacing nuclear power by renewable energies is one of the greatest challenges. To this end, EFEN offers consistent solutions for safety interfaces from power generation to power storage and to the selective control of consumers.
