Modbus Map
i
Internal Maximum
Reference Range
%Q1 2048
%M1 2048
%T1 2048
%QG1 256
%I1 2048
%IG1 256
%S1 256
%K1 256
%AI1 512
%AIG1 32
%SR1 32
%AQ1 512
%R 9999
%AQG1 32

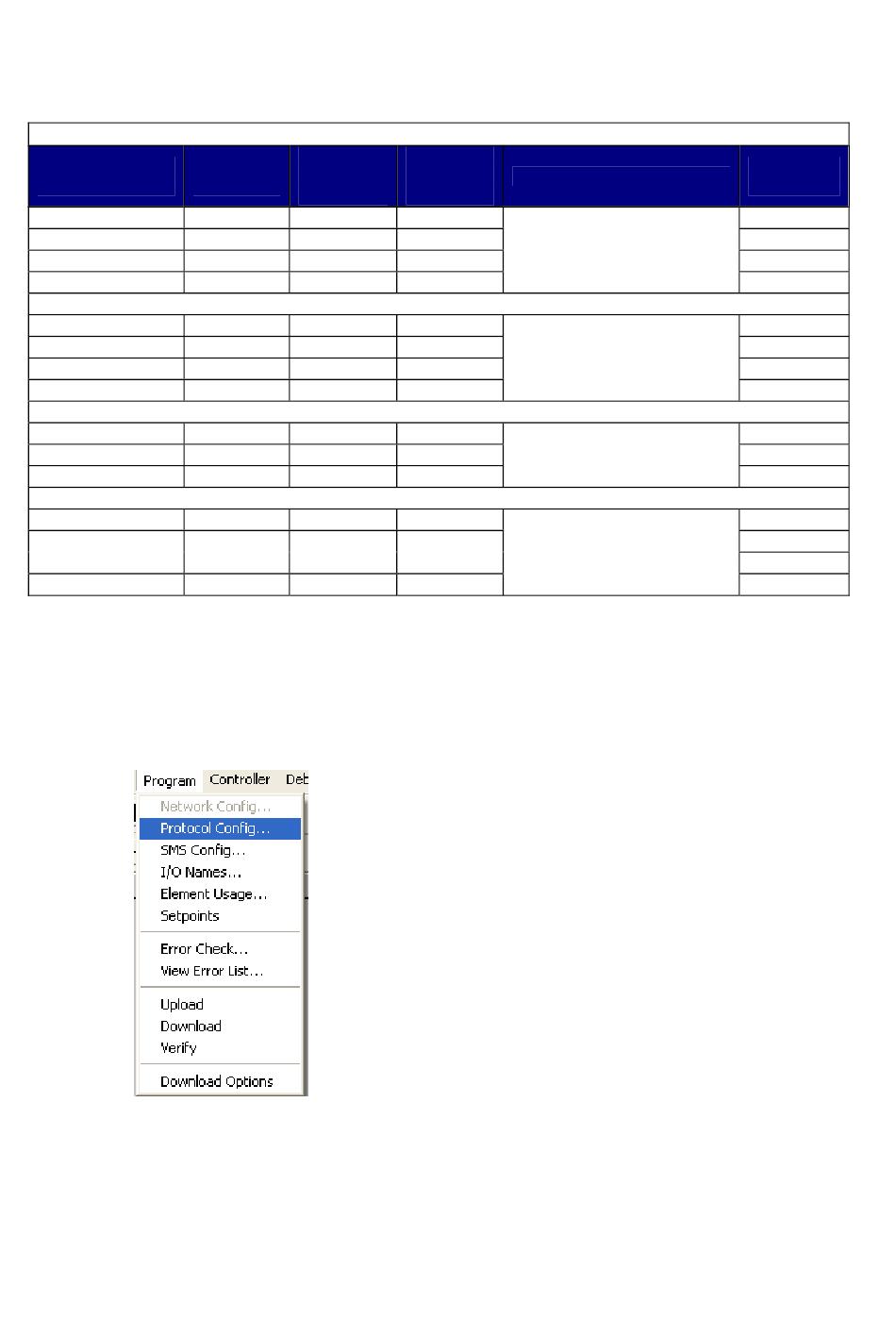

Protocol Configuration

The Modbus master is configured in the Program drop down menu.
©IMO Precision Controls Ltd.
Modbus Master
Modbus Master Mapping
Traditional Expanded
Modbus Modbus
Reference Reference
00001 000001
03001 003001
06001 006001
09001 009001
10001 100001
13001 103001
14001 104001
15001 105001
30001 300001
33001 303001
34001 304001
40001 400001
(Previously 43001
410001
for 2048 registers)
46001 406001
We can then configure the programmable ports
3
of the i . Select either Port 1 or Port 2, however
it is easier in this case to configure port 2 and
leave port 1 to solely programming. Each port
can have different protocols and therefore the
3
i can be utilised as a data exchanger.
To configure the i
the protocol.
4
Modbus Command(s)
Read Coil Status (1) Force
Single Coil (5) Force
Multiple Coils (15)
Read Input Status (2)
Read Input Register (4)
Read Holding Registers (3)
Preset Single Register (6)
Preset Multiple Registers
(16)
3
as a Modbus Master select
Modbus
Offset
00000
03000
06000
09000
00000
03000
04000
05000
00000
03000
04000
00000
03000
06000
10000
