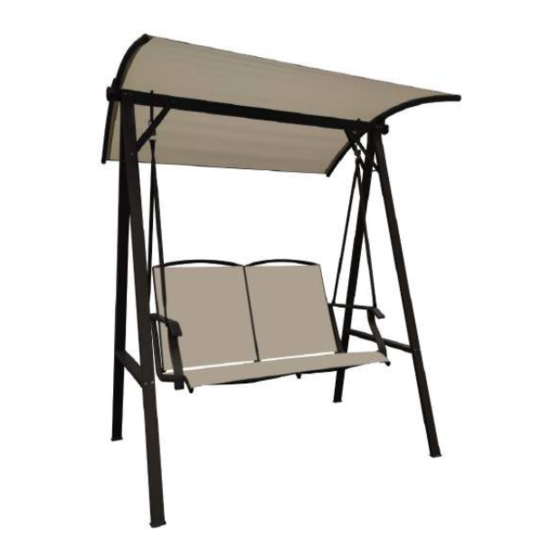

TWO SEATER CUSHONED SWING
ASSEMBLY INSTRUCTIONS
ITEM# SW-RK939
SKU# 810502906
DO NOT RETURN THIS PRODUCT TO THE STORE. FOR MISSING PARTS OR QUESTIONS TO THIS PRODUCT PLEASE CALL US AT 1-888-733-8169
OR EMAIL US AT customerservice _01@yeah.net OR customerservice _02@yeah.net OR customerservice _03@yeah.net

IMPORTANT :

Please read all the instructions and warnings before assembling . In order to make the whole product adjust to the best, please install all the screws on the product
before fully tighten, and note to put the washer to the screw before putting the screw into the screw hole.

WARNING :

Use the correct screws as indicated. All screws should be hand tighten until the complete piece is assembled ( This will make the
assembly process much easier ). Once the piece is fully assembled, then go back and tighten all screws with provided tool.
Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the product construction .
Keep assembly area at leat 6 feet from any obstruction such as a fence, garage, house, overhanging branches, laundry line or electrical wires.
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal
injury and damage to the product. Please read all instructions before assembly and use.
The swing is for sitting purpose only, is not to be used for standing purposes and will not function as a stool or step-ladder. Use on even surfaces only.
The swing is not a toy. This three seater swing tested for use at weight of 350 lb (158.7kg). Improper use of this product or failure to use
as directed may result in injury. Not intended for commercial use.
CARE & MAINTENANCE
STAIN RESISTANT CUSHIONS CARE —— KEEP THE CUSHIONS IN STORAGE IN RAINING DAYS.
SPILLS: Immediately wipe up the spill using a white damp cloth. Repeat process if necessary until stain is gone. Allow cushion to air dry.
FABRIC CARE: Hand wash cold, non-chlorine bleach when needed, lay flat to dry. Cool iron if necessary. Do not dry clean.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-RK939 and is the answer not in the manual?

Questions and answers

Summary of Contents for Big Lots SW-RK939

  • Page 1 TWO SEATER CUSHONED SWING ASSEMBLY INSTRUCTIONS ITEM# SW-RK939 SKU# 810502906 DO NOT RETURN THIS PRODUCT TO THE STORE. FOR MISSING PARTS OR QUESTIONS TO THIS PRODUCT PLEASE CALL US AT 1-888-733-8169 OR EMAIL US AT customerservice _01@yeah.net OR customerservice _02@yeah.net OR customerservice _03@yeah.net IMPORTANT : Please read all the instructions and warnings before assembling .
  • Page 2 PARTS LIST FOR SWING Part Part Image Image Leg Tube Plastic Washer 66.9" Standing Support Screw (M6X55MM) Unit 27.2" Top Hanging Pole Screw (M6X35MM) Unit- 3PC 56.5" Armrest Screw (M6X35MM) Unit - 4PC Short Hanging Pole Screw (M6X70MM) Unit 31.7" Long Hanging Pole Screw (M6X38MM) Unit 33.5"...
  • Page 3 STEP 1 STEP 2 1. Secure 2 Support Connecter (I) to Top Hanging Pole (C) with 2 Screw Unit (SS) by using Wrench (X1) and Allen Wrench (X2) . Secure Top Hanging Pole (C) to 4 Leg Tube (A) with 4 Screw Unit (T) by using 2.
  • Page 4 STEP 4 STEP 5 Hanging the assembled swing to connect the Top Hanging Pole (C) by Spring (L). Secure Fabric Cover (J) to Top Hanging Pole (C) with 2 Ajustable Handle (K) by Verify the alignment and adjust, fully tighten all screws. hand.
