Summary of Contents for ARH CARMEN

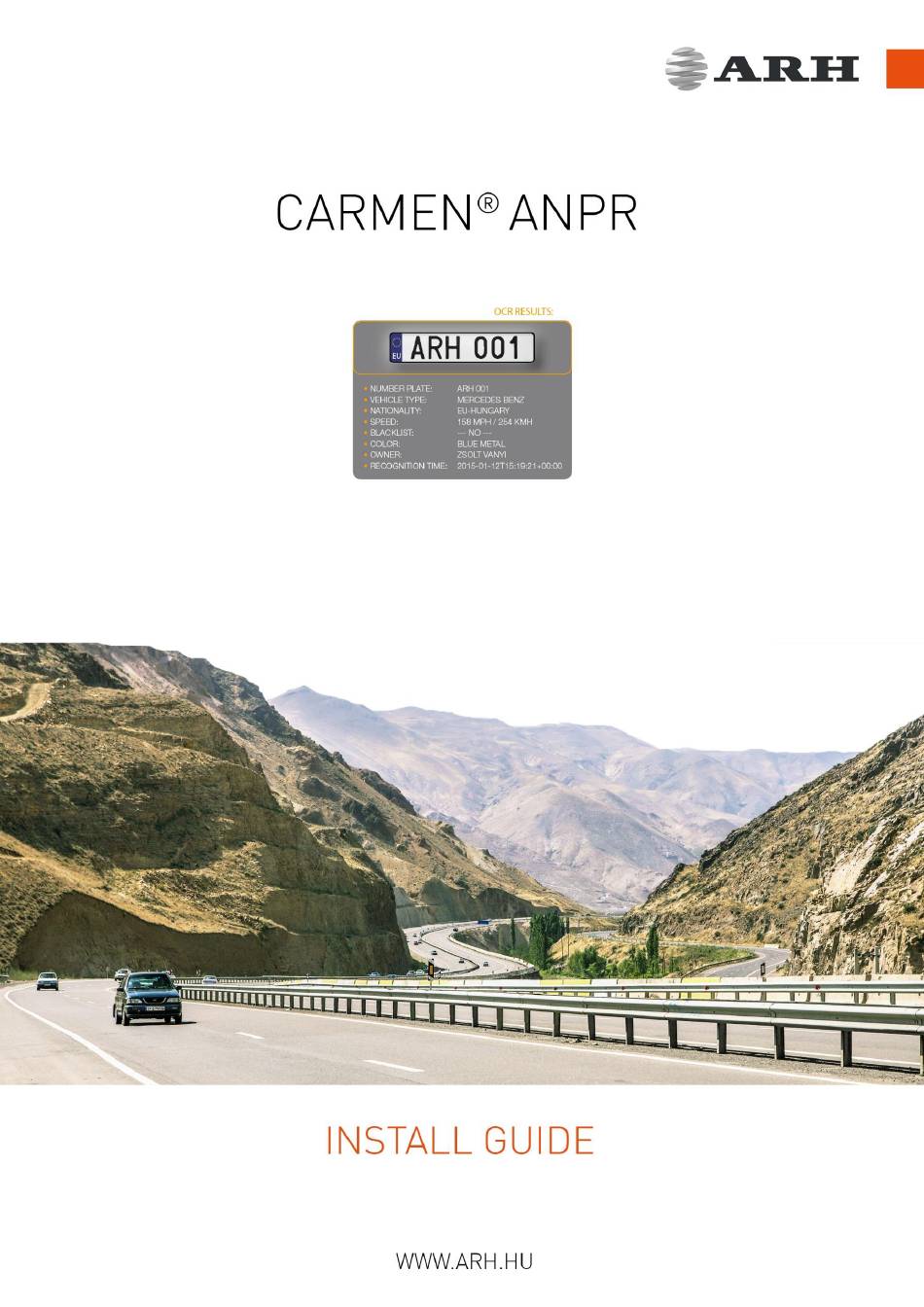

- Page 1 Page 1/14 CARMEN ANPR INSTALL GUIDE...
-
Page 2: Table Of Contents
2.2. INSTALLATION OF THE USB 2.0 PORT NNC ..................7 SOFTWARE INSTALLATION ..........................8 3.1. INSTALLATION ON WINDOWS PLATFORMS ................... 8 RECOMMENDED CAMERA POSITION ........................10 IMAGE REQUIREMENTS ..............................12 CONTACT INFORMATION ............................. 14 Page 2/14 CARMEN ANPR INSTALL GUIDE... -
Page 3: Introduction
INTRODUCTION This documentation contains a step by step guide on how to install both the hardware and software components of the CARMEN ANPR engine. It also gives a brief description on ® recommended camera positioning and image requirements. This guide only details the installation procedure for Windows based systems, Linux users please... -
Page 4: Handling Precautions
PCs with ATX power supplies, it is recommended to unplug the power cord before installation. During hardware installation, exercise caution when handling hardware components as these might have sharp edges or protruding parts that can cause hand injuries. Page 4/14 CARMEN ANPR INSTALL GUIDE... -
Page 5: Package Contents
PACKAGE CONTENTS A CARMEN ® license has both hardware and software components. Hardware components are shipped physically via a courier service, software components are downloaded via the ARH Technical Support System (ATTS) following registration. Software Components: Software development libraries ... -
Page 6: Installing Carmen ® Anpr
® is a form of HW protection for the software, the dongle includes the license. The system requirements detailed above are the minimum specifications that CARMEN ® can run on. Using a computer with the specifications above will result in lower processing speeds. -
Page 7: Hardware Installation
3. Locate an available empty PCIe expansion slot. 4. Remove the slot cover screw and slot cover if possible. 5. Open the antistatic protective sleeve of the CARMEN ® NNC card, grasp the circuit board by the edge of its mounting bracket and take it out from the sleeve. -
Page 8: Software Installation
3.1. INSTALLATION ON WINDOWS PLATFORMS ® 1. Before installing a new CARMEN ANPR version, uninstall any previous versions of CARMEN ® ANPR from your system (if applicable) and reboot the computer. 2. Extract the received zip file to a folder on the hard disk of your computer. - Page 9 8. Connect the USB or Express Card Hardware Key into the computer. When the New Hardware Wizard starts, select Install the software automatically. 9. Go to Start Menu/ (All) Programs/ CARMEN GX and run the ANPR Demo for Images to start using CARMEN ®.
-
Page 10: Recommended Camera Position
If the distance is too short, it may happen that a part of the plate is outside the camera’s field of view (when the vehicle is near to the side of the lane or the plate is not in the middle of the vehicle). Page 10/14 CARMEN ANPR INSTALL GUIDE... - Page 11 Very low resolution pictures are unusable for ANPR, but so are very high resolution images as well. Therefore, avoid settings where the character height is greater than 50 pixels. The line width of a character on the image should be at least 2 pixels. Page 11/14 CARMEN ANPR INSTALL GUIDE...
-
Page 12: Image Requirements
IMAGE REQUIREMENTS In order to expect the most accurate result from the CARMEN software, the processed images ® should contain a plate: with reasonably good spatial resolution (on the license plate the minimum character height is 16 pixels for Latin and 20 pixels for Arabic characters, 2 pixels line-width on the image), with reasonably good sharpness, ... - Page 13 IMAGES ADEQUATE FOR ANPR GOOD SPATIAL RESOLUTION GOOD SHARPNESS HIGH CONTRAST GOOD LIGHTING CONDITIONS GOOD POSITION AND GOOD ANGLE OF VIEW Page 13/14 CARMEN ANPR INSTALL GUIDE...
-
Page 14: Contact Information
Web: www.arh.hu The ARH Technical Support System (ATSS) is designed to provide clients with fast and proficient assistance. Information regarding hardware, software, manuals and FAQs are easily accessible for clients who are already registered in ATSS. In addition to offering assistance, the system is also designed to provide high levels of protection while managing your business information.
