Summary of Contents for KJB Security TMT30BB
- Page 1 Thermal Imaging Camera User Manual V2.0...
-
Page 2: Table Of Contents
Contents Overview ..................... 1 Features ....................2 Specification ..................3 Dual Spectrum Thermal imaging camera ..........3 B03 Blackbody ..................4 Appearance and Interface ..............5 Software ....................7 Devices List ..................8 All Items ....................9 Caution ....................10... -
Page 3: Overview

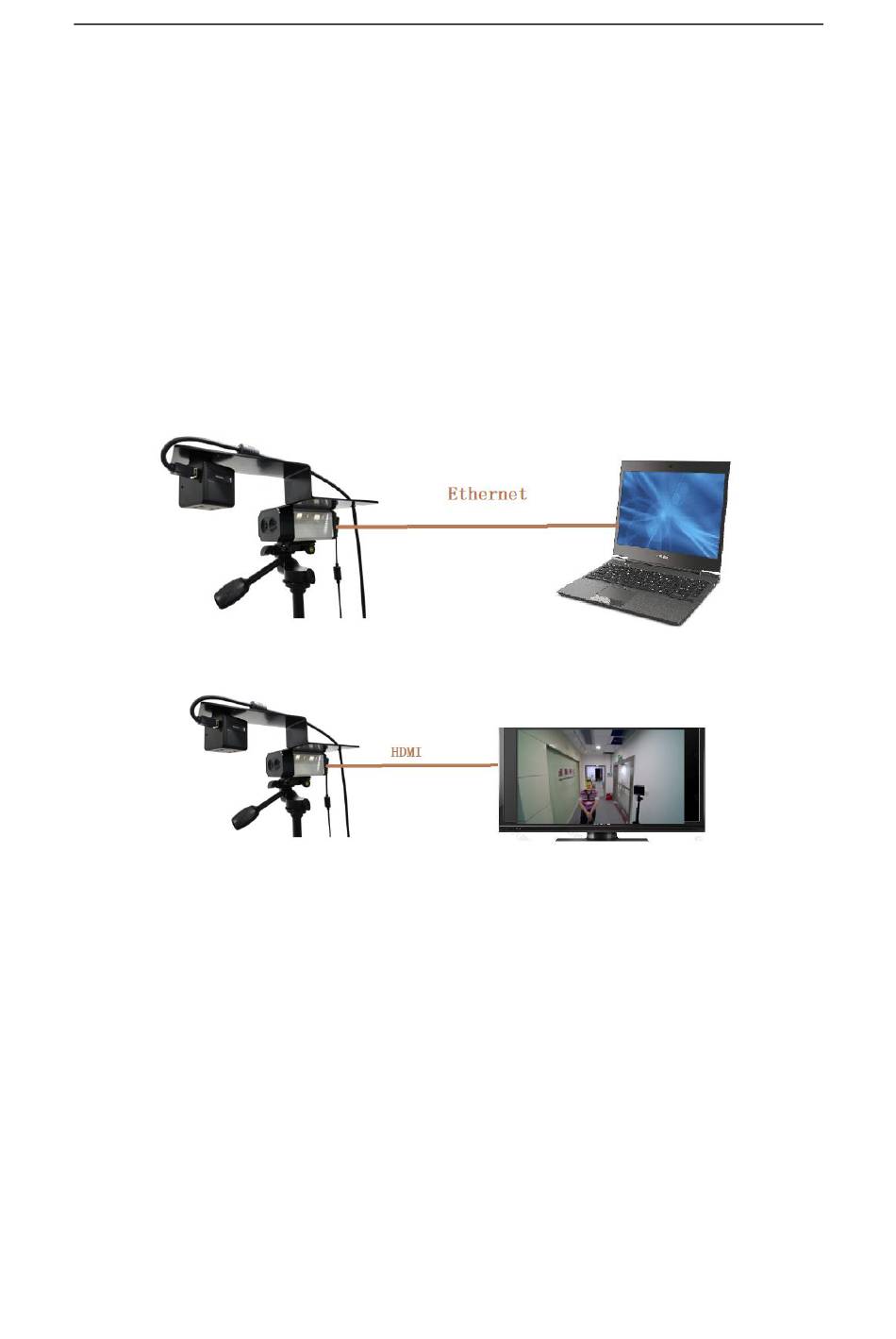

With a blackbody in the front of the TMT30BB, TMT30BB will continuously calibrate from the blackbody, even the environment temperature change, the measured temperature value will be always accurate. -
Page 4: Features
Features ⚫ The thermal imaging camera can automatic measure the human body without any configuration, it is no matter with or without facemask. ⚫ The people just walk through without stop, the system will detect the body temperature. ⚫ With a blackbody to automatic calibrate the thermal imaging camera, fully compliant with FDA requirement. -
Page 5: Specification
Specification Dual Spectrum Thermal imaging camera The specification is shown below, Parameter Specification Resolution 160x120 Spectrum 8~14um 25Hz 80mK@25°C (77°F) NETD H84°, V64° Thermal imaging camera 10°C~50°C (50°F ~ 122°F) Measuring range 0.3°C (5.4°F) Accuracy Measure distance 3 meters Measure the Automatic face temperature measurement temperature based on face recognition... -
Page 6: B03 Blackbody
Parameter Specification Temperature unit Celsius, Fahrenheit Ethernet (RJ45) HDMI RS485 Alarm Interface +10°C ~ +50°C （50°F ~122°F） Working temperature -40°C~+85°C (-40°F ~ 185°F) Storage temperature Degree of protection IP54 Size 129mm x 73mm x 61mm (L x W x H) Weight 460g Mounted... -
Page 7: Appearance And Interface
The specification is shown below, Parameter Specification +5°C～50°C （41°F ~122°F） Measuring range Surface Size Diameter 25 mm Emissivity 0.95 ± 0.02 0.1°C (0.18°F) Accuracy Stability < ±0.1°C (±0.18°F) 5V (propose 5V 2A adaptor, at lease 5V 1A adaptor) Temperature 0°C～50°C （32°F ~122°F） Working temperature Humidity ≤90%RH Equipment Size... - Page 8 Interface Function Description 1 1080P visible camera provide visible imaging for the camera 2 thermal imaging camera provide thermal imaging for the camera LED on: camera work normally LED off: camera work abnormally or power 3 Green LED Interface Function Description 1 DC 12V provide DC 12V for the camera connect computer with camera, can work with HDMI...
-
Page 9: Software
to connect external sound and light alarm equipment (cannot 6 Alarm out provide power supply) 7 Line in No available now Control For visible light camera configuration (default is enough for button most scenarios) LED on: camera power is normal 9 Power LED LED off: camera power is abnormal Software... -
Page 10: Devices List
The software functions are shown below, Functions Description visible mode Video mode fusion mode automatic snap face image when temperature higher than threshold, and display the value of the temperature. Image manual save image automatic record video when temperature higher than threshold Video manual record video Set alarm threshold value... -
Page 11: All Items
Type Specification Qty. Remark B03 blackbody power cable To hold the TMT30BB and Mechanical part B03 blackbody Software 1.8 – 2 meters TMT30BB tripod Optional HDMI TV or display Adaptor with USB port DC5V 2A or 1A All Items... -
Page 12: Caution
Caution ⚫ The environment has a great influence on the temperature measurement accuracy of infrared thermal imaging. Although there is blackbody correction, there is a great change of environment, which will also affect the blackbody. Therefore, try to choose a stable room temperature environment. Do not deploy the thermal imaging camera and blackbody near the air conditioner, fan and, heating equipment, etc.
