D) Connection to the regulator and the battery
Read furthermore the instruction of the charge
controller.
1. Install the regulator close to the battery.
2. If necessary, expand the module cable with a
solar-cable. Now connect the module cable with
the regulator as seen on picture 2.
3. ATTENTION: Never mix up plus (red) and
minus (blue) from the cable!
4. The regulator should be connected with a
cable (2 x 4mm²) on a direct way to the battery.
(Pic. 2)
Tip:
The solar module needs no further maintenance; it only has to be cleaned with water. It
can be cleaned with soap, but only soap without sanding, corrosive fluid or wax.
(Do not use car-cleaning soap!)
SOLARA takes no responsibility for damages on the module caused by wrong installation
and by not following this installation manual. For any further questions, please do not
hesitate to contact us.
Subject to technical change. No responsibility will be taken for printing mistakes.
Solara GmbH Große Bergstraße 219 22767 Hamburg GERMANYservice@solara.de
EN
Pic. 2
Date: 06.01.2016
Installation Manual

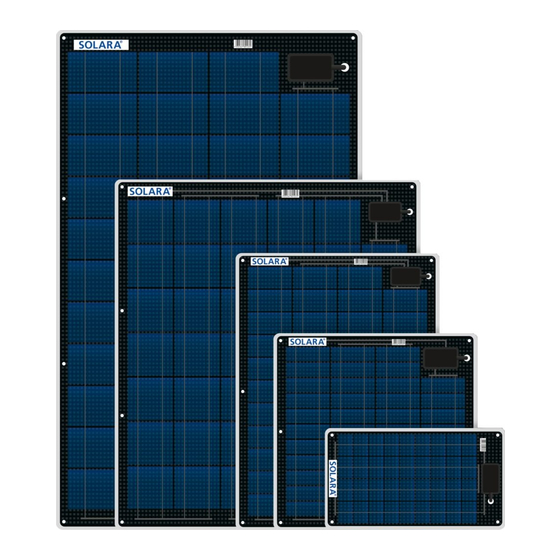

SOLARA M-Series
SOLARA Power M-Series
Important notice! Please read!
Please read this manual carefully.
Incorrect installation can damage the module
and can result in loss of warranty!
www.solara.de
