Pro Lite Marquee-Lite Plus User Manual

Remote keyboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Remote Keyboard
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Marquee-Lite Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for Pro Lite Marquee-Lite Plus

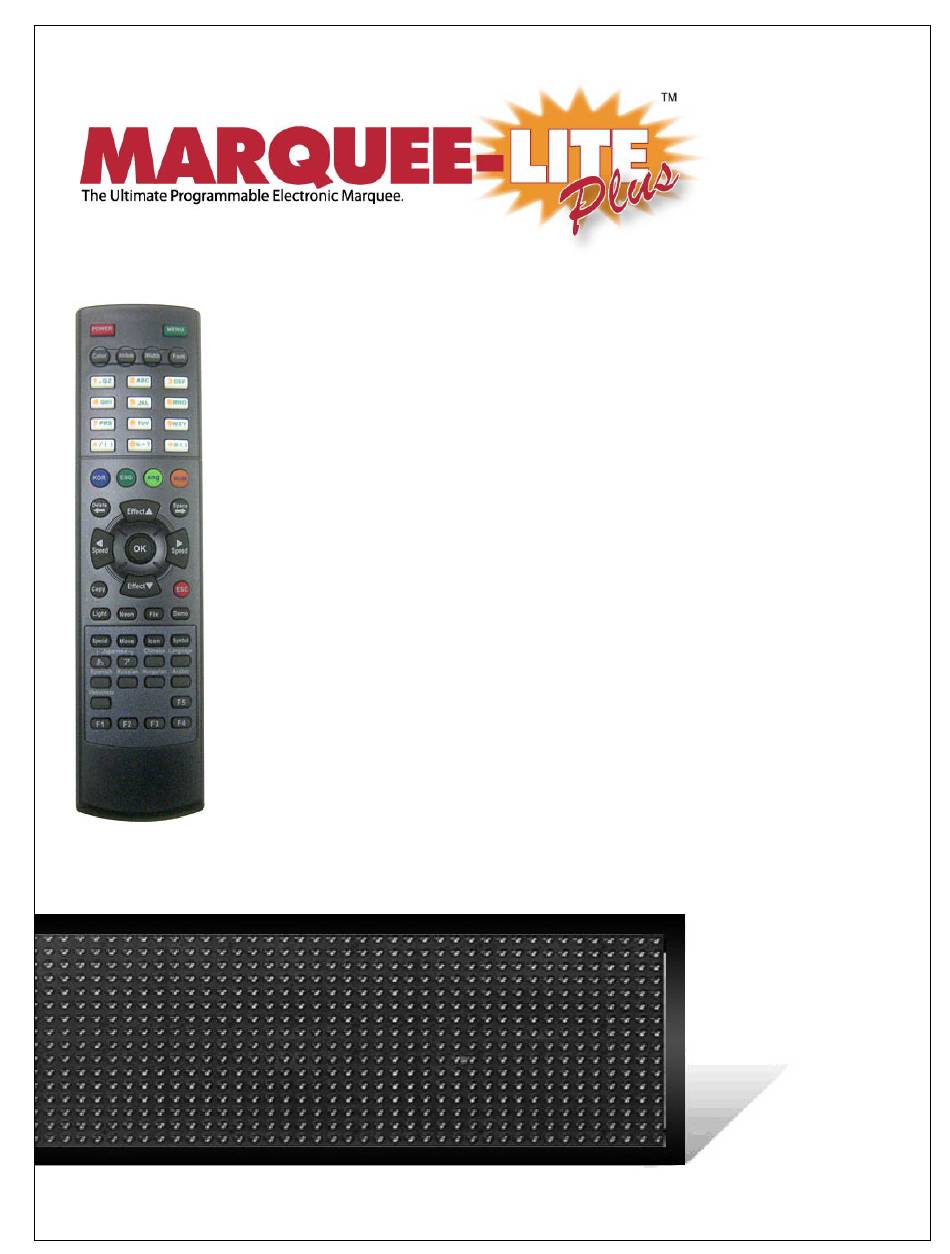

  • Page 1 Remote Keyboard USER GUIDE...
  • Page 2 FEATURES UNIQUE CAPABILITIES  Standard English input with international-language support. (international language not supported in this manual)  10 adjustable brightness settings for daytime and nighttime.  Display important viewer information such as TIME and DATE.  Fonts are completely customizable: 8 font types, 22 font colors, 4 font sizes, 21 font effects.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS REMOTE CONTROL ………………..……………………………………………………………………………… Button Functions & Description ………………………………………………………………… Remote Operating Range ……………………………. …………………………………………… Menu and Sub-Menu Options ……………………………. …………………………………….. GETTING STARTED ………..……………………………………………………………………………………… How To Use This Manual .…... …………………………………………………………………… NEW CONTENT ……………………………………………………………………..……………………………… Create A Single-Line Message …………………………………………………………………… Create A Double-Line Message ………………………………………………………………….

  • Page 4: Remote Control

    REMOTE CONTROL BUTTON FUNCTIONS & DESCRIPTION POWER CHARACTER/NUMBER Turns the display ON and OFF. Displays the corresponding MENU letter, number, or symbol. Program/Modify sign settings. COLOR Enables input of Korean Change font color. characters. ATTRIBUTE Apply font effect. Enables input of English WIDTH upper-case characters.

  • Page 5: Menu And Sub-Menu Options

    REMOTE CONTROL MENU AND SUB-MENU OPTIONS MENU (Button) [1] Add Message [2] Add Dual Message [3] Add Image [4] Add Picture [5] Add Video [1] ADD CONTENTS Create new message content. [6] Display Date [7] Display Time [8] Add Dday [9] Add Dtime [10] Add Temperature [11] Add Humidity [12] Add Event [1] Select content.

  • Page 6: Getting Started

    GETTING STARTED HOW TO USE THIS MANUAL For beginners, it is important that you follow all the examples provided in this manual. This will give you a better understanding on using the display features more effectively. After reviewing the manual once, an intermediate user can reference any section to faster achieve the desired results.

  • Page 7: New Content

    NEW CONTENT CREATE A SINGLE-LINE MESSAGE Enter the Edit Mode 1) Press the [MENU] button. 2) The Add Contents option appears. Press [OK]. 3) The Add Message option appears. Press [OK]. NOTE: When a momentary prompt appears, simply wait until it disappears from the display before proceeding to press a button.

  • Page 8: Create A Double-Line Message

    NEW CONTENT (continued) CREATE A DOUBLE-LINE MESSAGE Enter the Edit Mode 1) Press the [MENU] button. 2) Press [OK]. 3) Press the arrow button once. The Add Dual Message option appears. 4) Press [OK]. 5) When you see the flashing cursor to the left, you are ready to proceed. Input the word “THANK YOU”...

  • Page 9: Font Styles Content

    FONT STYLES CONTENT APPLY FONT STYLES TO YOUR MESSAGE Now that you are familiar with adding new content, let’s create a new message and make your fonts come to life! Enter the Edit Mode 1) Press [MENU]. 2) Press [OK] twice. Input the word “Awesome”...
  • Page 10 FONT STYLES CONTENT (continued) PRACTICE 13) Go ahead! Change the font styles to the remaining letters. [COLOR], [ATTRIBUTE], [WIDTH], and [FONT] can all be used in combination. TIP: Go ahead, try it! Exit the Edit Mode 14) Press [OK] twice. NOTE: Remember to wait until the prompt disappears from the display before proceeding to press a button.

  • Page 11: Effects Content

    EFFECTS CONTENT APPLY EFFECTS TO YOUR MESSAGE Now let’s customize a new message using the effects that fit your preference. Enter the Edit Mode 1) Press [MENU]. 2) Press [OK] twice. Input the phrase “Huge Sale” 3) Use the designated Character/Number buttons to input the word “Awesome”. 4) When your message is complete, press [OK].

  • Page 12: Special Characters Content

    SPECIAL CHARACTERS CONTENT INSERT SYMBOLS, ICONS, AND INTERNATIONAL CHARACTERS Special characters help complete your message. NOTE: Special characters content can be inserted into your message at any time. Enter the Edit Mode 1) Press [MENU] once and [OK] twice. Special – Large English and European characters, number and symbols. 2) Press [SPECIAL].

  • Page 13: Visual Content

    VISUAL CONTENT GRAPHIC ANIMATIONS Add eye-catching messages with moving graphics! Add Image – Graphic animations with headlines. 1) Press the [MENU] button. 2) Press [OK]. 3) Press the arrow button until the Add Image option appears. 4) Press [OK]. 5) Use the arrow buttons to scroll through all the available Images.

  • Page 14: Time, Date

    VISUAL CONTENT (continued) TIME, DATE Public information content. Display Date – Change the appearance of the Date with your custom message. 1) Press the [MENU] button. 2) Press [OK]. 3) Press the arrow button until the Display Date option appears. 4) Press [OK].

  • Page 15: Counter Content

    COUNTER CONTENT D-DAY, D-TIME, AND EVENT Count down by time, day, or event. Add Dday – Count down to an event by days. 1) Press the [MENU] button. 2) Press [OK]. 3) Press the arrow button until the Add Dday option appears. 4) Press [OK].
  • Page 16 COUNTER CONTENT (continued) 7) The Add Contents option appears, press [OK]. 8) Press [ESC] to run your message. Page 13...

  • Page 17: Content Modification

    CONTENT MODIFICATION MODIFY, INSERT, AND INDEX CONTENT By now you should have a good feel for creating new content. Now let’s try to make some changes. Modify Contents – Revise an existing custom message. 1) Press the [MENU] button. 2) Press the arrow button.

  • Page 18: Content Deletion

    CONTENT DELETION ERASE UNWANTED MESSAGES Select to delete a single message or all your messages from memory. Delete Option – Erase a single message. 1) Press the [MENU] button. 2) Press the arrow button until the Delete Contents option appears. 3) Press [OK].

  • Page 19: Time/Date And Timer

    TIME/DATE AND TIMER SET CURRENT TIME, DATE, AND TIMER SETTING Set Time – Set current time. 1) Press the [MENU] button. 2) Press the arrow button until the Set Time option appears. 3) Press [OK]. The Set Time option appears. 4) Use the arrow buttons to set the time.

  • Page 20: Additional Features

    ADDITIONAL FEATURES STOP WATCH AND PASSWORD Increment Mode – Starts the watch at 00:00:00 and increases the number. 1) Press the [MENU] button. 2) Press the arrow button until the Stop Watch option appears. 3) Press [OK]. The Increment Mode option appears. 4) Press [OK] to select the current option.

  • Page 21: Settings

    SETTINGS RESERVATION, SOUND, DIRECTION, PASSWORD ENABLE/DISABLE, BRIGHTNESS Setting Up 1) Press the [MENU] button. 2) Press the arrow button until the Setting Up option appears. 3) Press [OK]. The Reservation setting appears (enables/disables the Timer). NOTE: Press [OK] to enable/disable a setting. Selecting “X” will disable the setting while “O”...

  • Page 22: Appendix

    APPENDIX SPECIAL CHARACTERS Special – Large English and European characters, numbers and symbols. 1 2 3 4 5 6 7 8 9 0 A B C D E F G H I J K L M N O P Q R S T U V X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z Á...

  • Page 23: Graphic Animations

    APPENDIX (continued) GRAPHIC ANIMATIONS Add Image – Graphic animations with headlines. Bowling Thank You Music Notes Jewelry Car Crash and Tow Open Disco Closed Ride Horse Have A Nice Day Merry Christmas Sell Umbrella Add Picture – Large graphics. Add Video – Large graphic animations. Golfing Female Brunette Bowing...

  • Page 24: Effects List

    APPENDIX (continued) EFFECTS LIST Insertion Effects – The effect used to control how your message will jump on the display. 1) Automatic – random effects (default) 2) Drama – curtain effects 3) Scroll – scroll up/down/left/right 4) Gathering – merge lines left/right/up/down/diagonal 5) Hurricane –...

  • Page 25: Faqs - Troubleshooting

    FAQS FREQUENTLY ASKED QUESTIONS Why do words get cutoff? Edit your message and try using the [FIX] button. It is practical to create several messages consisting of 2 – 3 words. By default all your messages will run as one long message. Can I display the Temperature and Humidity? No.

  • Page 26: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING I plugged my sign to the power outlet but it did not light up? 1) Unplug the power cord from the outlet. 2) Make sure that there is power at the outlet location by plugging in a lamp. If a lamp is not available, please try another power outlet and make sure that it outputs the required 110VAC ~ 120VAC.

  • Page 27: Customer Service - Warranty

    CUSTOMER SERVICE TECHNICAL SUPPORT Available 7:30 am – 4:30pm PST Phone (714) 668-9988 Email: support@pro-lite.com Web: www.pro-lite.com LIMITED WARRANTY PRO-LITE INC. Warranty to the original consumer that each of its PRO-LITE products and all components therein contained will be free from defects in materials and/or workmanship for three years from the date of purchase except those items specified herein under.
