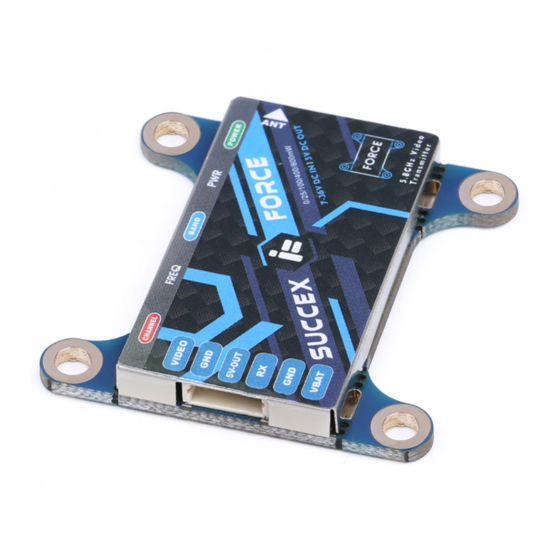

SucceX-Force 5.8GHz
25mW/100mW/400mW/800mW
Wiring Diagram
5V Output only for FPV cameras!
5V camera output
Ground (GND)
The RX wire can be linked to any free UART TX on your Flight Control
Video Out
and setup for IRC Tramp VTX telemetry to change parameters of
your VTX through your OSD.
C H A N N E L
B A N D
P O WE R
If you experience severe signal interference in your video feed please
inspect your power source for electrical noise. Some common issues
are too long motor screws, no additional capacitor added to your ESC,
bad or noisy motors, bad or noisy ESC.
(7V~36V)
Ground (GND)
RX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Iflight SucceX-Force 5.8GHz
- Page 1 SucceX-Force 5.8GHz 25mW/100mW/400mW/800mW Wiring Diagram 5V Output only for FPV cameras! 5V camera output Ground (GND) The RX wire can be linked to any free UART TX on your Flight Control Video Out and setup for IRC Tramp VTX telemetry to change parameters of your VTX through your OSD.
- Page 2 Indicator LED and Buttons Band Selection Long Press for 3 seconds to enter Band selection Group BAND A BAND B BAND E BAND F RaceBand Output Level Button Blue LED Flash 1x Flash 2x Flash 3x Flash 4x Flash 5x Channel/Band Button Channel Selection Output Level Indicator...
