FSD S2 FPV Camera User Manual

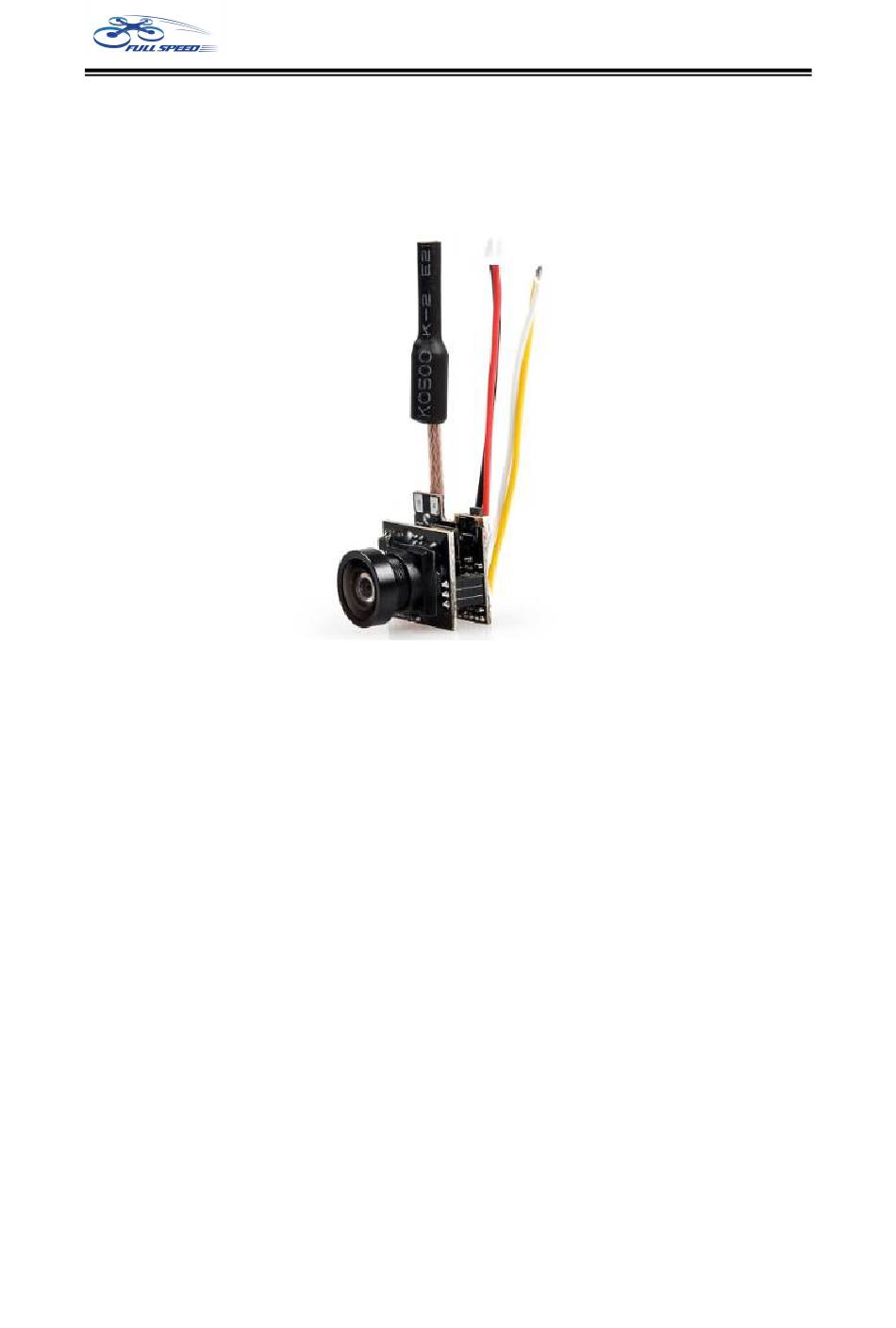

FullSpeed S2
AIO FPV Camera
User Manual
Main Features:
● All-in-one FPV video transmitter, super small volume and light weight
● Horizontal viewing angle: 150 degree FOV, squint angle: 170 degree DFOV
● 40 channels with Race band
FPV Camera
Sensor: 1/4 inch CMOS
Lens: M8 800TVL
Format: NTSC / PAL ( switchable )
Power consumption: 380mA 3.7V
Power: 3.6 - 5.5V
Lens mirror diameter: 2.1mm IR coated FOV 150 degree ( horizontal )
Video Transmitter
Support video format: NTSC / PAL
Output impedance: 75 ohm
Output signal strength: 23 - 24dBm
Output power: 25mW
Wireless channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V - 5.5V
Current: 100mA
Audio carrier: 6.5MHz
Advertisement
Table of Contents
Summary of Contents for Full Speed S2 AIO FPV
- Page 1 FSD S2 FPV Camera User Manual FullSpeed S2 AIO FPV Camera User Manual Main Features: ● All-in-one FPV video transmitter, super small volume and light weight ● Horizontal viewing angle: 150 degree FOV, squint angle: 170 degree DFOV ● 40 channels with Race band FPV Camera Sensor: 1/4 inch CMOS Lens: M8 800TVL...
- Page 2 FSD S2 FPV Camera User Manual Button function Short press (Apr. 1 sec or less): Change channels 1-8 Long press (More than 1.5 sec): Change bands A-B-E-F-R Long + press (More than 3 sec): Change NTSC/PAL system NTSC or PAL (switchale; Blue LED on= NTSC; Blue LED off=PAL) Weight: 3.6g Size: 26x20x18mm (without antenna)
