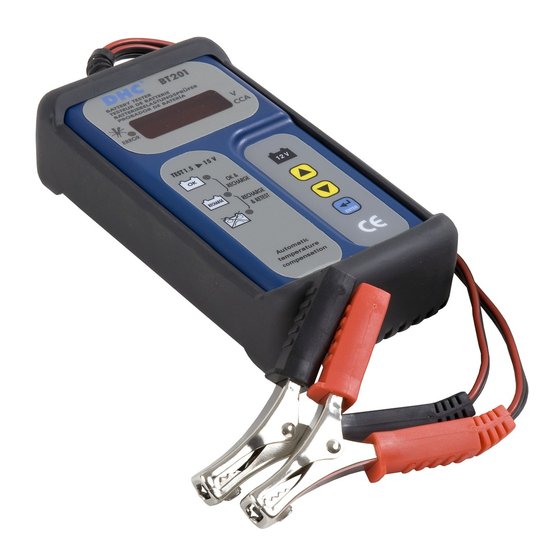

BT101 BATTERY TESTER
BT201 BATTERY/CHARGING/STARTING
SYSTEM ANALYZER
TEST PROCEDURES / OPERATING INSTRUCTIONS
IMPORTANT:
1.
For testing 12 volts batteries (BT101/BT201), and
for testing 12 volts charging/Starting system (BT201).
The capacity range:
SAE : 200~1200 CCA
DIN : 110~670 CCA
IEC : 130~790 CCA
EN : 185~1125 CCA
CA(MCA) : 240~1440 CA(MCA)
2.
Suggested operation range 32℉(0℃) to 122℉(50℃) in ambient
temperature.
WARNING:
1.
Working in the vicinity of a lead acid battery is dangerous.
Batteries generate explosive gases during normal battery operation.
For this reason, it is of utmost importance, if you have any doubt,
that each time before using your tester, you read these instructions
very carefully.
2.
To reduce risk of battery explosion, follow these instructions and
those published by the battery manufacturer and manufacturer of
any equipment you intend to use in the vicinity of the battery.
Observe cautionary markings on these items.
3.
Do not expose the tester to rain or snow.
- GB.1-V1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for DHC BT101
- Page 1 BT101 BATTERY TESTER BT201 BATTERY/CHARGING/STARTING SYSTEM ANALYZER TEST PROCEDURES / OPERATING INSTRUCTIONS IMPORTANT: For testing 12 volts batteries (BT101/BT201), and for testing 12 volts charging/Starting system (BT201). The capacity range: SAE : 200~1200 CCA DIN : 110~670 CCA IEC : 130~790 CCA...
- Page 2 PERSONAL SAFETY PRECAUTUONS: Someone should be within range of your voice or close enough to come to your aid when you work near a lead acid battery. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing or eyes. Wear safety glasses and protective clothing.
- Page 3 OPERATION & USE: BATTERY TEST - BT101/BT201 (Test for 12V batteries) Before you test a battery in a vehicle, turn off the ignition, all accessories and loads. Close all the vehicle doors and the trunk lid. Make sure the battery terminals are clean. Wire brush them if necessary.
- Page 4 11. If the display shows CHA- (Is tested battery charged?). Please press "ENTER" & select ▲ \▼ key to choose yES or no , then Press "ENTER" to the next step. (BT101/BT201 tester will judge the tested battery status & decide to show out Step11 or not.) 12.
- Page 5 Red LED light – The battery cannot hold a charge. It should be replaced immediately. Or – The battery has at least one cell short circuit .It should be replaced immediately. SAE XXXX (CCA value) Err on the screen & Second Red light –...
- Page 6 A. Green LED lights. = Starting system ok. B. Yellow LED lights. = Starting system weak. Check connections, wiring, and starter. C. Red LED lights, the screen shows blank or the screen shows ХХ.ХХ the voltage of the battery = Starting system problem. Check connections, wiring, and starter immediately.
- Page 7 – If the screen shows blank : The voltage of the tested battery is too low to serve the BT101/ BT201. Please recharge the battery retest. If reading is the same, the battery should be replaced immediately. Or the clamps are connected reversely.
- Page 8 TERMS AND CONDITIONS OF WARRANTY Any battery tester defective in material or workmanship will be repaired or replaced according to published defective return test repair procedures. The existence of a defect shall be determined by the seller in accordance with published procedures. The published test procedures are available upon request.
