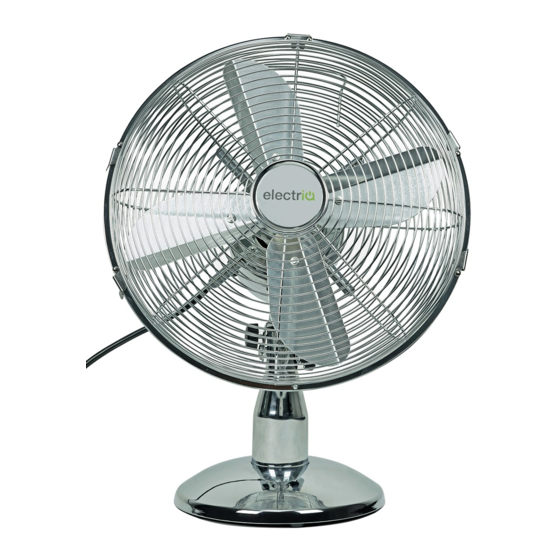

- Page 1 DF12CR (CHROME) / DF12CP (COPPER) 12 INCH DESK FAN Thank you for choosing electriQ Please read this user manual before using this air circulator and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
- Page 2 CONTENTS SAFETY INSTRUCTIONS DIAGRAM INSTALLATION OPERATION MAINTENANCE TROUBLE SHOOTING TECHNICAL DATA MANUFACTURER SUPPORT...
- Page 3 SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with regulations of the country where the unit is used.
- Page 4 DIAGRAM 1. Front Guard 2. Blade 3. Rear Guard Screws 4. Rear Guard 5. Motor Shaft 6. Motor 7. Oscillation Control 8. Control Switch 9. Knob 10. Tube 11. Base 12. Ring 13. Base Locking Screw 14. Blade Screw...
- Page 5 INSTALLATION Fan Head Switch Control Oscillation Knob BODY ASSEMBLY Motor 1. Unscrew the BASE LOCKING SCREW from the PIPE and remove the RING. 2. Insert the PIPE through the hole in the Screw center of the BASE and twist into position. Locking Nut 3.
- Page 6 2. if fan is damaged discontinue use and contact service centre If the above solutions do not resolve the problem please contact the service centre. TECHNICAL DATA Model DF12CR / DF12CP High Velocity Fan Speed Blade size 300 mm Cable length 1.5 meters...
- Page 7 UK SUPPORT www.electriQ.co.uk/support Call: 0330 390 3061 or complete the online form Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk Unit J6, Lowfields Business Park Lowfields Way, Elland West Yorkshire, HX5 9DA Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary.
