Summary of Contents for Sen Source PCW-2TB10

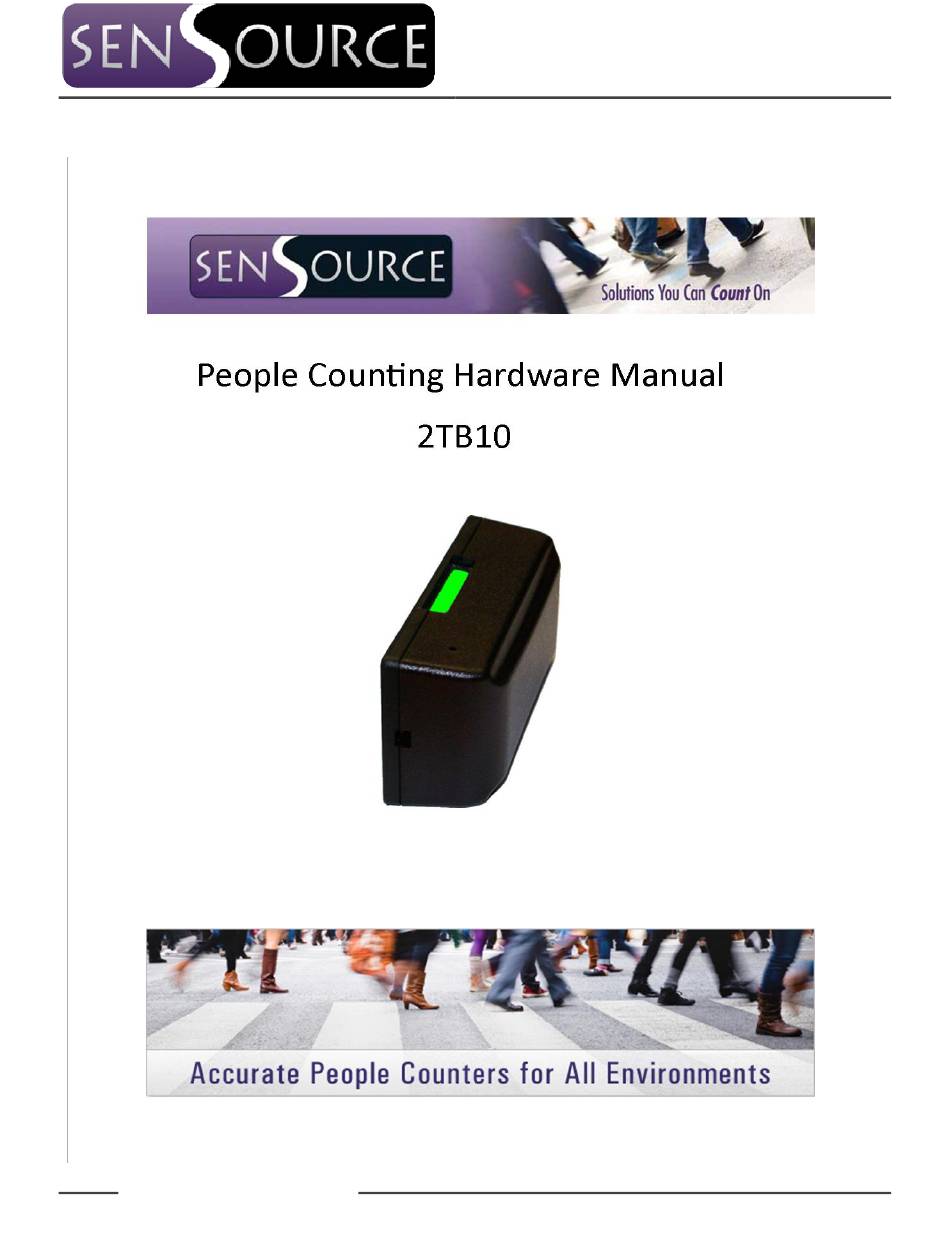

- Page 1 PCW-2TB10 People Counter 418MHz -Directional Wireless Sensor SenSource, Inc. • Youngstown, OH U.S.A. www.sensourceinc.com • 800.239.1226 Rev. 5/14/20133...
-
Page 2: Table Of Contents
PCW-2TB10 People Counter A B L E O F O N T E N T S Table of Contents ..................................2 INTRODUCTION .................................... 3 Product Overview ................................... 3 Features ....................................3 Components ..................................... 3 Getting Started ..................................3 Caution ..................................... 3 HARDWARE OVERVIEW ................................ -
Page 3: Introduction

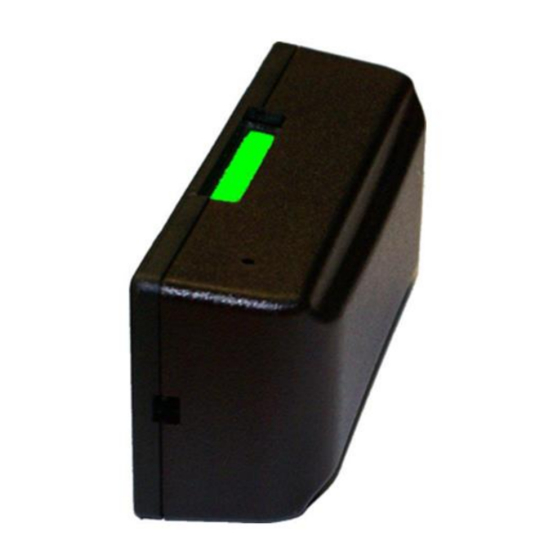

V E R V I E W The PCW-2TB10 is a battery operated infrared through beam people counter with a 418 MHz radio transmitter. The sensors are versatile and are ideal for entry ways up to twenty five feet wide. The system consists of three parts: the IR transmitter and the IR receiver and the SSRX 4.9 sensor server (sold separately). -
Page 4: Hardware Overview
PCW-2TB10 People Counter HARDWARE OVERVIEW RX U N I T U N C T I O N S See figure 1. Reading the current counts: When the IR beam is broken the LCD display on the RX unit will list the current count value and the LED will flash red. -
Page 5: Batteries
PCW-2TB10 People Counter A T T E R I E S In order to preserve battery life clear plastic pull tabs are installed. Before your sensors will be functional you must remove the pull tab. Figure 1. The sensors require four 3.6V Lithium AA batteries. -
Page 6: Prerequisites And Requirements
PCW-2TB10 People Counter PREREQUISITES AND REQUIREMENTS A R D W A R E Basic hand tools are required to mount the sensors on door frames or opposing walls. Mounting hardware included. O F T W A R E Windows Operating System... -
Page 7: Rx Unit Configuration
PCW-2TB10 People Counter E N S O R ON F IGU R A T IO N NOTE: Both your sensors the RX unit and the TX unit must be configured into the same mode in order to function properly. RX U... -
Page 8: Installation
PCW-2TB10 People Counter INSTALLATION Understanding of side-firing, front-firing, and dual-firing is important before mounting your brackets. Your desired operating mode will determine the position of your mounting brackets. Proper orientation and alignment is required for counters to function properly. An orientation sticker (a red circle) has been placed on each unit to aid in identifying the correct orientation. -
Page 9: Side Mode
PCW-2TB10 People Counter I D E O D E Side-firing mode is used when mounting the sensors on a door frame. It is a non-directional mode, meaning that the sensors will not be able to distinguish between entries and exits. -
Page 10: Limited Warranty
PCW-2TB10 People Counter LIMITED WARRANTY HARDWARE: SenSource, Inc. warrants to the original end user ("Customer") that this product will be free from defects in workmanship and materials (under normal use) for one year from date of shipment from SenSource, Inc. or its authorized reseller. SenSource, Inc.'s sole obligation under this express warranty shall be (at SenSource, Inc.'s option and expense) to replace the product or part with a comparable product or part, repair the product or part, or...
