Rivers Edge Perimeter RE764 Assembly Instructions

HuntRiversEdge.com
Perimeter Pod Curtain Kit (RE764)
™
ASSEMBLY INSTRUCTIONS
Tools needed – two 7/16" wrenches
IMPORTANT ASSEMBLY TIP: DO NOT TIGHTEN NUT & BOLT COMBINA-
TIONS COMPLETELY UNTIL ALL PARTS ARE ASSEMBLED TOGETHER!
FINGER TIGHTEN ONLY PLUS ONE TURN OF A WRENCH ONLY! THIS
WILL TEMPORARILY HOLD THE LOCK NUT ON THE BOLT WHILE
HELPING ALIGNMENT OF ALL PARTS! AFTER ALL PARTS ARE AS-
SEMBLED TOGETHER, ALL NUT & BOLT COMBINATIONS MUST BE
COMPLETELY TIGHTENED!

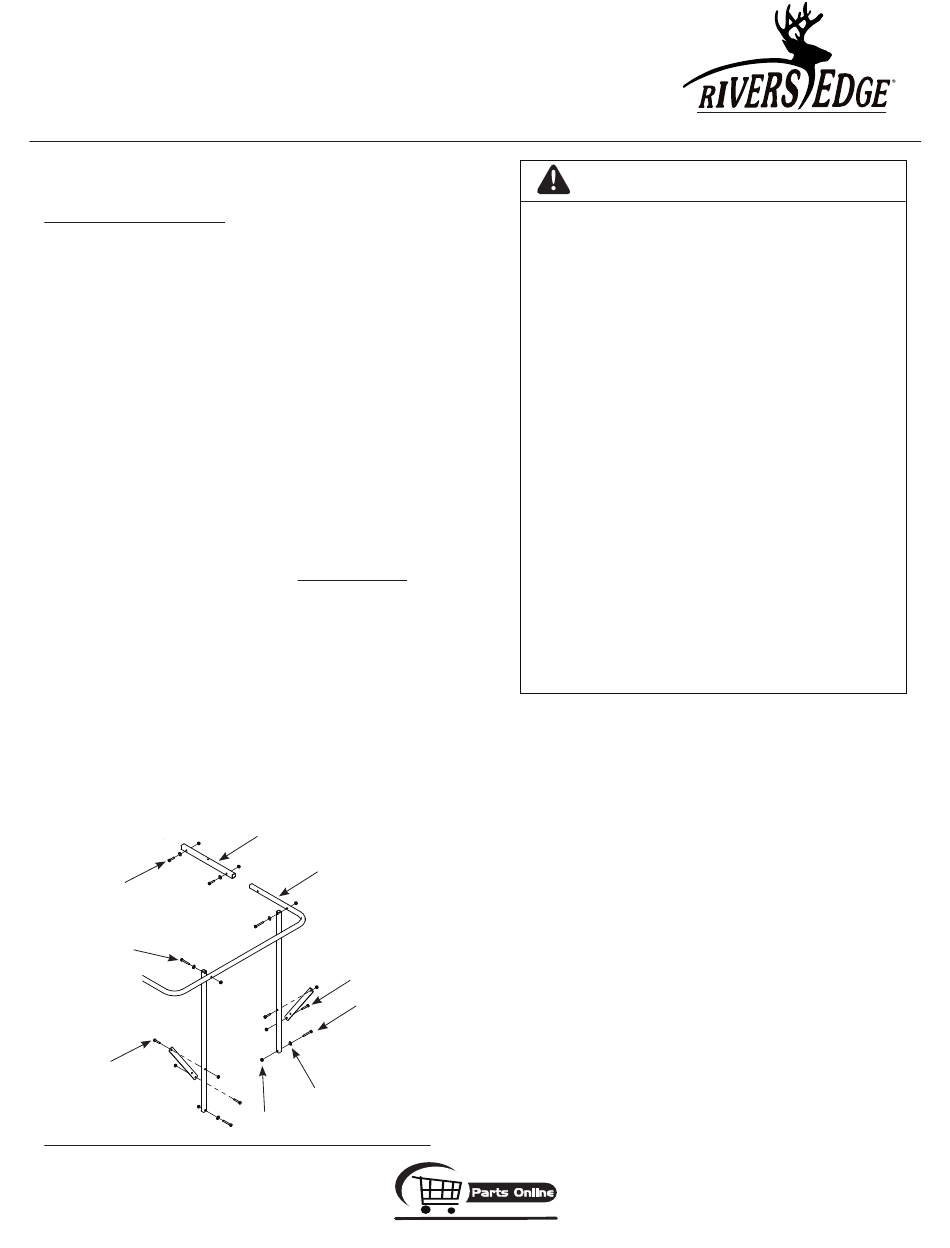

1. Attach the (4) uprights (TP162) to the platform using (4) provided 1/4-20
x 2" bolts, locknuts and washers. SEE FIGURE . DO NOT tighten all
nuts and bolts completely!
2. Attach the (4) flat bar supports (AL7) to the inside of uprights using (4)
provided 1/4-20 x 1-1/4" bolts and locknuts. SEE FIGURE .
3. Attach the opposite end of flat bars supports to the platform using (4)
provided 1/4-20 x 1-1/2" bolts and locknuts. SEE FIGURE .
4. Insert the (2) curtain rails (TP161) into the (2) spanner tubes (TWR26)
forming a square. Using (4) provided 1/4-20 x 1-1/4" bolts, locknuts and
washers, secure the curtain rails and spanner tubes together. SEE FIGURE
.
5. Attach the assembled rail square to the outside of uprights using (4) pro-
vided 1/4-20 x 2" bolts, locknuts and washers. SEE FIGURE . You must
now tighten all nut & bolt assemblies securely. DO NOT crush tubing
when tightening!
6. The side of curtain with numerous Velcro loops is the top side of curtain.
Attach the top side of curtain to the curtain frame by wrapping all Velcro
attachment points around metal tubing and securing together. Curtain
should be positioned with zippered door on the front/center of your ladder
for entry and exit purposes.
7. Once top of curtain is secured properly, pull the bottom edges of curtain
down around the foot platform. The sewn-in elastic bungee will securely
grab the lower corners of your platform. Attach remaining Velcro loops on
bottom/back seam of curtain securely.
1/4-20 x 1-1/4" bolts
1/4-20 x 2" bolts
1/4-20 x 1-1/4" bolts
FIGURE
Page
spanner tube
pod curtain rail
1/4-20 x 1-1/2" bolts
1/4-20 x 2 bolts
washers
locknuts
HuntRiversEdge.com
wARNING
READ, UNDERSTAND AND FOLLOw ALL ASSEMBLY,
INSPECTION, MAINTENANCE, & USE INSTRUCTIONS
PROVIDED BEFORE EACH USE. FAILURE TO FOLLOw
ALL wARNINGS AND INSTRUCTIONS COULD RESULT
IN SERIOUS INJURY OR DEATH.
IF ANY INSTRUCTIONS ARE NOT UNDERSTOOD OR IF
YOU HAVE A PARTS ISSUE CALL 800-450-EDGE (3343)
BEFORE USING.
DOUBLE CHECK ASSEMBLY STEPS TO BE CERTAIN
YOU HAVE CORRECTLY ASSEMBLED THIS PRODUCT.
ALwAYS HAVE THREE POINTS OF CONTACT wHILE
CLIMBING LADDER.
BE SURE TO RAISE AND LOwER YOUR wEAPON AND
GEAR wITH A HAUL LINE. GUN BARREL END AND
ARROw TIPS MUST BE POINTED DOwN- AwAY FROM
YOU.
wHEN HUNTING FROM A TREESTAND/POD STAND,
FALLS CAN OCCUR ANY TIME AFTER LEAVING THE
GROUND CAUSING INJURY OR DEATH.
INSTRUCTIONS SHOULD BE KEPT IN A SAFE PLACE
AND REVIEwED AT LEAST ANNUALLY.
NEVER USE ANY PRODUCT THAT HAS NOT BEEN
MAINTAINED OR INSPECTED PROPERLY – YOUR LIFE
DEPENDS ON IT!
© 2009 Rivers edge Treestands, Inc.
TREESTANDS
OMRe76409
Rev. 01/21/09
All Rights Reserved.
800-450-EDGE (3343)
