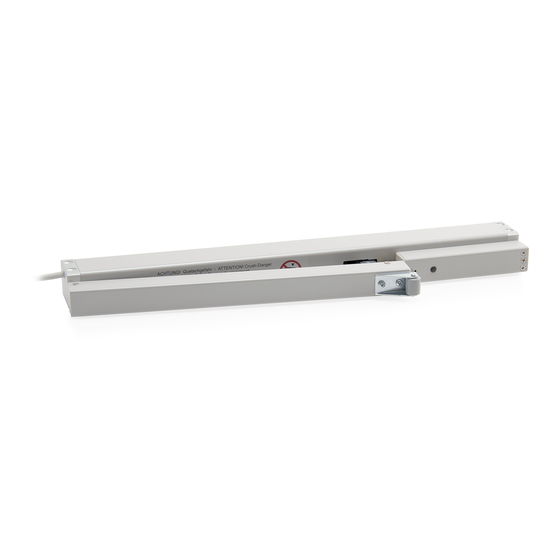

Summary of Contents for D&H Dyer DDS 54/500

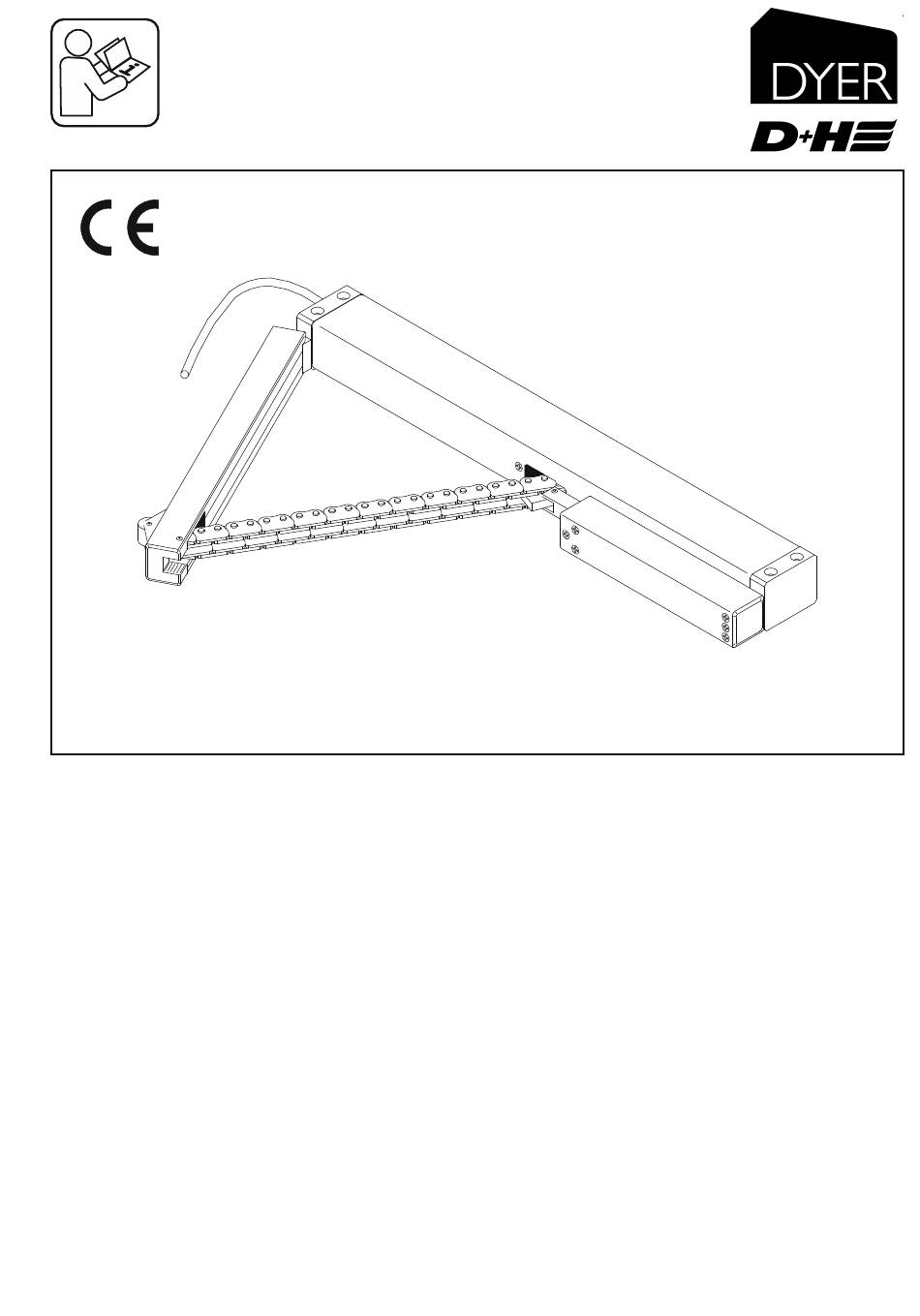

- Page 1 DDS 54/500 instructions...
-
Page 2: Intended Use
WARNING Intended use Read all safety warnings, instructions, illustrations - Chain drive for electric opening of doors and specifications provided with this product. - Operating voltage 24 V DC Failure to follow all instructions listed below may - Useable in SHEV systems for operating smoke result in electric shock, fire and/or serious injury. -
Page 3: Technical Data
Technical data Forces Type DDS 54-500 Rated voltage 24 V DC, ± 15%; 1A Nominal pressure force 500 N* +20% switch-off reserve Nominal pull force 150 N Opening width ca. 90° Runtime-OPEN ca. 43s * Delay (OPEN) 3s (for door unlocking) Runtime-CLOSED ca. - Page 4 Connection Junction box Electrical door unlocking device (TÖ) 24 VDC, max. 1 A, 100 % ED/DC EM 47 K * DDS 54 TÖ (YE) Mot. a Mot. b (WH) (BN) Mot. b (BN) Mot. a (WH) -BRV (GY) Option / Opcional (PK) -V-SA -V-SZ...
- Page 5 Mounting 20mm screws not included Mounting 4x M5x45 4x M5x45 DDS 54/500...
- Page 6 Abmessungen /Dimensions / Dimensión 40mm Dyer Environmental Controls Ltd Unit 10 Lawnhurst Trading Estate, Cheadle Heath, Stockport SK3 0SD Tel: +44 (0)161 491 4840 E-Mail: enquiry@dyerenvironmental.co.uk www.dyerenvironmental.co.uk...
