ETNSTCI/ETNSTCILF
Ice/sand protected tanks
Installation Manual
ETNSTCI
SKIPPER Electronics AS
Enebakkveien 150
P. O. Box 151, Manglerud
0612 Oslo, Norway
www.skipper.no
Combo Tank Steel
Telephone:
+47 23 30 22 70
Telefax:
+47 23 30 22 71
E-mail:
support@skipper.no
Co. reg. no:
NO-965378847-MVA
ETNSTCILF
Document no: DM- BETNSTCI-LF
Edition: 2021-01-29
Rev: 1319
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Skipper ETNSTCI

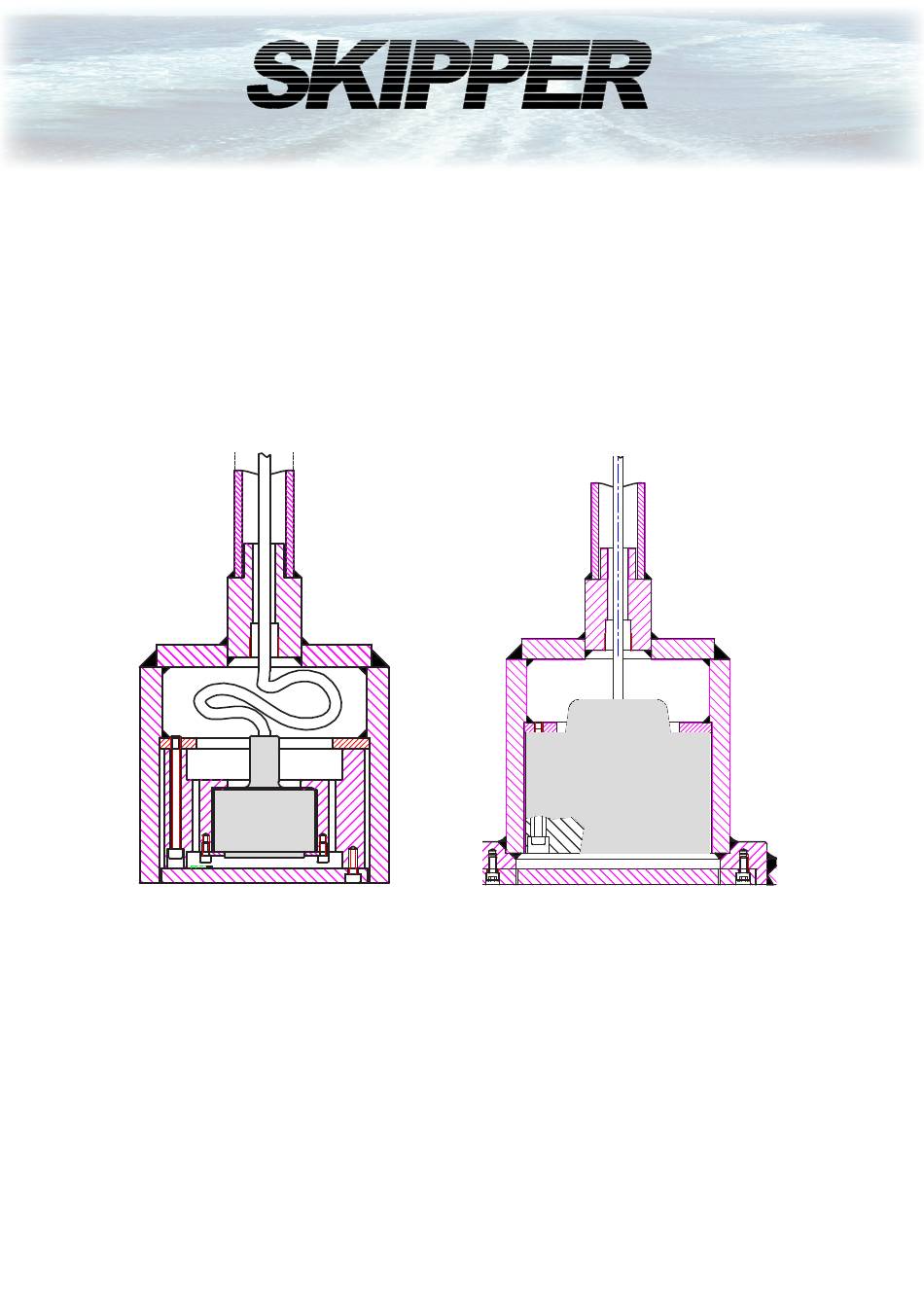

- Page 1 Combo Tank Steel ETNSTCI/ETNSTCILF Ice/sand protected tanks Installation Manual ETNSTCILF ETNSTCI SKIPPER Electronics AS Telephone: +47 23 30 22 70 Enebakkveien 150 Telefax: +47 23 30 22 71 P. O. Box 151, Manglerud E-mail: support@skipper.no Document no: DM- BETNSTCI-LF 0612 Oslo, Norway Co.
- Page 2 SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual Copying of this document, and giving it to others and the use Weitergabe sowie vervielfältigung dieser unterlage, or communication of contents thereof, are forbidden without verwertung und mitteilung ihres inhaltes nicht gestattet, express authority. Offenders are liable to the payment of soweit nicht ausdrücklich zugestanden.
-
Page 3: Table Of Contents
3. Welding guidance combo tank ......................7 4. Cable pipe for transducer tank ......................8 5. ETNSTCI Ice tank for high frequency transducer sound (100 mm) 50/200 kHz......9 6. 50 or 200 kHz Transducer in ice tank ETNSTCI TC-2002 ............10 7. ETNSTCILF Ice tank for low frequency transducer sound (191 mm) 38/24 kHz ......11 8. -
Page 4: General Information
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 1. General information The SKIPPER ETNSTCI/ETNSTCILF combo ice/sand protection tank is used for installation of: 1. Echo sounder transducer type (24, 38, 50 and 200 kHz). Caution! Be aware that the transducer contains high precision parts and therefore proper handling when mounting is essential for the final result. -
Page 5: Important
To install the transducer in a tank with ice protection plate in stead of in a sea valve flush with the hull result in worse performance (still inside IMO requirement) and higher risk of transducer damage. Transducer damage in a tank with Ice protection is normally not covered by any SKIPPER warranty. -
Page 6: Combo Transducer Tank
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 2. Combo transducer tank RevNo Revision note Date Signature Checked 35±0,2 219,1 Itemref Quantity Title/Name, designation, material, dimension etc Article No./Reference Designed by Checked by Approved by - date File name Date Scale SG-2004/02/05... -
Page 7: Welding Guidance Combo Tank
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 3. Welding guidance combo tank Installation and welding guidance for Tranducer Tank Page 7 of 14 Edition: 2021-01-29... -
Page 8: Cable Pipe For Transducer Tank
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 4. Cable pipe for transducer tank RevNo Revision note Date Signature Checked Yard Supply WATERTIGHT JUNCTION BOX MUST BE SITED FOR EASY (Included in delivery on ICE Tank) ACCESS IN AN EXPLOSION-SAFE PLACE, OVER MAX. WATHER LINE. -
Page 9: Etnstci Ice Tank For High Frequency Transducer Sound (100 Mm) 50/200 Khz
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 5. ETNSTCI Ice tank for high frequency transducer sound (100 mm) 50/200 kHz. 1. Weld the tank at the selected suitable position according to welding instruction/notes “Welding notes!” on page 5 2. Install the cable pipe (yard supply) between the transducer tank top and a position above Max waterline. -
Page 10: Or 200 Khz Transducer In Ice Tank Etnstci Tc-2002
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 6. 50 or 200 kHz Transducer in ice tank ETNSTCI TC-2002 RevNo Revision note Date Signature Checked Assembling order Assembled Cable stuffing Tube to be welded to end of Cable Pipe at a position well above Load Water Line. -
Page 11: Etnstcilf Ice Tank For Low Frequency Transducer Sound (191 Mm) 38/24 Khz
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 7. ETNSTCILF Ice tank for low frequency transducer sound (191 mm) 38/24 kHz 1. Weld the bottom flange and weld the the tank to the bottom flange according to welding instructions/ note. See “Welding notes!” on page 5. -
Page 12: 38 Khz Transducer In Ice Tank Etnstcilf Tc-2002
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 8. 24/38 kHz Transducer in ice tank ETNSTCILF TC-2002 Edition: 2021-01-29 Page 12 of 14... -
Page 13: Bleeding The Tank
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 9. Bleeding the tank After undocking of the ship, it may be necessary to open the cable gland on top of the cable pipe to bleed out the air to ensure that water will fill the transducer tank. If the tank is not filled with water, the performance of the transducer will be heavily reduced. -
Page 14: Notes
SKIPPER Electronics AS ETNSTCI/ETNSTCILF Installation Manual 10. Notes ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------- ----------------------------------------------------------------------------------------------------------------------------------- Edition: 2021-01-29 Page 14 of 14...
