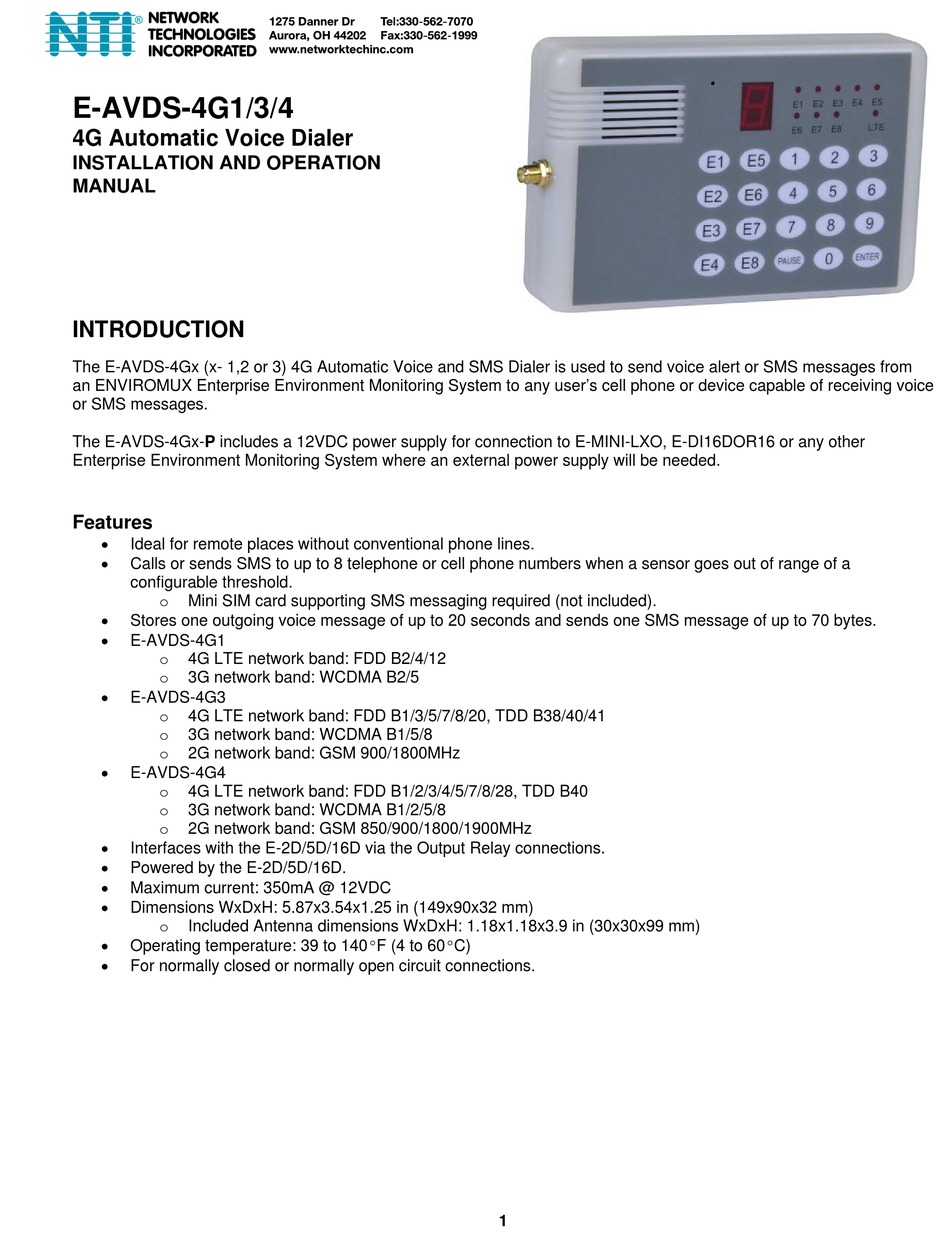

E-AVDS-4G1/3/4

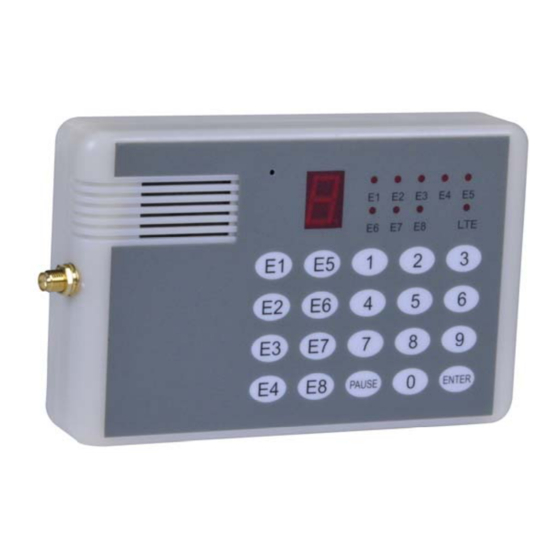

4G Automatic Voice Dialer
INSTALLATION AND OPERATION
MANUAL
INTRODUCTION
The E-AVDS-4Gx (x- 1,2 or 3) 4G Automatic Voice and SMS Dialer is used to send voice alert or SMS messages from
an ENVIROMUX Enterprise Environment Monitoring System to any user's cell phone or device capable of receiving voice
or SMS messages.
The E-AVDS-4Gx-P includes a 12VDC power supply for connection to E-MINI-LXO, E-DI16DOR16 or any other
Enterprise Environment Monitoring System where an external power supply will be needed.
Features
Ideal for remote places without conventional phone lines.
Calls or sends SMS to up to 8 telephone or cell phone numbers when a sensor goes out of range of a
configurable threshold.
Mini SIM card supporting SMS messaging required (not included).
o
Stores one outgoing voice message of up to 20 seconds and sends one SMS message of up to 70 bytes.
E-AVDS-4G1
4G LTE network band: FDD B2/4/12
o
3G network band: WCDMA B2/5
o
E-AVDS-4G3
4G LTE network band: FDD B1/3/5/7/8/20, TDD B38/40/41
o
3G network band: WCDMA B1/5/8
o
2G network band: GSM 900/1800MHz
o
E-AVDS-4G4
4G LTE network band: FDD B1/2/3/4/5/7/8/28, TDD B40
o
3G network band: WCDMA B1/2/5/8
o
2G network band: GSM 850/900/1800/1900MHz
o
Interfaces with the E-2D/5D/16D via the Output Relay connections.
Powered by the E-2D/5D/16D.
Maximum current: 350mA @ 12VDC
Dimensions WxDxH: 5.87x3.54x1.25 in (149x90x32 mm)
Included Antenna dimensions WxDxH: 1.18x1.18x3.9 in (30x30x99 mm)
o
Operating temperature: 39 to 140°F (4 to 60°C)
For normally closed or normally open circuit connections.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for NTI E-AVDS-4G1
Summary of Contents for NTI E-AVDS-4G1
- Page 1 E-AVDS-4G1/3/4 4G Automatic Voice Dialer INSTALLATION AND OPERATION MANUAL INTRODUCTION The E-AVDS-4Gx (x- 1,2 or 3) 4G Automatic Voice and SMS Dialer is used to send voice alert or SMS messages from an ENVIROMUX Enterprise Environment Monitoring System to any user’s cell phone or device capable of receiving voice or SMS messages.
- Page 2 Materials included with this kit: E-AVDS-4Gx Voice dialer 4G Antenna URL slip with path to this manual Included with E-AVDS-4Gx-P Only: 100-240VAC @ 50\60Hz; 12VDC 1A AC Adapter ("-P" model only) Country-specific Line Cord 2 ea.
- Page 3 CONFIGURE THE JUMPERS Configure the jumpers on the E-AVDS-4Gx to be triggered by either the Normally-Closed (N.C.)or Normally-Open (N.O.) relay contact on the E-xD. In the image below, the jumpers are set for connection to the N.O. terminal. To set the “normal” relay state to Normally-Open, apply the J1 jumper to the center and right pin, and J2 jumper to the center and left pin.
-
Page 4: Wiring Methods
WIRING METHODS Connect the cable from the E-AVDS-4Gx to the E-xD according to one of the following diagrams: Note: The attached cable is 700mm (27 inches) long but can be extended up to 100 feet with any 3-conductor 22AWG (minimum) cable. -
Page 6: General Information
FEATURES (1) Speaker (2) Microphone (3) LED 7-segment display- displays the signal strength, number input, and provides indicators for phone numbers When the dot of display blinks slowly, it means the FULL NETCOM module is working normally; When the dot of display blinks fast, it means the FULL NETCOM module is faulty. (4) “E1”... - Page 7 AUTO-DIALER OPERATION Power ON Self-Test: The Dialer will perform a self-test checking signal connection when powered ON. After the self-test, if a connection is made the number on the display will indicate the signal strength (1 = weak, 5 = strong), the decimal point at the lower right corner on the 7 segment display will blink slowly and the dialer will be ready to work.
- Page 8 3. Program the Telephone numbers and Alarm methods for each This dialer supports two alarm methods: voice alarm and SMS alarm Under programming state, press E1, E2, E3...E8 to save alarm receiving numbers and alarm methods. Example : number is 18965713028, choose voice alarm. Operation: E1→18965713028→ENTER→1→ENTER. The dialer saves the number when the 1st “ENTER”...
- Page 9 7. Program and Check number of times to repeat dialing in an alarm state With the dialer in a programming state: press “6” to input alarm dialing times (0-9), press "ENTER”. If “∩” displays it means the input was correct, and the dialer will return to state “5”. Program how many times dialing should be repeated during an alarm state (initial setting is 5 times) 0= unlimited dialing;...
-
Page 10: Troubleshooting
11. Reset to factory default settings In programming state (in state “5”), press “8”, input “911” and then “ENTER” If “∩” is displayed it means correct operation, and will return to state “5”. Note: Most of the settings can be restored to factory default, except for voice record and triggering method (jumpers) These need to be manually reset. -
Page 11: Specifications
5.87x3.54x1.25 in (149x90x32 mm) Included Antenna 1.18x1.18x3.9 in (30x30x99 mm) dimensions (WxDxH) Part # Supported Country Supported Bands* Supported Frequencies (in MHz) E-AVDS-4G1 North America (AT&T) FDD-LTE: B2/B4/B12 1900/1700/700 WCDMA: B2/B5 1900/850 E-AVDS-4G3 Europe / Middle East / FDD-LTE: B1/3/5/7/8/20...
