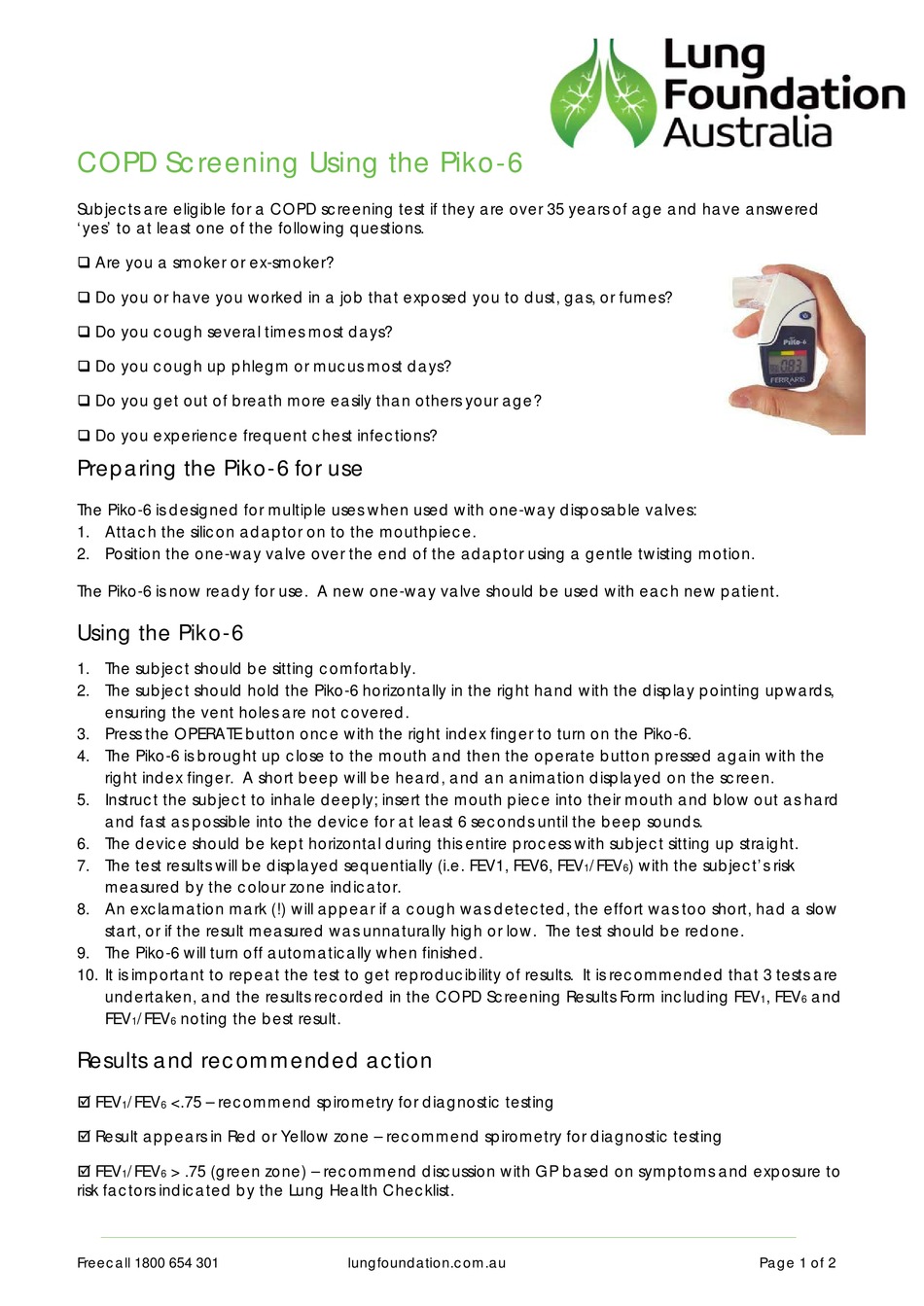

COPD Screening Using the Piko-6

Subjects are eligible for a COPD screening test if they are over 35 years of age and have answered
'yes' to at least one of the following questions.
 Are you a smoker or ex-smoker?
 Do you or have you worked in a job that exposed you to dust, gas, or fumes?
 Do you cough several times most days?
 Do you cough up phlegm or mucus most days?
 Do you get out of breath more easily than others your age?
 Do you experience frequent chest infections?

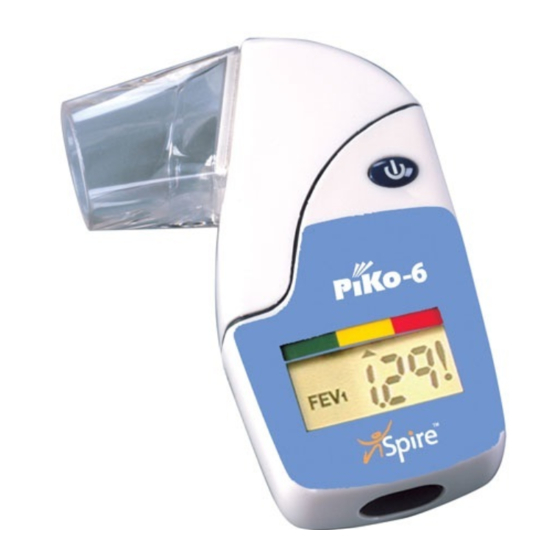

Preparing the Piko-6 for use

The Piko-6 is designed for multiple uses when used with one-way disposable valves:
1. Attach the silicon adaptor on to the mouthpiece.
2. Position the one-way valve over the end of the adaptor using a gentle twisting motion.
The Piko-6 is now ready for use. A new one-way valve should be used with each new patient.

Using the Piko-6

1. The subject should be sitting comfortably.
2. The subject should hold the Piko-6 horizontally in the right hand with the display pointing upwards,
ensuring the vent holes are not covered.
3. Press the OPERATE button once with the right index finger to turn on the Piko-6.
4. The Piko-6 is brought up close to the mouth and then the operate button pressed again with the
right index finger. A short beep will be heard, and an animation displayed on the screen.
5. Instruct the subject to inhale deeply; insert the mouth piece into their mouth and blow out as hard
and fast as possible into the device for at least 6 seconds until the beep sounds.
6. The device should be kept horizontal during this entire process with subject sitting up straight.
7. The test results will be displayed sequentially (i.e. FEV1, FEV6, FEV
measured by the colour zone indicator.
8. An exclamation mark (!) will appear if a cough was detected, the effort was too short, had a slow
start, or if the result measured was unnaturally high or low. The test should be redone.
9. The Piko-6 will turn off automatically when finished.
10. It is important to repeat the test to get reproducibility of results. It is recommended that 3 tests are
undertaken, and the results recorded in the COPD Screening Results Form including FEV
FEV /FEV noting the best result.
1 6
Results And Recommended Action
 FEV /FEV <.75 – recommend spirometry for diagnostic testing
1 6
 Result appears in Red or Yellow zone – recommend spirometry for diagnostic testing
 FEV /FEV > .75 (green zone) – recommend discussion with GP based on symptoms and exposure to
1 6
risk factors indicated by the Lung Health Checklist.
Freecall 1800 654 301 lungfoundation.com.au
/FEV ) with the subject's risk
1 6
, FEV and
1 6
