Miweba Mercedes-Benz GLC 63 S Coupe Installation And Operation Instructions

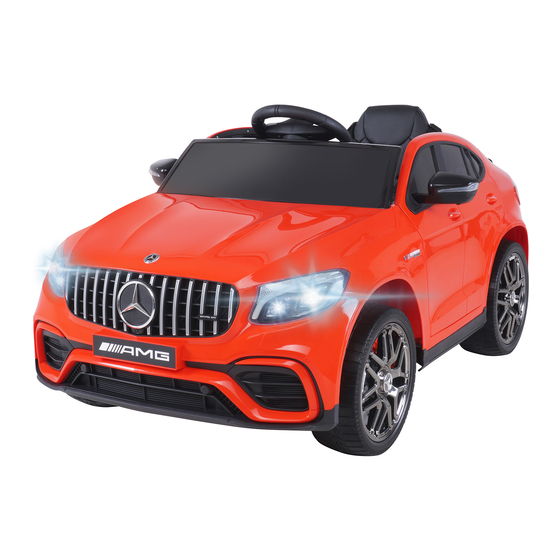

Mercedes-Benz GLC 63 S Coupe
Children electric car
Installation and Operation Instructions
Stimulation car model
System driven by remote control
Forward, backward and steering operations by remote control
Forward and backward operations by manual shift
Steering wheel' s music function
Techniques of volume regulation and MP3' amplification function
Battery power display
WARNING: The toy is to be assembled by an adult.
In unassembled state contain potentially hazardous sharp points,
sharp edges and small part,so please keep out of baby's reach
Warning： Not to be used in traffic.
Parts List:(Name and Quantity)
A
B
G H
A B C D E
Name
Body Windshield Wheel cover Front wheel Rear wheel
Number
1 1 4 2 2
Windshield

Product Specifications:

Name Parameters
Battery 6V7AH/12V4.5AH/12V7AH
Drive Motor
Motor
Steering Motor
Swing Motor
Age restrain 37-95 months
maximum load 25KG
Physical Dimension 115*70*55CM
Speed 3-8KM/H
Hours of Use Using 1-2 hours after Charging 8-10hours
Charging Input: 220V-240V Output: 6V500mA/12V1000mA
Remote Control Battery AAA1.5V*2
C D E
I J K L
F G H I J K
Steering wheel Car door Reflector Chair Remote control Charger
1 2 2 1 1 1
Chair
Steering wheel
Car door
Rear wheel
Rearview mirror
Shim
Wheel cover
Front wheel
Cotter pin
Shim
6V390*1/12V390*2/12V390*4(18000RPM)
6V380*1/12V380*1(5000RPM)
6V540*1/12V540*1(6000RPM)
① ②
③
F
⑧ ⑩
⑨
M N
Function indication
⑦
① Multi-Media
L M N ② The voltage display ⑧ USB interface
Shim Cotter pin Screw
③ Dashboard ⑨
6 4
④ Light switch
⑩
Speed selection
⑤
⑥ Power switch

Remote Control Function and Instructions

•Never switch forward and backward operations in the moving,
or the gear box and motor will be damaged
•Use the remote control with battery
•Only the baby's legal guardian can use the remote control.
•The product is operated mainly by remote control
Shim
Cotter pin
Forward
Wheel cover
Backward
1 . Tum on the power of the baby carrier , press and hold the
pairing button until the speed indicator light switches on
without flashing .
2 . Release the pairing button , and the spee will switch off .
3 . If the speed indicator light switches on again , then the
pairing is successful ; if not , please repeat steps 1 and 2 .
Please check if it is locked when the buttons do not work .
Battery Operating Specifications
Never mix new and old batteries, or different kinds of batteries.
Never mistake positive and negative electrode of battery,
or short circuit will happen.
Non-rechargeable batteries are not to be recharged
Install batteries in a right polarity.
Only adults can recharge or change batteries.
Never make power port' s short circuit happen.
Recharge the battery only when it is taken out of the toy car.
Take exhausted battery out of the toy car and keep it out of
Children' s reach.
Remove battery screws with a screwdriver, open battery cap
as the arrow signals, and in the 2.4G remote control model
install two AAA 1.5V batteries in a right polarity.

Function

⑦
④ ⑤⑥
Motion swing
TF interface
MP3 interface
Forward
stop
backward
Speed
Left Righ
Pair code
Stop
Indicator Light
