Technical Bulletin
AA195PM Assembly
Assembling The AA195PM Two Hole Outdoor Pole Mounting Kit
The AA195PM mounting kit contains all hardware items required for pole mounting and weatherproofing the
ESTeem for outdoor installations. The ESTeem Model 195 series (195E & 195 Narrowband) and Horizon series
modem together with the AA195PM mounting kit allows the modem to be directly mounted to a round pole
between 1.25" and 2" in diameter. Any pole larger that 2" in diameter will require banding through the Pole
Mount Brackets.
Step 1: Pole Mounting Kit Packaging
a) If you purchased an AA195PM mounting kit with your ESTeem modem, the kit will be packed in
the same packing box as the modem (Figure 1).

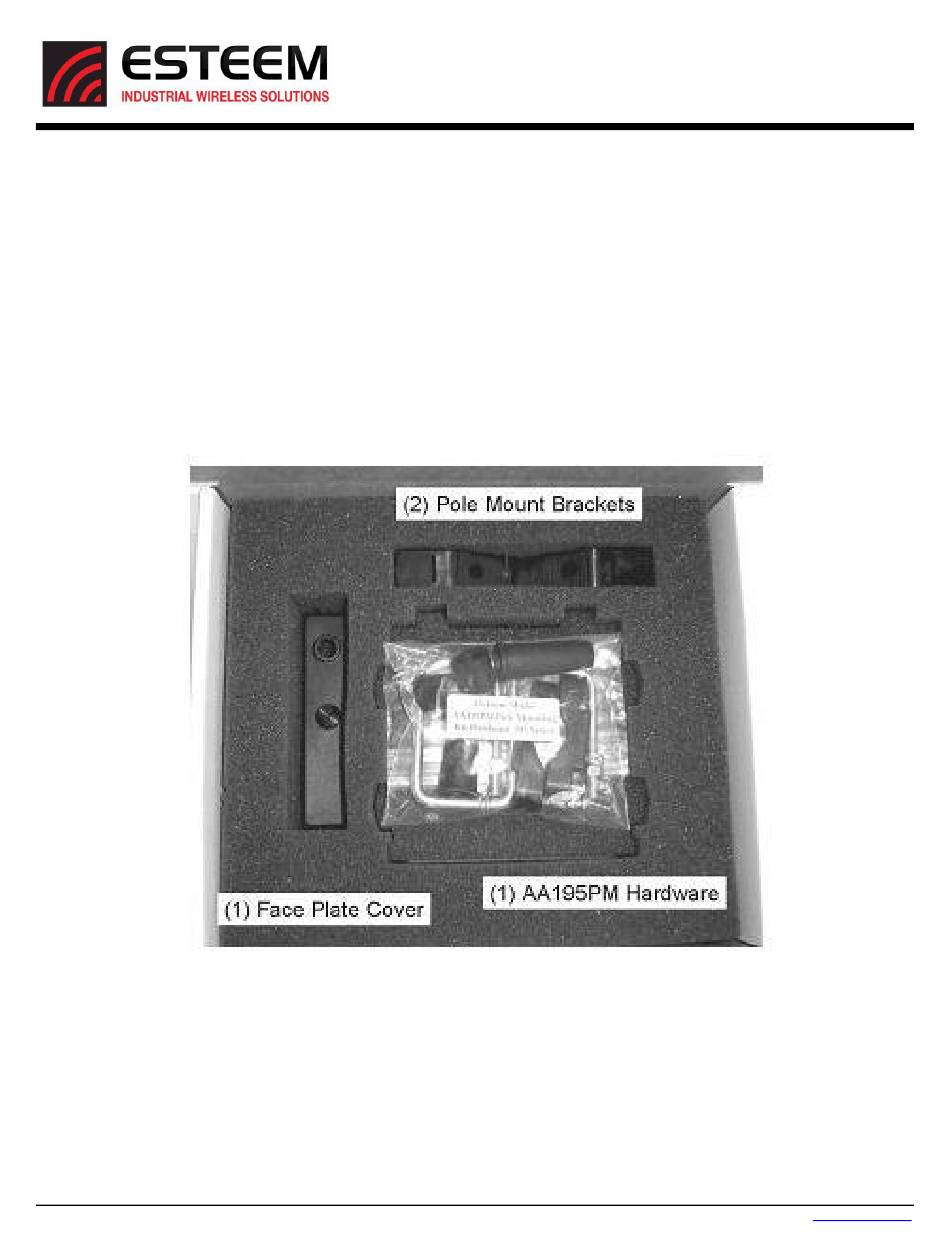

Figure 1: Pole Mounting Kit Packaging
ESTeem
Industrial Wireless Solutions
Specifications subject to change without notice
415 North Quay Street Kennewick, WA 99336
www.esteem.com
Phone (509) 735-9092 Fax (509) 783-5475
Revised: 01 July 2016
Advertisement
Table of Contents
Summary of Contents for ESTeem AA195PM
- Page 1 ESTeem for outdoor installations. The ESTeem Model 195 series (195E & 195 Narrowband) and Horizon series modem together with the AA195PM mounting kit allows the modem to be directly mounted to a round pole between 1.25” and 2” in diameter. Any pole larger that 2” in diameter will require banding through the Pole Mount Brackets.
- Page 2 Technical Bulletin AA195PM Assembly Step 2: Tools Required for Assembly Figure 2: Tools Required for Assembly Step 3: Parts Inventory a) Remove the Pole Mounting Kit and be sure you have received the following: Figure 3: Parts Inventory ESTeem Industrial Wireless Solutions Specifications subject to change without notice 415 North Quay Street ...
- Page 3 Place the four 10-24 Pan Screws into the holes on the underside of the Heat Shield. b) Attach the Heat Shield over the top of the ESTeem modem sliding the screws through the holes on either side of the modem’s casing.
- Page 4 Technical Bulletin AA195PM Assembly Step 6: Pole Mounting Bracket Attachment a) On the bottom of the radio, line up one Pole Mounting Bracket Assembly with the exposed screws. Assembly will fit width wise across the bottom of modem. b) Using a Philips Head Screwdriver through the access holes provided in the Heat Shield, secure the Pole Mounting Bracket Assembly.
- Page 5 Technical Bulletin AA195PM Assembly Step 8: Ethernet Cable Routing – Single Cable (for dual Ethernet Cables or Ethernet/Serial, see Step 12) a) Feed the CAT-5e Ethernet connector through the Face Plate Cover. b) Secure the Ethernet Cable Boot over the hole in the Face Plate Cover.
- Page 6 Step 10: Antenna Connector Boot Installation a) Attach the antenna connector boots as shown for either dual attached antennas or external antennas. b) You are now ready to mount the ESTeem modem. Figure 10: Antenna Connector Boot Installation ESTeem Industrial Wireless Solutions Specifications subject to change without notice 415 North Quay Street ...
- Page 7 Technical Bulletin AA195PM Assembly Step 11: Mounting Modem to Pole a) Place modem with Pole Mounting Brackets against pole facing the heat shield towards the sun’s path. (Southern facing in Northern Hemisphere) b) Verify direct mount antennas are mounted in open air with the radio mounted at the top of the pole.
- Page 8 Technical Bulletin AA195PM Assembly Step 12: Ethernet Cable Routing – Double Ethernet Cables a) Feed the CAT-5e Ethernet connectors through the Face Plate Cover. b) Secure the Ethernet Cable Boot over the hole in the Face Plate Cover. c) Repeat steps “a” and “b” for second Ethernet connector.
