Summary of Contents for Kuzma RD Kit

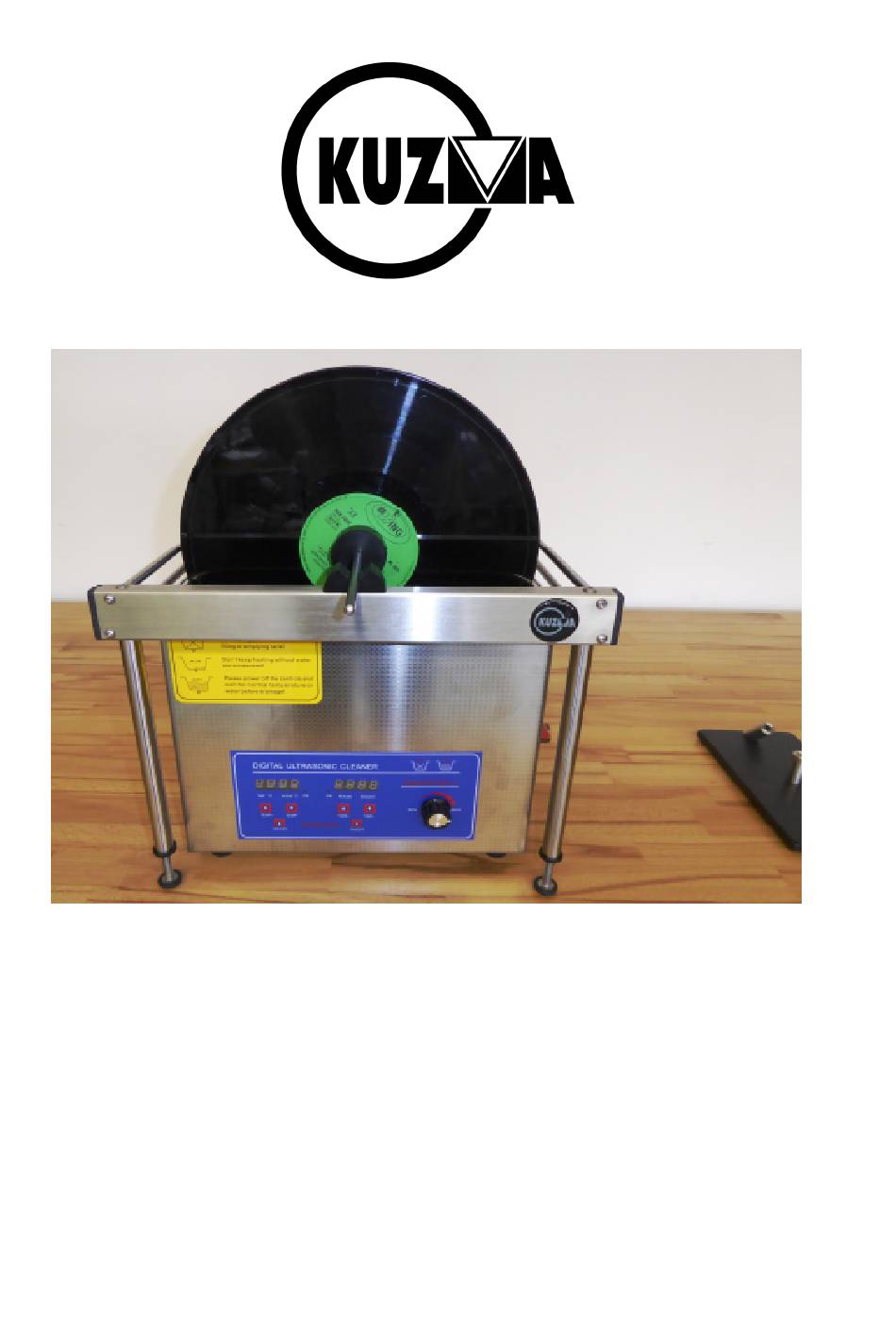

- Page 1 Kuzma RD Kit for ultrasonic record cleaning ( ULTRASONIC CLEANER BATH IS NOT SUPPLIED WITH KIT) INSTRUCTION MANUAL FOR RD KIT 2019-10 Page | 1...
- Page 2 (using our guidlines). The Rotating and Drying record rack kit ( RD kit) will allow you to submerge records in the ultrasonic cleaning bath and position them in a suitable drying position. For 45 EP look Notes on page 15.
- Page 3 RD kit ( rotating and drying) 8 pcs extension legs included RD kit: 1x main frame with motor ( DC 9V with provided mains adaptor) 1x spindle ( record holder) 1x drying stand 1x clamp ( grip lock) 8x extension legs( 40 mm- for higher size cleaners)
- Page 4 5-20 minutes range (suggested cleaning time is 10-15 minutes) Power control: 0-100% ( suggested cleaning power is 50-60 % of full power) In case of doubt ask your dealer or us directly, sending us technical details about cleaner. Ultrasonic record cleaning process with RD kit Page | 4...
- Page 5 For 45 EP look Notes on page 15. RD kit assembling and preparation: Locate the various RD kit parts. See Fig.1.0. The only tool which is not provided in kit the for assembling is medium size Philips screw driver. You need to assemble the frame and stand.
- Page 6 Fig. 1.2. Stand Fig. 1.3. Spacer, clamp Fig. 1.4. Extension legs Frame assembly: Fig. 2.0. The frame consists of two square stainless steel tubes fitted together with 4 thin stainless steel rods and screws. Fig. 2.0- 2.8. Fit rods in the larger holes on one side of the square tube and fix screws in the opposite side in the smaller holes with allen key 2,5 mm.
- Page 7 Fig. 2.2. Fixing rod into square tube Fig. 2.3. Frame with 4 rods nearly assembled Then fit the other end of rods into the second square tube which has a black PVC ring fitted with two screws on the same side as motor assembly. Secure all 8 screws with moderate force. Hold the frame in a vertical position and fit one leg using the long large screw and Allen key 3mm.
- Page 8 Fig. 2.8. Legs assembled on frame Frame height: Fig. 2.7. Depending on the height of the ultrasonic cleaner, add or remove extension legs to the chart below. Simply screw them on the top as per Fig. 2.7. Measure height of cleaner from support to the top edge of the bath. Cleaner height: 265-315 mm leg 250 mm ( remove one extension leg) 305-355 mm leg + 1 extension leg (total length 290 mm) 345-395 mm leg + 2 extension leg (total length 330 mm)
- Page 9 Fig. 3.2. Motor assembled Fig. 3.3. Frame assembled Frame positioning: Fig. 4.0. Position the main frame over the US cleaner bath in such a way that the motor housing with the switch is at the back. Be sure that in the process of buying US cleaner the outer size and bath has suggested inner size. Otherwise the main frame might not fit around the bath.
- Page 10 Fig. 4.4. Frame & bath-side view-observe height Fig. 4.5. Frame & bath- top view Connecting motor and spindle position: Fig. 5.0. Plug in DC voltage adaptor at the back of motor housing, plug into mains and switch on motor. Fit over the frame spindle in a such way that the black tooth wheel is on the top of the tooth wheel in the motor housing.
- Page 11 Fig. 6.0. Spindle in the stand-vertical Fig. 6.1. Spindle with first spacer Record fitting on the spindle: Fig. 7.0. For the first time put on a single LP and fit it over the frame to check height and position of the frame over US bath.
- Page 12 US cleaner bath filling: Fig.8.0. For the first time read bath preparation on page 5 again. Plug in mains connector to US bath after you fill in liquid. As you know you should NOT switch on ultrasonics without water in the bath! Preparation of liquid: Pour distilled water into bath to about 50 mm below the top edge.
- Page 13 Fig. 9.0. Holding spindle with LPs Fig. 9.1. Lowering spindle in the rotation position Fig. 9.2. Spindle position in bath- side view 1 Fig. 9.3. Spindle position – side view 2 When you are satisfied switch on rotation and ensure records rotate. The water level should be below the black spacers or labels.
- Page 14 Spindle lifting and positioning in drying position: Fig.10.0. When the time is nearly finshed very slowly lift up the spindle with records and gently shake it. Position spindle with records in tilted hole- keeping the wetter part of the records in the lower position. Less water is stuck on record surfaces if the ultrasonic is still working while lifting records out of the bath.* Of course you can also lift records out of the bath after ultrasonic is turned off.
- Page 15 For 45 EP( singles) cleaning: ask for 45 adaptors to center records and fit them as on photo- but you might need to erase liquid level in bath. Fig 12. 45 rpm singles adaptor Franc Kuzma Kuzma Ltd Page | 15...
