HW210AX

DVD PLAYER

To ensure that the product is operating at its best, please read this user's manual before use and

keep it for future reference.

Table of Contents

Need help?

Do you have a question about the HW210AX and is the answer not in the manual?

Questions and answers

Summary of Contents for MediaSonic HW210AX

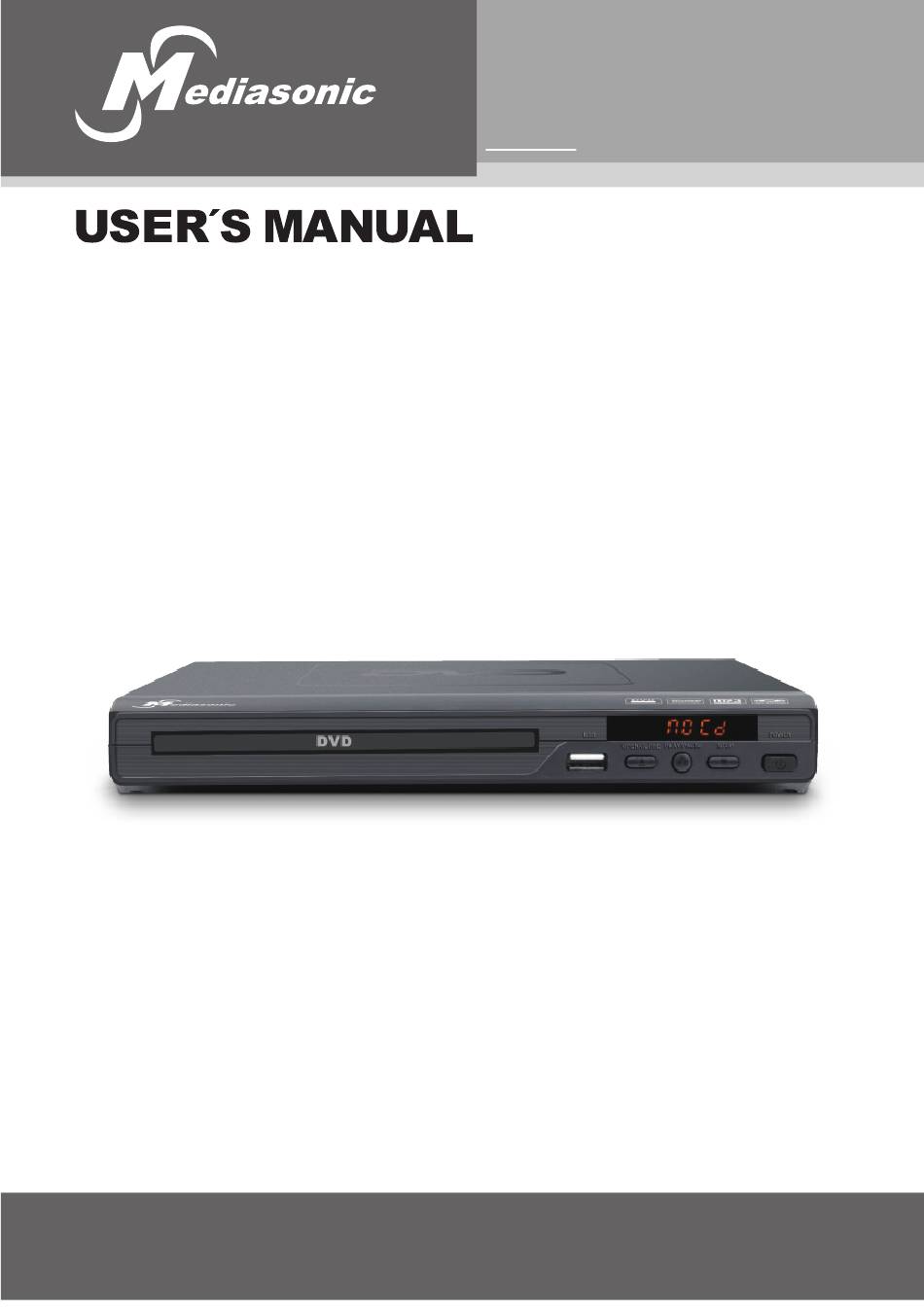

Page 1 HW210AX DVD PLAYER To ensure that the product is operating at its best, please read this user’s manual before use and keep it for future reference.
Page 3: Safety Instructions
Safety Instructions Danger! Caution! This symbol alerts you of dangerous voltage inside. To prevent electric shock, do not open the enclosure. Important! This warning sign alerts you of important instructions accompanying the product. This symbol for CLASS II (Double Insulation) indicates that the equipment has been designed with double insulation surrounding live parts.
Page 4: Front Panel
Front panel Open/Close DVD Tray Play/Pause Remote Sensor Stop Display Power On/Off USB port Back panel COAX DVD PLAYER MODEL:HW210AX POWER SOURCE:100-240V~50/60Hz POWER CONSUMPTION:10W VIDEO AUDIO OUT/VIDEO OUT HD OUT 9 2 x Audio Output ports...
Page 5: Connection Diagram
Connection Diagram COAX DVD PLAYER MODEL:HW210AX POWER SOURCE:100-240V~50/60Hz POWER CONSUMPTION:10W VIDEO HD OUT AUDIO OUT/VIDEO OUT Starting up • Connect the DVD Player to your TV and/or amplifier as illustrated above. • Turn TV on and select appropriate input port: HDMI or AV.
Page 6 Remote Control Unit COPY COPY ZOOM TITLE 0-10/10+...
Page 7: Playing A Disc
Playing a disc Once a disc is loaded, the player will start playing automatically. • If the disc is a DVD, the player will show the DVD menu or title menu. • If the disc is a VCD 2.0, the player will activate PBC playback control status.
Page 8 Play mode (N/P): for composite only Press N/P to toggle between NTSC, PAL and AUTO. Subtitles Press SUBTITLE to display the subtitles when watching movies/ recordings on multi-subtitle encoded discs. You can choose from 32 languages. (This function only works with multi-subtitle encoded discs.) For example, to select language 1 (English) from 8 options, press the SUBTITLE button and select “English”.
Page 9: Direction Keys
Direction keys On playing discs, use UP/DOWN/LEFT/RIGHT arrow to select options in the title, menu or setup. Time Press TIME and follow corresponding numerical keys to navigate to specific title, chapter or time. Repeat When playing DVD discs, press REPEAT and select one from the •...
Page 10 Program (PROG) During playing back: press PROG to enter program status, then enter the track numbers desired; for example, 2, 4, 6 and 8. (If you enter a wrong number, you can press CLEAR to remove the numbers.) Use arrow keys to move the cursor to the Play icon, then press ENTER to start playing.
Page 11: Setup Options
Setup options Setup options on System, Language, Audio, Video, Speaker and Digital can be accessed from the main setup menu. Press SETUP on the remote control to display the main menu. • Use UP/DOWN arrows to move up or down in the menu. Then press •...
Page 12 Resolution On HDMI, select one of the following video output resolution: OFF, 720P, 1080I, 1080P. Video setup Your video settings must correspond with the type of connection to your TV or other equipment. Aspect Ratio Use this submenu to select the aspect ratio.
Page 13 NOTE: • Irrespective of what screen format you have selected, if your screen displays in 4:3, the picture will be shown in that format regardless. • For DVDs, the screen format is convertible. • If your screen displays in 4:3, when a DVD with 16:9 display format is played back, the picture will be flattened.
Page 14: Language Setup
Default Use this option to restore the default factory settings. Resume If this option is set to “ON” and the power is turned off, the player will remember where it stopped and when the power is resumed, it will continue to play from that point.
Page 15 Audio language Use this option to set the audio (dubbing) language. Subtitle language Use this option to set the subtitle language, or choose ‘off’ to hide the subtitles. Menu language Use this option to set the film’s menu language.
Page 16: Audio Setup
Audio setup Audio out Use this menu to select your audio output. Use UP/DOWN arrows to adjust the key. Video setup Under this menu you can select options for your image output. Brightness Use UP/DOWN arrows to adjust the brightness.
Page 17 Contrast Use UP/DOWN arrows to adjust the contrast. Use UP/DOWN arrows to adjust the hue. Saturation Use UP/DOWN arrows to adjust the saturation.
Page 18: Speaker Setup
Sharpness Use UP/DOWN arrows to adjust the sharpness. Speaker setup Select options including downmix, subwoofer, center delay, rear delay and size of front, center and rear speakers. Downmix This setting is for Home Theater. If two channels is required, select the Stereo option. Digital setup Use this menu to select digital setup options including OP, dynamic range and dual/mono.
Page 19 OP mode • For nighttime playing, select LINE OUT to set volume at a lower level. For daytime playing, select RF REMOD to set volume at a higher level. • Dynamic range When LINE OUT is selected, use this setting to adjust the line out ratio for a different effect.
Page 20 Audio CD ripping NOTE: • The CD, MP3 disc must be in good condition with no scratches or marks in order to be played smoothly. • The destination USB device must be compatible with the DVD Player and have enough space. In CD playback mode, press the COPY/DEL button on the remote control to display the CD ripping interface.
Page 21 Copying from an MP3 disc to a USB device • Play the MP3 disc on the unit. • Plug your USB device into the port at the front of the unit. Use the DOWN/UP/LEFT/RIGHT arrow buttons to move the cursor on •...
Page 22: Mp3 Disc Playback
MP3 disc playback Follow the basic operating instructions for disc playback. Once an MP3 disc has been inserted, the player will automatically start searching for the information on the disc. When loading MP3 discs in succession, a naviga- tion menu will appear; press the RETURN or STOP button to display the disc menu on the screen.
Page 23: Usb Playback
USB playback This DVD Player supports the following USB playback multimedia formats: MP3, AVI, DAT, JPEG. • Insert your USB device firmly into the USB port at the front panel. y l l multimedia files from the USB device. DVD/USB button to switch to USB mode.
Page 24 Power input AC In: 100-240V 50/60Hz Power consumption 10 W VIDEO Video output HDMI, Sound output 2.1, Stereo, Mono L/R, Mix Mono Signal system/play mode NTSC / PAL / AUTO Supported disc and file DVD, DVD+R/-R, DVD+RW/-RW, VCD, formats CD, CD-R, CD-RW, VCD, HDCD, SVCD, Picture CD, MP3, AVI, DAT, JPEG USB Specification USB 2.0...
Page 25 Major League Global Enterprise Ltd. Website: www.mediasonicusa.com Email: support@mediasonicusa.com Support Forum: www.forum.mediasonic.ca Made in China...
